HEADLAMP (GS500FK4/K5/K6)

GS500F 2004 (K4) USA (E03)

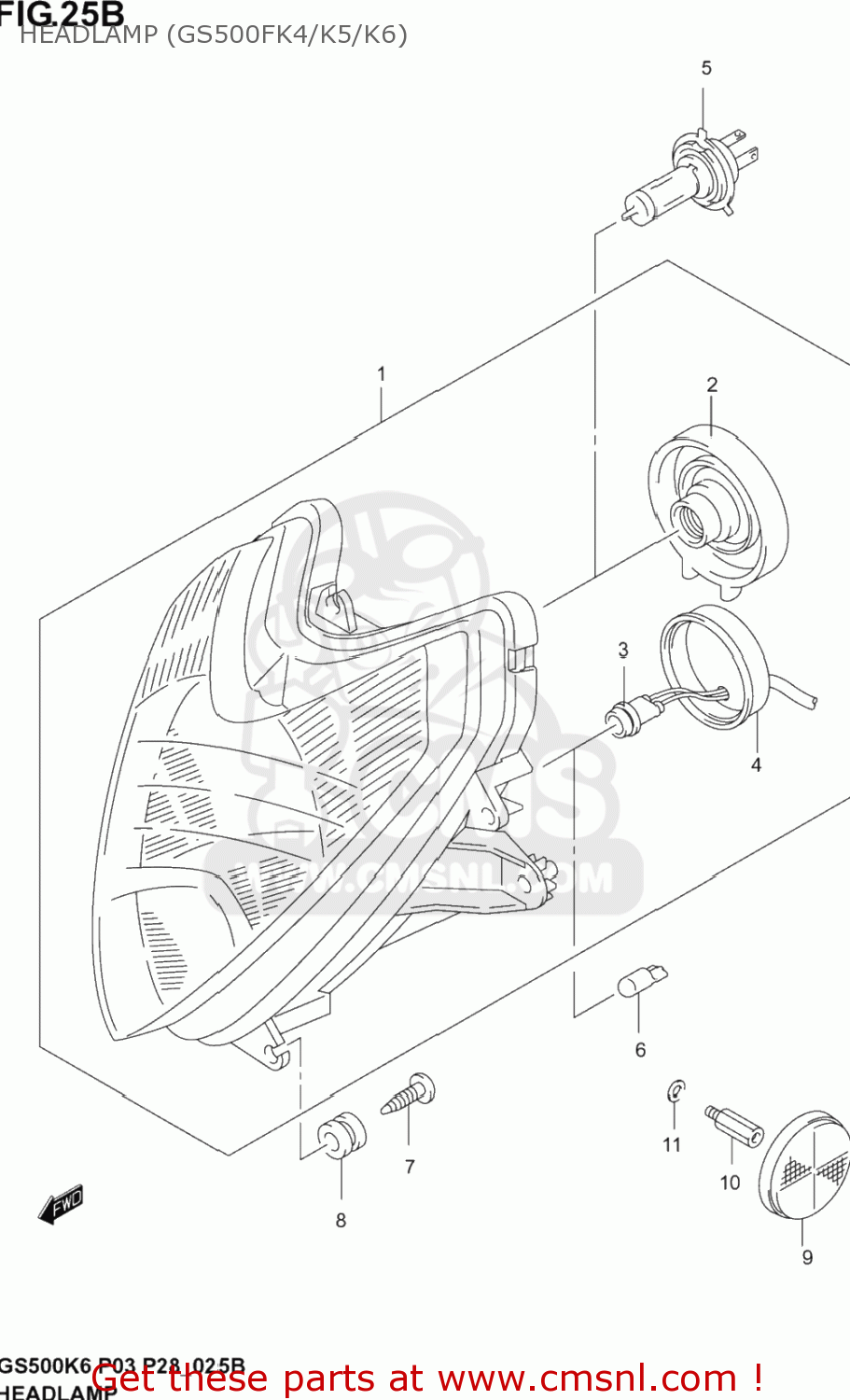

Headlamp (gs500fk4/k5/k6) diagram GS500F 2004 (K4) USA (E03)

HEADLAMP (GS500FK4/K5/K6) GS500F 2004 (K4) USA (E03)
HEADLAMP (GS500FK4/K5/K6) GS500F 2004 (K4) USA (E03)
HEADLAMP (GS500FK4/K5/K6) GS500F 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3510001DB0999
ref: 1
HEADLAMP ASSY
3510001DB0999
€ 116.00
2
351730BE10
ref: 2
COVER, SOCKET
351730BE10
€ 4.50
3
361680BE00
ref: 3
CORD ASSY
€ 7.00
3
351730BE20
ref: 3
COVER
351730BE20
€ 4.00
5
0947112060
ref: 5
BULB(12V60/55W,H4)
0947112060
€ 8.00
6
0947112216
ref: 6
BULB(12V5W)
0947112216
€ 5.00
7
0913605062
ref: 7
SCREW(5X15)
0913605062
€ 2.50
8
0932009039
ref: 8
CUSHION
0932009039
€ 6.00
9
3595014A00
ref: 9
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
10
0911905023
ref: 10
BOLT(5X10)
0911905023
€ 7.50
11
D832201055
ref: 11
WASHER
D832201055
€ 2.00
