SIGNAL GENERATOR

GS500F 2004 (K4) USA (E03)

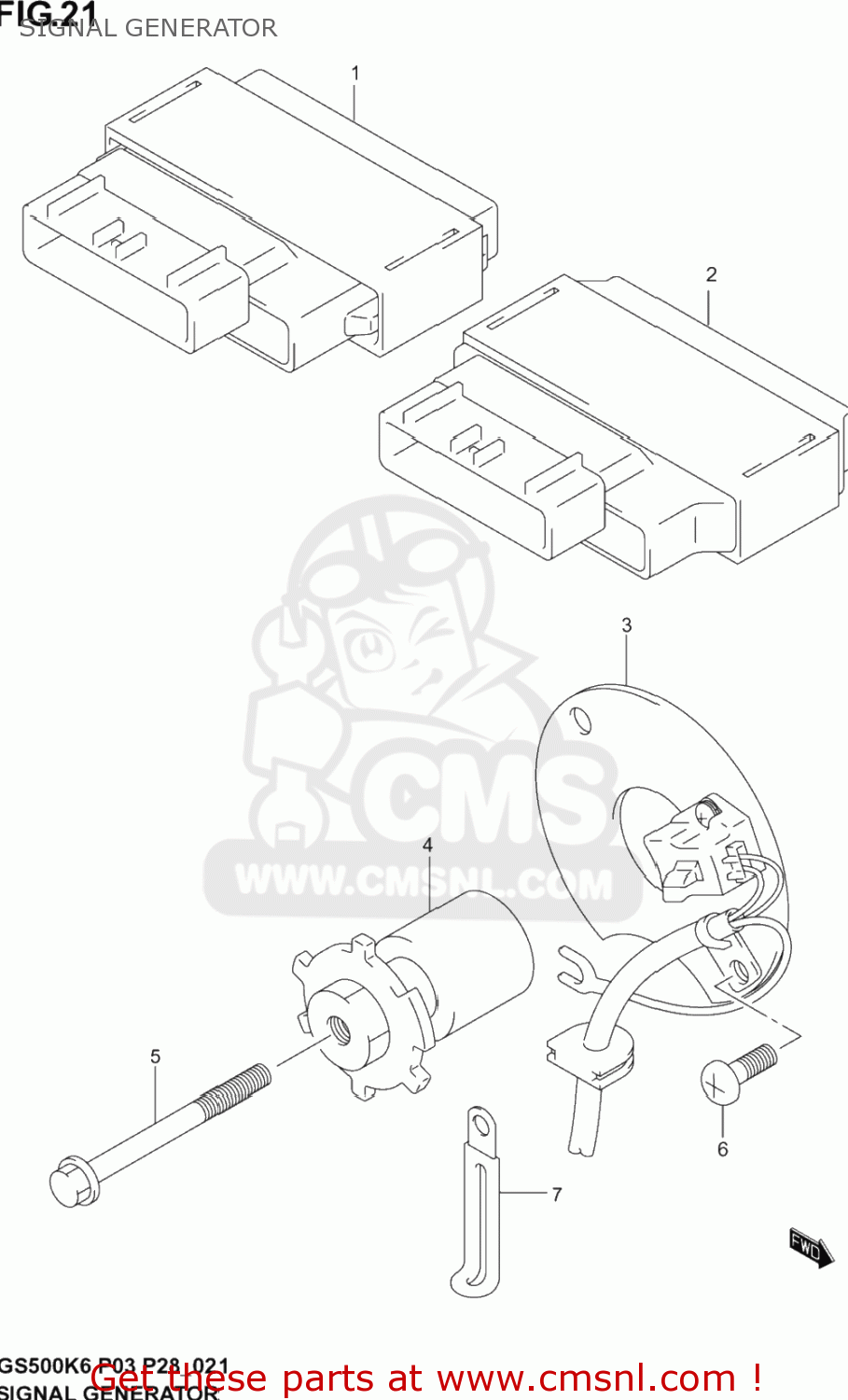

Signal generator diagram GS500F 2004 (K4) USA (E03)

SIGNAL GENERATOR GS500F 2004 (K4) USA (E03)
SIGNAL GENERATOR GS500F 2004 (K4) USA (E03)
SIGNAL GENERATOR GS500F 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3290001D60
ref: 1
IGNITOR ASSY
€ 337.50
2
3290001DB0
ref: 2
IGNITOR ASSY
€ 0.00
3
3311001D00
ref: 3
SIGNAL GENERATOR ASSY
€ 205.50
4
3312001D30
ref: 4
ROTOR,SIGNAL
€ 0.00
5
0910306064
ref: 5
BOLT(6X60)
0910306064
€ 2.50
6
0211205103
ref: 6
02112-0510A
SCREW
0211205103
€ 2.00
7
0940406429
ref: 7
CLAMP(L:45)
€ 2.50
