CLUTCH

GSF1200SA 1996 (T)

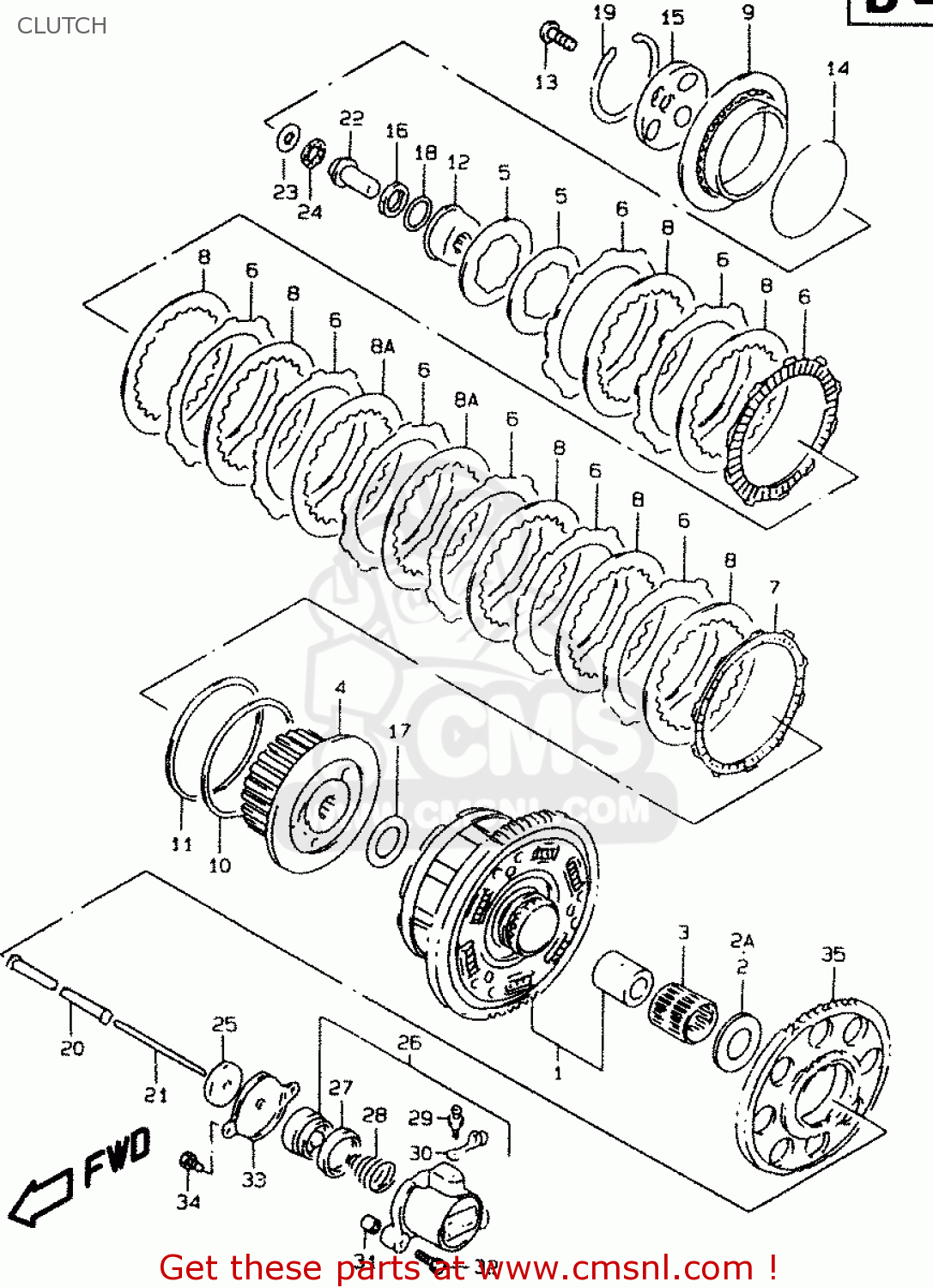

Clutch diagram GSF1200SA 1996 (T)

CLUTCH GSF1200SA 1996 (T)

CLUTCH GSF1200SA 1996 (T)

prices are in EUR

ref

part #

description

quantity

1

2120031861
ref: 1
<-21200-31860

GEAR ASSY,PRI DRIVEN

€ 517.00

2

0916025067
ref: 2
MODEL T

WASHER(25X54X2.5)

€ 9.00

2A

0916025037
ref: 2A
MODEL V/W/X

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141031E20
ref: 4

HUB,CLUTCH SLEEVE

€ 140.50

5

2141331E20
ref: 5

SPRING,CLUTCH

€ 12.50

6

2144131E00
ref: 6

PLATE,CLUTCH DRIVE

€ 21.50

7

2144231E00
ref: 7

PLATE,CLUTCH DRIVE

€ 25.50

8

2145131E00
ref: 8
T:1.6

PLATE,CLUTCH DRIVEN NO.1

€ 7.00

8A

2145131E10
ref: 8A
T:2.0

PLATE,CLUTCH DRIVEN NO.2

€ 7.50

9

2146231E20
ref: 9

DISC,CLUTCH PRESSURE

€ 58.00

10

2147131E20
ref: 10

SEAT,CLUTCH PLATE WAVE WASHER

€ 12.00

11

2147231E20
ref: 11

WASHER,CLUTCH PLATE WAVE

€ 15.00

12

2161131E20
ref: 12

HOLDER,CLUTCH SPRING

€ 39.00

13

2161431E20
ref: 13

SCREW,CLUTCH SPRING HOLDER

€ 3.50

14

2162331E20
ref: 14

SEAT,CLUTCH SPRING

€ 5.50

15

2146340C01
ref: 15

LIFTER,CLUTCH PRESSURE DISC

€ 33.00

16

0915924010
ref: 16

NUT

€ 11.00

17

0916025056
ref: 17
25X50X2.5

WASHER(25X50X2.5)

€ 9.50

18

0916424006
ref: 18
24.2X35X2

WASHER

€ 4.00

19

0938184002
ref: 19

CIRCLIP

€ 10.50

20

2311038B00
ref: 20

ROD,CLUTCH PUSH,R

€ 19.00

21

2311131301
ref: 21

ROD,CLUTCH PUSH,L

€ 14.50

22

2312131E00
ref: 22

PIECE,CLUTCH PUSH

€ 18.50

23

0916015045
ref: 23
15.5X28X1

WASHER(15.5X28X1)

€ 4.00

24

0926315003
ref: 24
15X28X2

BEARING(15X28X2)

€ 7.00

25

0928506015
ref: 25
6X34X5.5

SEAL,OIL(6X34X5.5)

€ 8.50

26

2316006B02
ref: 26

CYLINDER,CLUTCH RELEASE

€ 122.50

27

2316306B00
ref: 27

CUP

€ 5.50

28

2316405A00
ref: 28

SPRING,CLUTCH CYLINDER

€ 3.50

29

5912101A00
ref: 29

BLEEDER

€ 8.50

30

5912201A00
ref: 30

CAP,BLEEDER

€ 4.50

31

0421109129
ref: 31

PIN

€ 2.00

32

0713006253
ref: 32

BOLT,CL.COVER

€ 3.00

33

2311746E00
ref: 33

COVER,CLUTCH RELEASE CYLINDER

€ 6.50

34

0211206103
ref: 34

SCREW

€ 1.50

35

2272127A03
ref: 35
<-22721-27A02

GEAR,GENERATOR DRIVE

€ 230.00

all assemblies
