REAR SWINGING ARM (GSF1200T/V/W/X/ST/SV/SW/SX)

GSF1200SA 1996 (T)

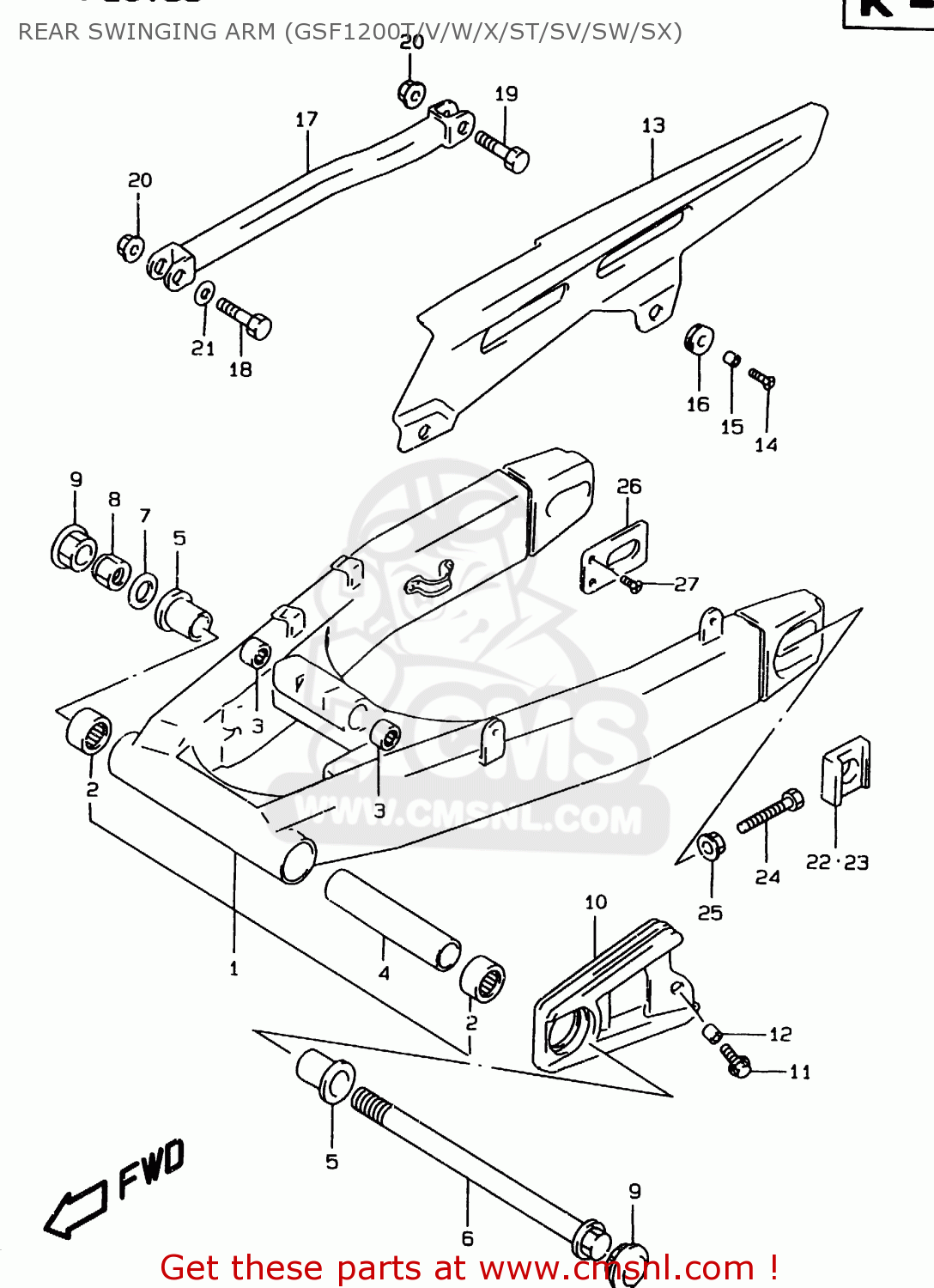

Rear swinging arm (gsf1200t/v/w/x/st/sv/sw/sx) diagram GSF1200SA 1996 (T)

REAR SWINGING ARM (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200SA 1996 (T)

REAR SWINGING ARM (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200SA 1996 (T)

prices are in EUR

ref

part #

description

quantity

1

6100027E10
ref: 1

SWINGINGARM ASSY,RR

€ 1,685.00

2

0926325059
ref: 2

BEARING(25X33X35)

€ 35.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

6128231E00
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 19.00

5

6125131E00
ref: 5

SPACER,RR SWGARM PIVOT BERRING

€ 16.00

6

6121131E00
ref: 6

SHAFT,RR SWINGINGARM PIVOT

€ 53.00

7

0916018030
ref: 7

WASHER(18.5X28X2.6)

€ 2.50

8

0915918007
ref: 8

NUT

€ 14.00

9

4358521E00
ref: 9

CAP,FRAME PIVOT

€ 9.00

10

6127327E11
ref: 10

BUFFER,CHAIN TOUCH DEFENSE

€ 42.00

11

0911606111
ref: 11

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

12

0918006283
ref: 12

SPACER(6.5X10X7)

€ 2.00

13

6131127E00
ref: 13

CASE,CHAIN

€ 159.50

14

0913606011
ref: 14

SCREW (6X16)

€ 2.50

15

0918006092
ref: 15

SPACER(6.2X8.3X6.1)

€ 4.00

16

0932008013
ref: 16

CUSHION

€ 4.00

17

6431027E00019
ref: 17

TORQUELINK,RR

€ 33.50

18

0911110051
ref: 18

BOLT(10X39)

€ 8.50

19

0910310019
ref: 19

BOLT(10X37)

€ 2.50

20

0831931107
ref: 20

NUT

€ 3.00

21

0916012011
ref: 21

WASHER(12.5X20X1)

€ 1.50

22

6144627C20
ref: 22
RH

WASHER,CHAIN ADJUSTER

€ 23.50

23

6144617E10
ref: 23
LH

WASHER,CHAIN ADJUSTER

€ 28.50

24

0910008287
ref: 24

BOLT(8X50)

€ 3.00

25

0831610083
ref: 25

NUT

€ 3.00

26

6112417E10
ref: 26

PLATE,RR SWING ARM BRKT

€ 4.50

27

0214206103
ref: 27

SCREW 6X10

€ 2.00
