WIRING HARNESS (GSF1200T/V/W/X/ST/SV/SW/SX)
GSF1200SA 1996 (T)

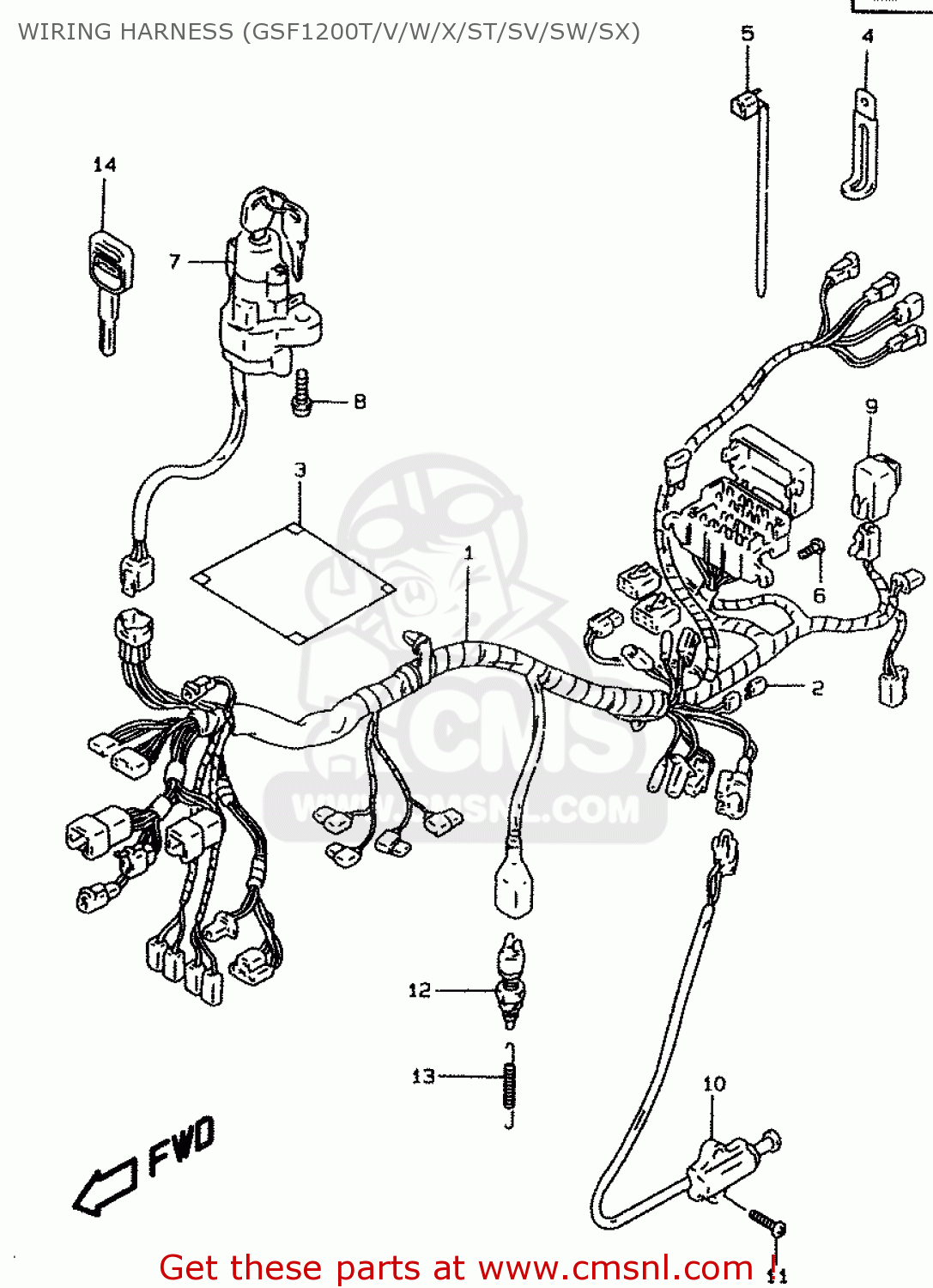

Wiring harness (gsf1200t/v/w/x/st/sv/sw/sx) diagram GSF1200SA 1996 (T)
WIRING HARNESS (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200SA 1996 (T)
×
prices are in EUR
ref
part #
description
quantity
1
3661027E10
ref: 1
GSF1200ST/SV/SW/SX
HARNESS,WIRING
€ 545.00
1
3661027E60
ref: 1
GSF1200T/V/W/X
HARNESS, WIRING
€ 411.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
3661815D20
ref: 3
COVER,WIRING HARNESS
€ 12.00
4
0940406432
ref: 4
<-09404-06431
CLAMP(L:65)
€ 2.50
4
0940408205
ref: 4
<-09404-08417
CLAMP(L:45 T:0.6)
€ 3.00
4
0940408206
ref: 4
<-09404-08418
CLAMP(L:65 T:0.8)
€ 3.50
4
0940408207
ref: 4
<-09404-08419
CLAMP(L:80)
€ 3.00
5
0940714403
ref: 5
<-09407-11401
CLAMP(L:125)
€ 2.50
5
0940718402
ref: 5
CLAMP(L:165)
€ 2.50
6
0214206123
ref: 6
SCREW 6X12
€ 2.00
7
3710033E01
ref: 7
LOCK ASSY,STEERING
€ 170.00
7
3710033E11
ref: 7
E24
LOCK ASSY,STEERING
€ 160.00
8
0913908016
ref: 8
BOLT(8X20)
€ 3.50
9
3874026E00
ref: 9
RELAY ASSY
€ 32.50
10
3784044X50
ref: 10
SWITCH ASSY,SIDE STAND
€ 75.50
11
0214206203
ref: 11
SCREW
€ 2.00
12
3774024A00
ref: 12
SWITCH ASSY,STOP LAMP
€ 20.50
13
0944306054
ref: 13
SPRING
€ 2.50
14
3714633E00
ref: 14
OPT
KEY,BLANK
€ 13.00
