STEERING STEM (GSF1200SAV/SAW/SAX)
GSF1200SA 1996 (T)

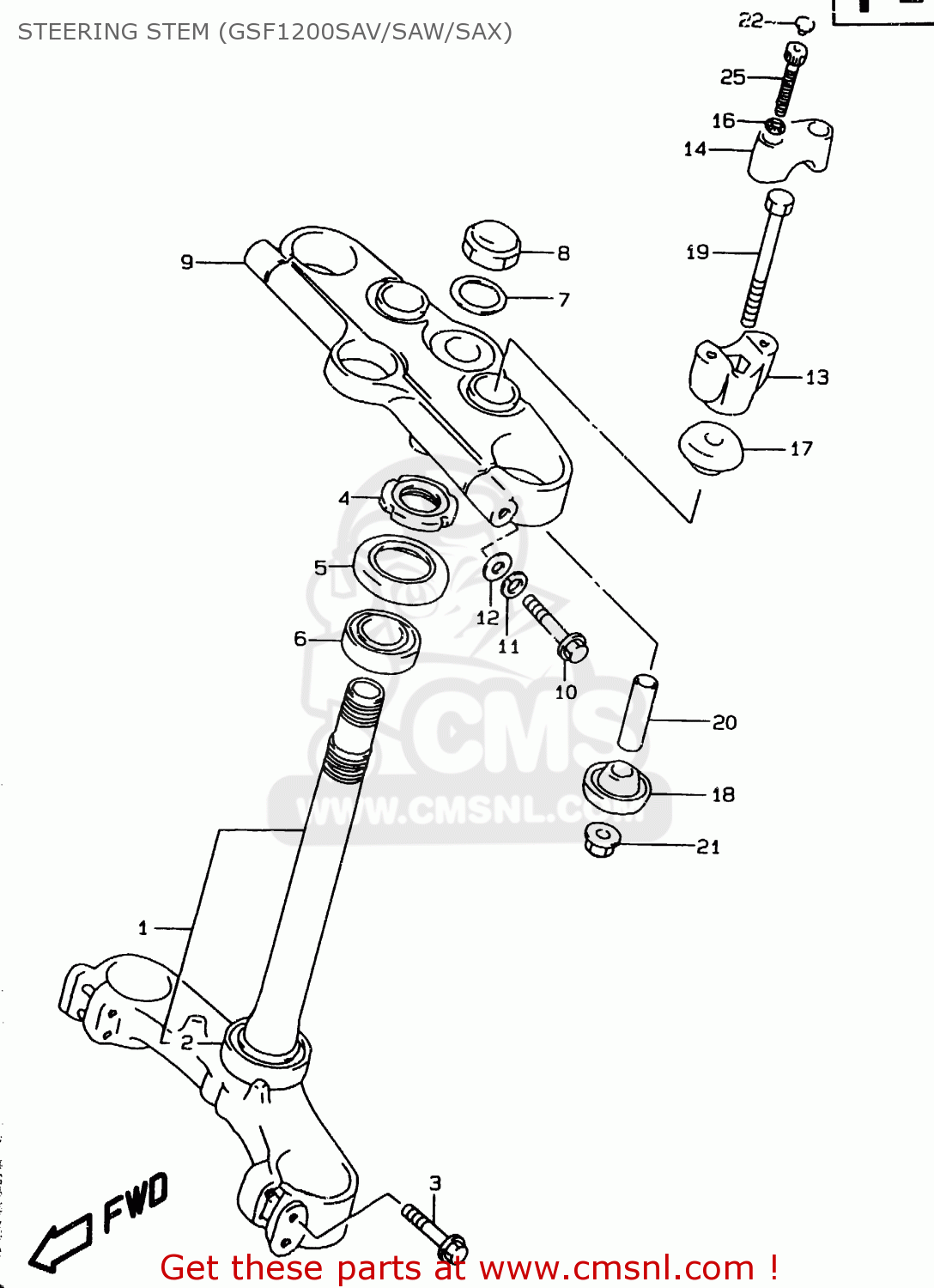

Steering stem (gsf1200sav/saw/sax) diagram GSF1200SA 1996 (T)
STEERING STEM (GSF1200SAV/SAW/SAX) GSF1200SA 1996 (T)
×
prices are in EUR
ref
part #
description
quantity
1
5141027E01
ref: 1
STEM,STEERING
€ 534.00
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3
0155008407
ref: 3
BOLT
€ 3.50
4
5163128000
ref: 4
NUT,STEERING STEM(25X44X10)
€ 12.50
5
5164349002
ref: 5
SEAL,STEERING UPR DUST
€ 7.50
6
0926525019
ref: 6
BEARING(25X47X15)
€ 48.50
7
5135624B01
ref: 7
WASHER(22.5X32X1.6)
€ 3.00
8
5135324B00
ref: 8
NUT,CAP
€ 21.50
9
5131127E00
ref: 9
HEAD,STEERING STEM
€ 423.50
10
0155008407
ref: 10
BOLT
€ 3.50
11
0832101087
ref: 11
WASHER,LOCK
€ 2.00
12
0832201087
ref: 12
WASHER
€ 2.00
13
5622127E00
ref: 13
HOLDER,HANDLE UNDER
€ 48.50
14
5621127E00
ref: 14
HOLDER,HANDLE UPR
€ 33.00
15
0713008307
ref: 15
BOLT
€ 4.50
16
0916408015
ref: 16
WASHER
€ 3.00
17
5624127E00
ref: 17
CUSHION,RUBBER UPR
€ 32.50
18
5624228C60
ref: 18
CUSHION,RUBBER UNDER
€ 22.50
19
5632127E00
ref: 19
BOLT,HANDLE HOLDER(10X70)
€ 6.00
20
5624342A00
ref: 20
SPACER
€ 6.00
21
0831931107
ref: 21
NUT
€ 3.00
22
0925006011
ref: 22
CAP(OD:11)
€ 2.50
