MUFFLER

GSF1200SA 1996 (T)

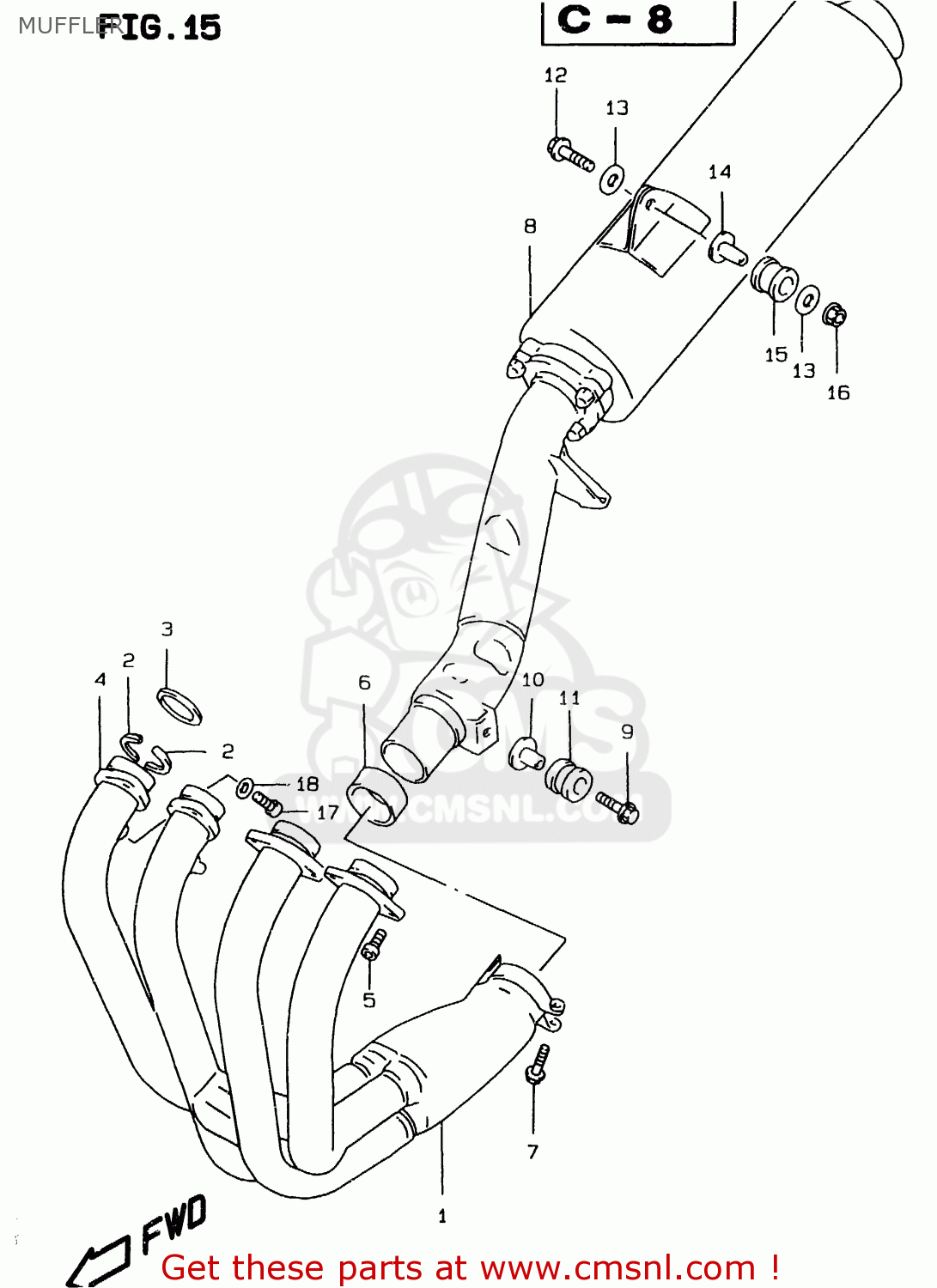

Muffler diagram GSF1200SA 1996 (T)

MUFFLER GSF1200SA 1996 (T)

MUFFLER GSF1200SA 1996 (T)

prices are in EUR

ref

part #

description

quantity

1

1410027E00
ref: 1

EXHAUST

€ 985.00

2

1415527A00
ref: 2
RH, LH

PLATE,EXHAUST PIPE

€ 3.50

3

1418118C00
ref: 3

GASKET,EXHAUST (NAS)

€ 6.50

4

1418226D00
ref: 4
RH, LH

CLAMP,EXHAUST PIPE

€ 21.00

5

0713008257
ref: 5

BOLT

€ 3.50

6

1477127E00
ref: 6

CONNECTOR,MUFFLER

€ 29.00

7

0155008403
ref: 7

BOLT

€ 3.50

8

1431027E00H01
ref: 8

BODY,MUFFLER

€ 1,306.50

9

0911808068
ref: 9

BOLT 8X40

€ 7.50

10

0918008152
ref: 10

SPACER(8.6X12X24.2)

€ 6.00

11

0932012048
ref: 11

CUSHION

€ 5.00

12

0155008457
ref: 12

BOLT

€ 4.00

13

0916008106
ref: 13
MODEL T/V

WASHER (8.1X33X1.6)

€ 3.00

13

0916008140
ref: 13
MODEL W/X

WASHER (8.5X33X1.6)

€ 3.00

14

0918008156
ref: 14

SPACER(8.6X12X27.1)

€ 6.50

15

0932012049
ref: 15

CUSHION

€ 9.00

16

0836125088
ref: 16

NUT

€ 2.50

17

0910606076
ref: 17

BOLT(6X10)

€ 2.50

18

0916006055
ref: 18

WASHER(7X12X1)

€ 2.00
