CRANKCASE COVER

GSF1200SA 1996 (T)

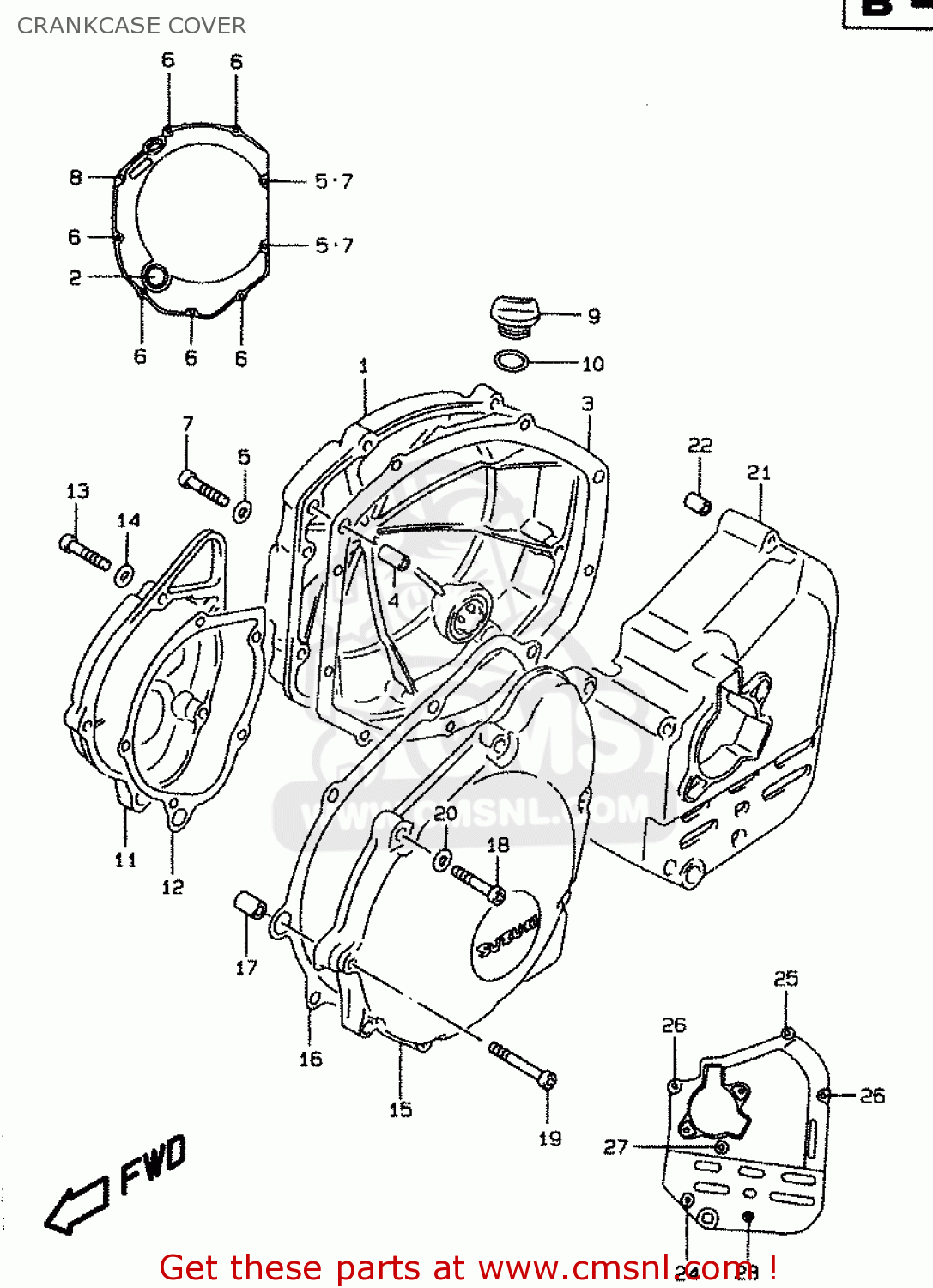

Crankcase cover diagram GSF1200SA 1996 (T)

CRANKCASE COVER GSF1200SA 1996 (T)

CRANKCASE COVER GSF1200SA 1996 (T)

prices are in EUR

ref

part #

description

quantity

1

1134026E20
ref: 1

COVER,CLUTCH

€ 237.00

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148227A20
ref: 3

GASKET,CL COVER (NAS)

€ 18.00

4

0421109189
ref: 4

PIN

€ 2.00

5

0916806024
ref: 5

GASKET(5.8X11X1.2) (NAS)

€ 2.00

6

0713006253
ref: 6

BOLT,CL.COVER

€ 3.00

7

0713006303
ref: 7

BOLT

€ 3.00

8

0713006353
ref: 8

BOLT

€ 3.50

9

0925920008
ref: 9

PLUG

€ 6.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.00

11

1138126E20
ref: 11

COVER,SIGNAL GENERATOR

€ 60.00

12

1149127A30
ref: 12

GASKET,SIGNAL GEN COVER (NAS)

€ 8.00

13

0910606082
ref: 13

BOLT(6X22)

€ 3.00

14

0916806024
ref: 14

GASKET(5.8X11X1.2) (NAS)

€ 2.00

15

1135126E20
ref: 15

COVER,STARTER GEAR

€ 156.50

16

1148348B20
ref: 16

GASKET,STARTER GEAR COVER (NAS)

€ 13.00

17

0920611017
ref: 17

PIN(8.4X11X20)

€ 6.50

18

0713006253
ref: 18

BOLT,CL.COVER

€ 3.00

19

0713006403
ref: 19

BOLT

€ 3.50

20

0916806024
ref: 20

GASKET(5.8X11X1.2) (NAS)

€ 2.00

21

1136027E00
ref: 21

COVER COMP,ENGINE SPROCKET

€ 217.00

22

0421109129
ref: 22

PIN

€ 2.00

23

0713006453
ref: 23

BOLT

€ 2.50

24

0713006353
ref: 24

BOLT

€ 3.50

25

0713006553
ref: 25

BOLT

€ 2.50

26

0713006703
ref: 26

BOLT

€ 4.00

27

0713006753
ref: 27

BOLT

€ 3.00
