CRANKCASE

GSF1200SA 1996 (T)

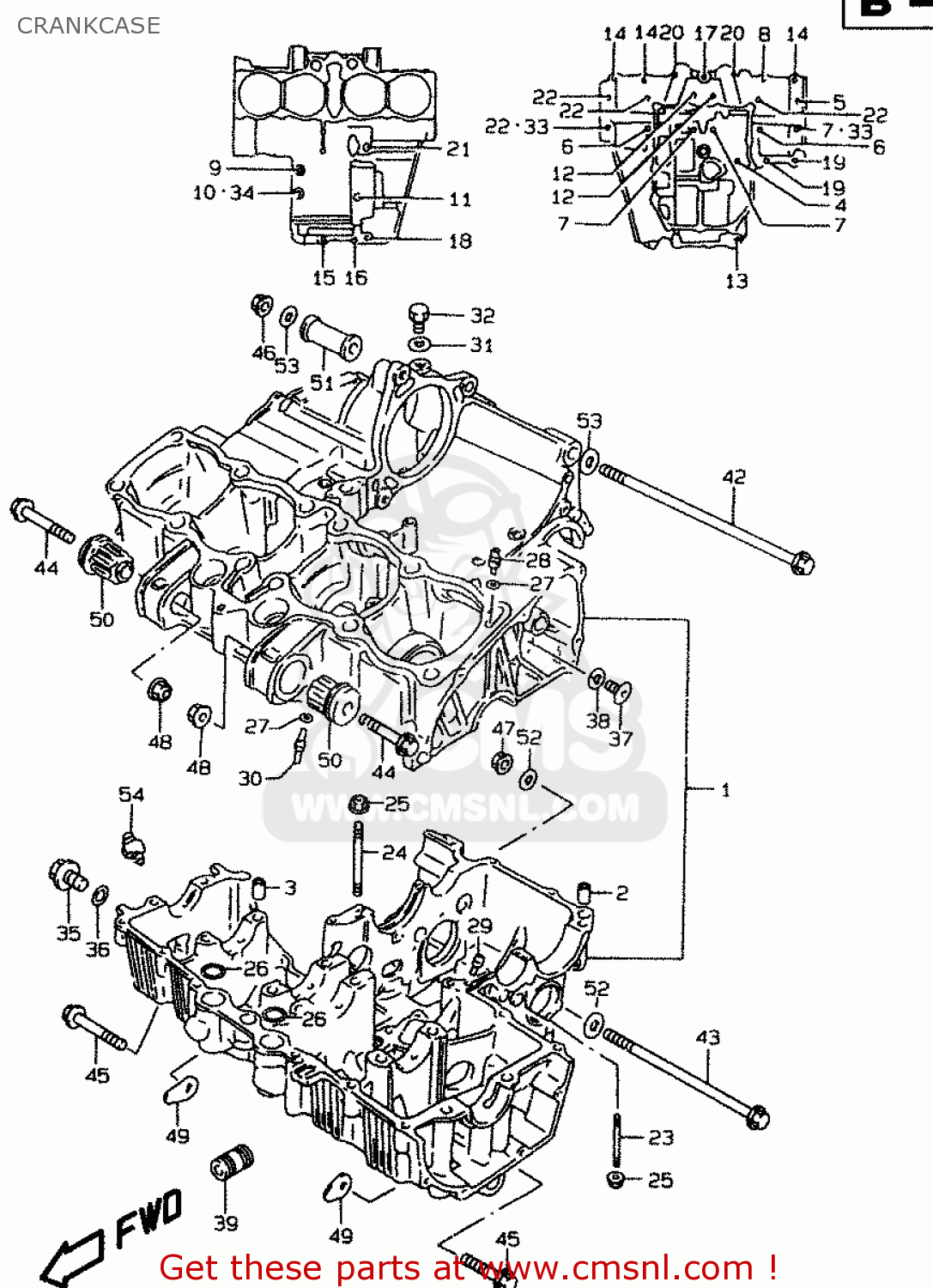

Crankcase diagram GSF1200SA 1996 (T)

CRANKCASE GSF1200SA 1996 (T)
CRANKCASE GSF1200SA 1996 (T)
CRANKCASE GSF1200SA 1996 (T)
prices are in EUR
ref
part #
description
quantity
1
1130127830
ref: 1
CRANKCASE SET
1130127830
€ 2,213.00
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611017
ref: 3
PIN(8.4X11X20)
0920611017
€ 6.50
4
0910306163
ref: 4
BOLT(6X105)
0910306163
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
0910308182
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
0910308098
€ 3.00
8
0155006353
ref: 8
BOLT
0155006353
€ 2.50
9
0713006403
ref: 9
BOLT
0713006403
€ 3.50
10
0712006553
ref: 10
BOLT
0712006553
€ 3.00
11
0713006653
ref: 11
BOLT
0713006653
€ 4.00
12
0713008653
ref: 12
BOLT
€ 3.50
13
0155008603
ref: 13
BOLT
€ 3.50
14
0155006353
ref: 14
BOLT
0155006353
€ 2.50
15
0155006403
ref: 15
BOLT
0155006403
€ 2.00
16
0155006403
ref: 16
BOLT
0155006403
€ 2.00
17
0155006503
ref: 17
BOLT
0155006503
€ 2.00
18
0155006603
ref: 18
BOLT
0155006603
€ 2.50
19
0155006553
ref: 19
BOLT, HYDRAULIC UNIT NO.2
0155006553
€ 2.00
20
0155006703
ref: 20
BOLT
€ 2.50
21
0155006803
ref: 21
BOLT
€ 2.50
22
0910308066
ref: 22
BOLT(8X95)
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25
0831610063
ref: 25
NUT
0831610063
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
0928021008
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
0928004004
€ 2.00
28
0949314002
ref: 28
JET,AIR
0949314002
€ 8.00
29
0949324010
ref: 29
JET
0949324010
€ 12.00
30
0949326007
ref: 30
JET(13)
0949326007
€ 13.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
0924712103
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
34
0916806018
ref: 34
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
35
0924816003
ref: 35
PLUG
0924816003
€ 16.50
36
0928017002
ref: 36
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
37
0924814005
ref: 37
MODEL T
PLUG,14X12
0924814005
€ 5.00
37
0924814010
ref: 37
MODEL V/W/X
PLUG
0924814010
€ 5.00
38
0916814002
ref: 38
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
39
1659106B00
ref: 39
UNION,OIL STAND
1659106B00
€ 6.00
40
1222848B000E0
ref: 40
RH, SEE ILLUSTRATION
BEARING,CRANK THRUST(GREEN)
1222848B000E0
€ 8.00
41
1222848B000A0
ref: 41
LH, SEE ILLUSTRATION
BEARING,CRANK THRUST(PINK)
1222848B000A0
€ 7.50
41
1222848B000B0
ref: 41
BEARING,CRANK THRUST(BROWN)
1222848B000B0
€ 7.50
41
1222848B000C0
ref: 41
BEARING,CRANK THRUST(RED)
1222848B000C0
€ 7.50
41
1222848B000D0
ref: 41
BEARING,CRANK THRUST(YELLOW)
1222848B000D0
€ 7.50
41
1222848B000E0
ref: 41
BEARING,CRANK THRUST(GREEN)
1222848B000E0
€ 8.00
41
1222848B000F0
ref: 41
BEARING,CRANK THRUST(BLUE)
1222848B000F0
€ 7.50
41
1222848B000G0
ref: 41
BEARING,CRANK THRUST(ORANGE)
1222848B000G0
€ 7.50
41
1222848B000H0
ref: 41
BEARING,CRANK THRUST(BLACK)
1222848B000H0
€ 7.50
42
0910310136
ref: 42
BOLT(10X180)
0910310136
€ 11.50
43
0910012053
ref: 43
BOLT
€ 2.50
44
0910310289
ref: 44
BOLT,ENGINE MOUNTING (10X5)
€ 4.50
45
0155010753
ref: 45
BOLT 10X57
€ 3.00
46
0915910058
ref: 46
NUT
0915910058
€ 4.00
47
0831931128
ref: 47
NUT 12MM
0831931128
€ 4.00
48
0831610103
ref: 48
NUT
0831610103
€ 2.00
49
0915910020
ref: 49
NUT
0915910020
€ 7.50
50
1168106B00
ref: 50
BUSH,ENGINE MOUNTING
1168106B00
€ 26.00
51
1161020C00
ref: 51
SPACER,ENGINE MOUNT(L27)
1161020C00
€ 10.00
52
0832201123
ref: 52
WASHER
€ 2.00
53
0832201103
ref: 53
WASHER
0832201103
€ 2.50
54
3782033D00
ref: 54
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
