FRONT WHEEL (GSF1200SAV/SAW/SAX)
GSF1200SA 1996 (T)

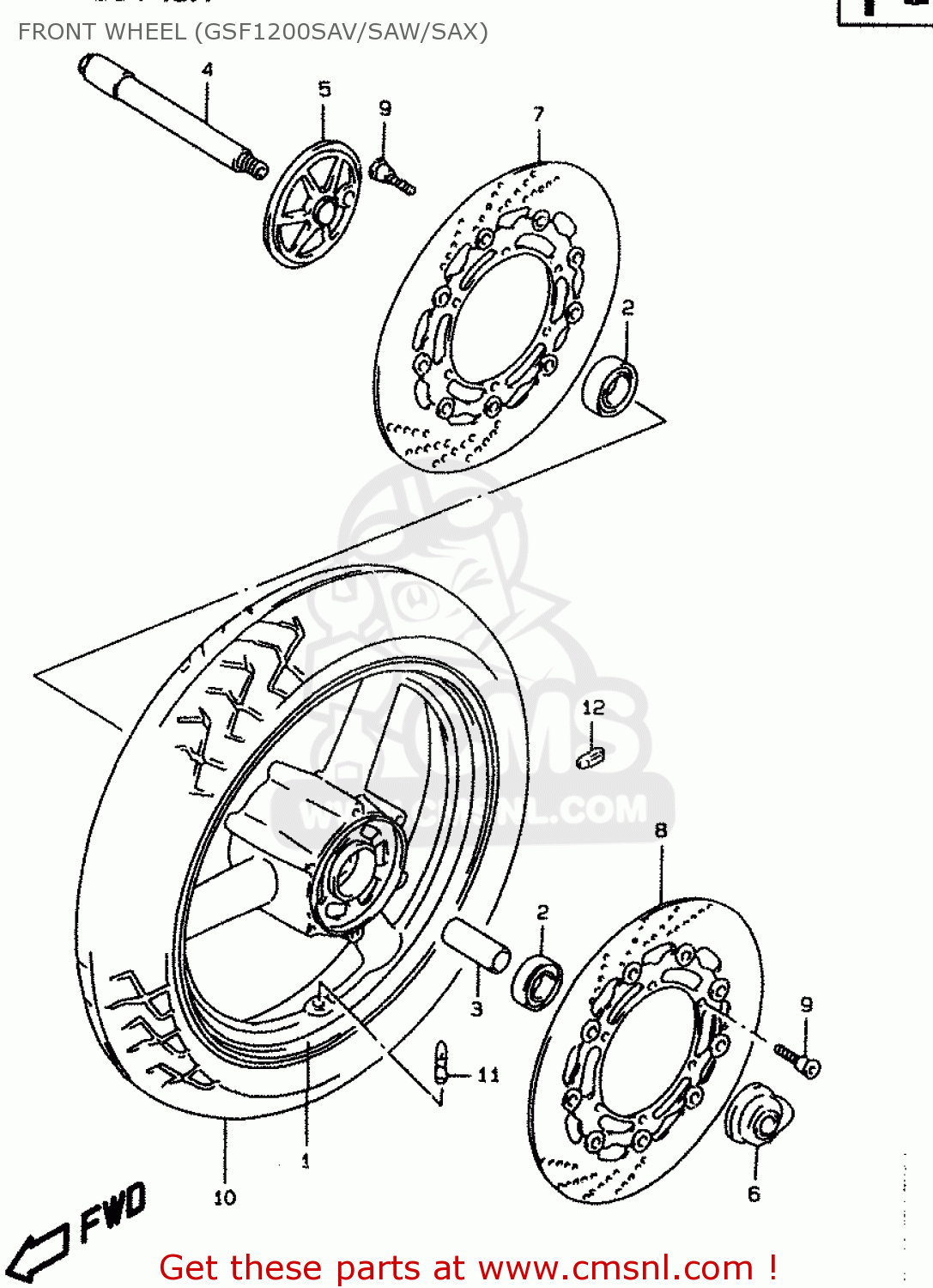

Front wheel (gsf1200sav/saw/sax) diagram GSF1200SA 1996 (T)
FRONT WHEEL (GSF1200SAV/SAW/SAX) GSF1200SA 1996 (T)
×
prices are in EUR
ref
part #
description
quantity
1
541002781035W
ref: 1
WHEEL SET,FRONT (17XMT3)
€ 654.50
2
0812362047
ref: 2
BEARING
€ 17.00
3
0918020103
ref: 3
SPACER(20.8X27.2X74)
€ 31.50
4
5471127E50
ref: 4
AXLE,FR
€ 94.00
5
5572027E50
ref: 5
PANEL,SPEED SENSOR FR
€ 274.00
6
5460017C01
ref: 6
BOX ASSY,SPEEDOMETER GEAR
€ 139.00
7
5921027E50
ref: 7
DISC,FR BRAKE,R
€ 363.00
8
5922027E50
ref: 8
DISC,FR BRAKE,L
€ 363.00
9
0910608125
ref: 9
BOLT 8X33
€ 6.00
10
5511027E30
ref: 10
TIRE,FRONT 120/70 ZR17
€ 0.00
11
4313024A00
ref: 11
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
12
5541100A00
ref: 12
BALANCER,WHEEL (10G)
€ 6.50
12
5541200A01
ref: 12
BALANCER,WHEEL (20G)
€ 7.00
