FOOTREST (MODEL V/W/X)

GSF1200SA 1996 (T)

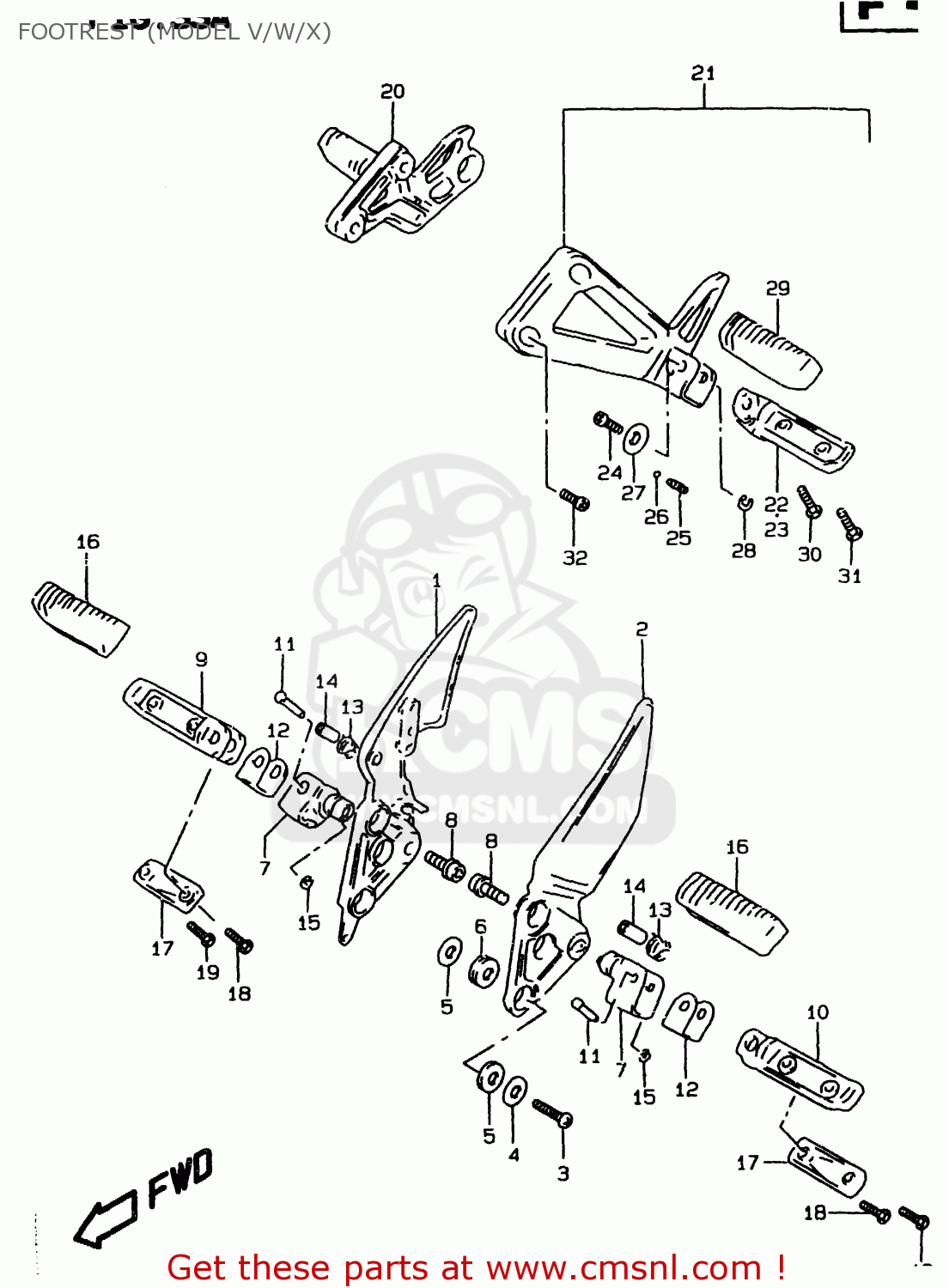

Footrest (model v/w/x) diagram GSF1200SA 1996 (T)

FOOTREST (MODEL V/W/X) GSF1200SA 1996 (T)

FOOTREST (MODEL V/W/X) GSF1200SA 1996 (T)

prices are in EUR

ref

part #

description

quantity

1

4351127E50
ref: 1

BRACKET,FRONT FOOTREST

€ 218.00

2

4352127E50
ref: 2

BRACKET,FRONT FOOTREST

€ 218.00

3

0910608134
ref: 3

BOLT(8X28)

€ 4.00

4

0916008131
ref: 4

WASHER (8.5X24X1.6)

€ 2.00

5

0916112009
ref: 5

WASHER(12.6X24X1.9)

€ 4.50

6

0931908036
ref: 6

BUSH(12X20X16)

€ 23.50

7

4353027E00
ref: 7

HOLDER,FOOTREST

€ 56.50

8

0910610064
ref: 8

BOLT(10X28)

€ 4.50

9

4351140C00
ref: 9

BAR,FOOTREST,R

€ 37.50

10

4352140C00
ref: 10

BAR,FOOTREST,L

€ 37.50

11

0920808010
ref: 11

PIN(8X33.2)

€ 3.00

12

4357046E20
ref: 12

CUSHION,FR FOOTREST

€ 18.50

13

0944818022
ref: 13

SPRING

€ 3.50

14

0918008149
ref: 14

SPACER(8.1X12X22)

€ 7.00

15

0833211063
ref: 15

E.RING

€ 2.00

16

4355040C11
ref: 16

RUBBER,FOOTREST

€ 16.00

17

4353631E10
ref: 17

BALANCER,FR FOOTREST

€ 30.50

18

0214205303
ref: 18

SCREW

€ 2.50

19

0214205253
ref: 19

SCREW

€ 2.50

20

4360027E50
ref: 20

FOOTREST ASSY,PILLION,R

€ 266.00

21

4370027E50
ref: 21

FOOTREST ASSY,PILLION,L

€ 237.00

22

4361040C00
ref: 22

BAR,PILLION FOOTREST,R

€ 49.00

23

4362040C00
ref: 23

BAR,PILLION FOOTREST,L

€ 49.00

24

4364240C00
ref: 24

BOLT,PILLION FOOTREST

€ 5.50

25

0944005003
ref: 25

SPRING

€ 1.50

26

0611107004
ref: 26

BALL

€ 1.50

27

0916010126
ref: 27

WASHER(10.5X24X1.6)

€ 2.50

28

0833211063
ref: 28

E.RING

€ 2.00

29

4355040C11
ref: 29

RUBBER,FOOTREST

€ 16.00

30

0214205203
ref: 30

SCREW 5X20

€ 2.00

31

0214205163
ref: 31

SCREW

€ 2.50

32

0910608097
ref: 32

BOLT(8X25)

€ 2.50
