OIL PUMP

GSF1200SA 1996 (T)

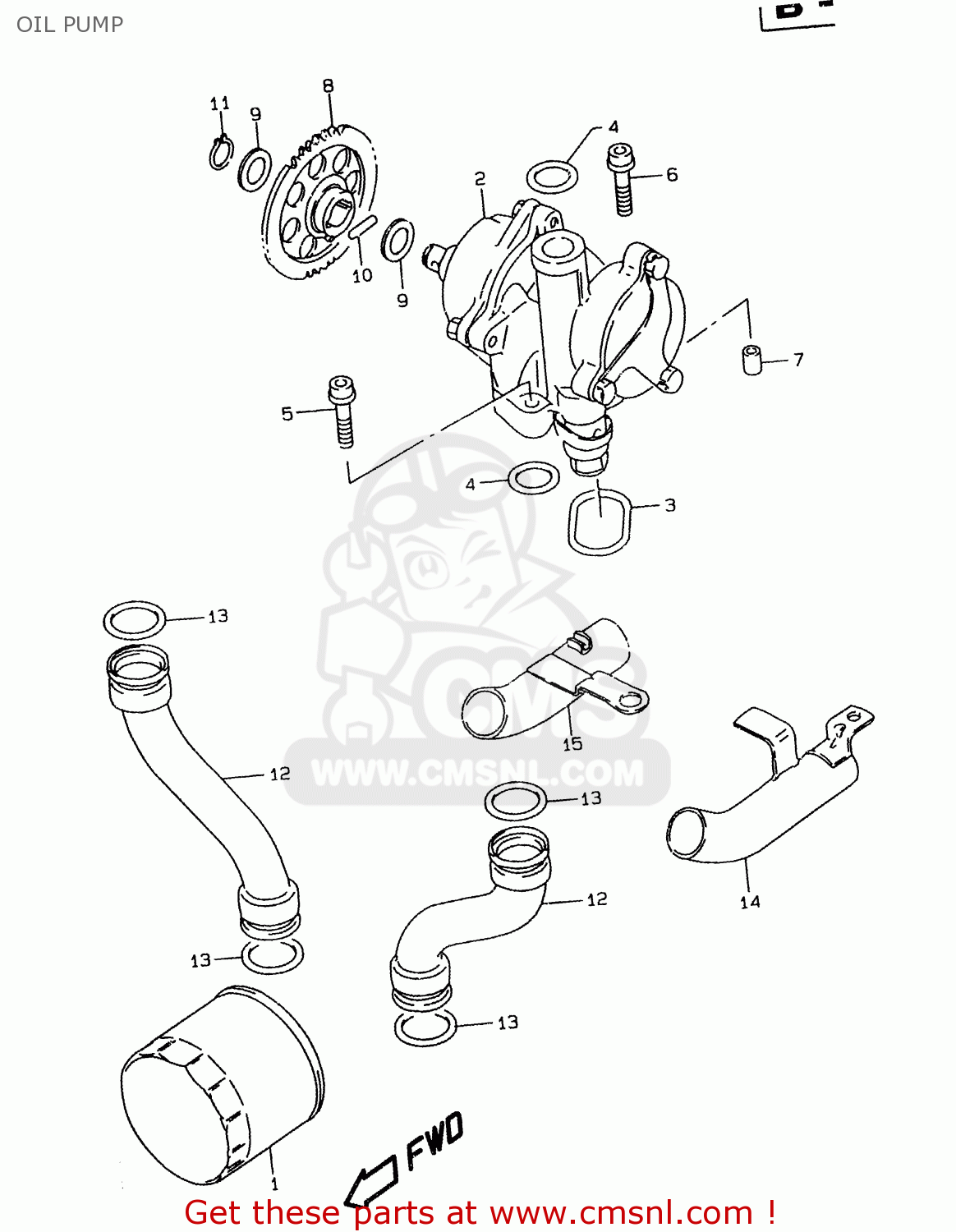

Oil pump diagram GSF1200SA 1996 (T)

OIL PUMP GSF1200SA 1996 (T)

OIL PUMP GSF1200SA 1996 (T)

prices are in EUR

ref

part #

description

quantity

1

1651006B01
ref: 1
MODEL T/V

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

1

1651034E00
ref: 1
MODEL W/X

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

2

1640006B20
ref: 2

PUMP ASSY,OIL

€ 348.50

3

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

4

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

5

0713006303
ref: 5
MODEL T/V/W

BOLT

€ 3.00

5

0910606089
ref: 5
MODEL X

BOLT(6X30)

€ 4.00

6

0713006353
ref: 6
MODEL T/V/W

BOLT

€ 3.50

6

0910606088
ref: 6
MODEL X

BOLT(6X35)

€ 2.50

7

0421109129
ref: 7

PIN

€ 2.00

8

1633219C00
ref: 8

GEAR,OIL PUMP DRIVEN(NT:37)

€ 60.00

9

0822112205
ref: 9

SHIM

€ 1.50

10

0926105006
ref: 10

PIN(5X18)

€ 1.50

11

0833131126
ref: 11

CIRCLIP,12 MM

€ 2.00

12

1648148B01
ref: 12

PIPE,OIL OUTLET

€ 46.00

13

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

14

1653027A02
ref: 14

PIPE,OIL OUTLET UNDER,L

€ 22.00

15

1654027A02
ref: 15

PIPE,OIL OUTLET UNDER,R

€ 23.00
