CYLINDER HEAD COVER

GSF1200SA 1996 (T)

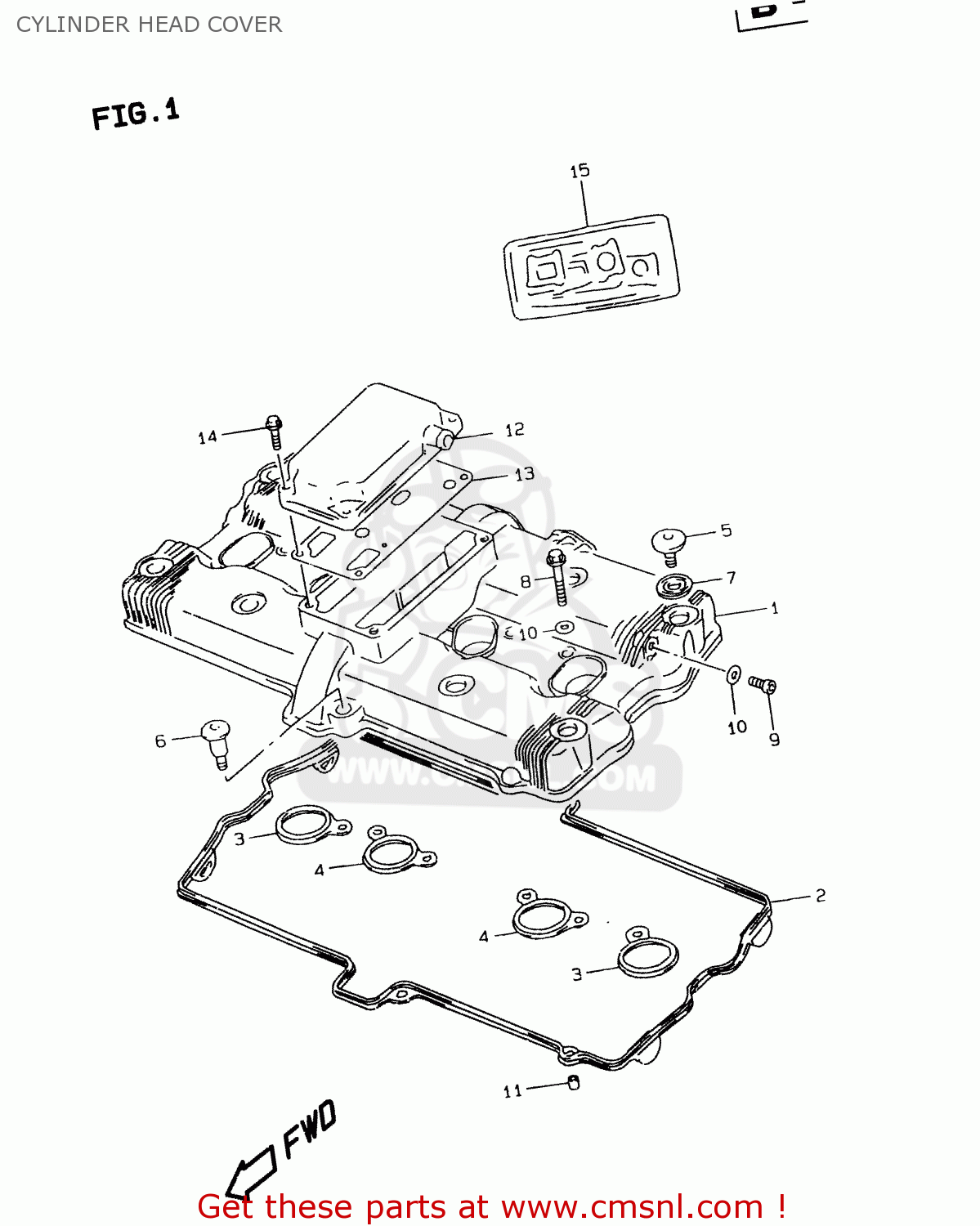

Cylinder head cover diagram GSF1200SA 1996 (T)

CYLINDER HEAD COVER GSF1200SA 1996 (T)
CYLINDER HEAD COVER GSF1200SA 1996 (T)
CYLINDER HEAD COVER GSF1200SA 1996 (T)
prices are in EUR
ref
part #
description
quantity
1
1117127E00
ref: 1
COVER,CYLINDER HEAD
€ 657.50
2
1117306B02
ref: 2
GASKET,CYLINDER HEAD COVER (NAS)
1117306B02
€ 34.50
3
1117827A01
ref: 3
GASKET,HEAD COVER NO.2 (NAS)
1117827A01
€ 5.50
4
1117927A02
ref: 4
GASKET,HEAD COVER NO.3 (NAS)
1117927A02
€ 7.50
5
0910607009
ref: 5
BOLT(7X17.5)
0910607009
€ 4.50
6
0910607010
ref: 6
BOLT(7X31)
0910607010
€ 4.50
7
0916111008
ref: 7
WASHER(10.6X25.5X2.3)
0916111008
€ 4.50
8
0936008009
ref: 8
BOLT,UNION 8X35
0936008009
€ 26.50
9
0713008123
ref: 9
PLUG
€ 2.50
10
0916808008
ref: 10
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
11
0422108129
ref: 11
PIN
0422108129
€ 2.00
12
1117626D00
ref: 12
COVER,BREATHER
1117626D00
€ 35.50
13
1117717E00
ref: 13
GASKET,BREATHER COVER
1117717E00
€ 12.50
14
0155006253
ref: 14
BOLT
0155006253
€ 2.50
15
1140127831
ref: 15
GASKET SET (NAS)
€ 300.00
