HYDRAULIC UNIT (GSF1200SAV/SAW/SAX)

GSF1200SA 1996 (T)

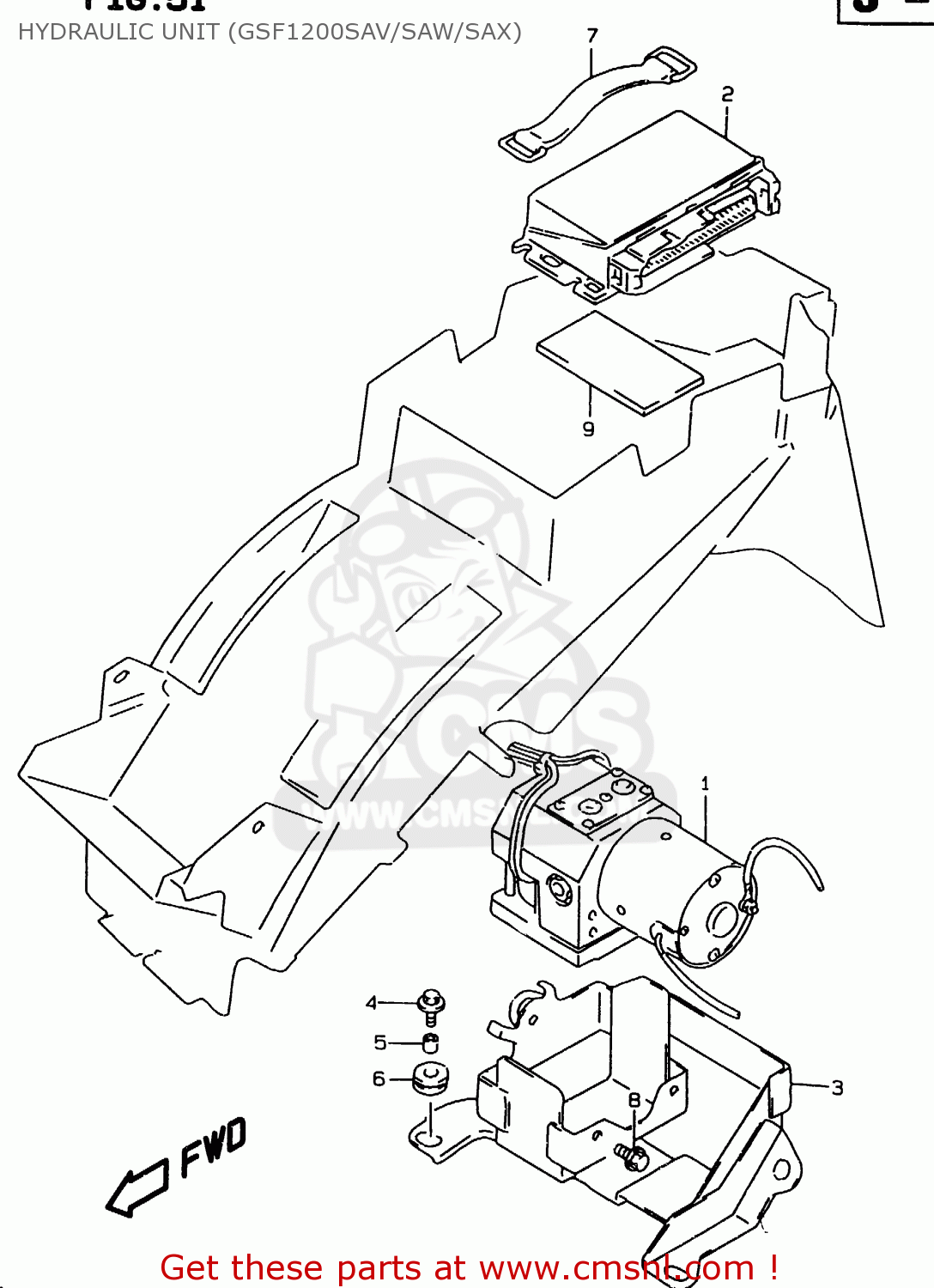

Hydraulic unit (gsf1200sav/saw/sax) diagram GSF1200SA 1996 (T)

HYDRAULIC UNIT (GSF1200SAV/SAW/SAX) GSF1200SA 1996 (T)

HYDRAULIC UNIT (GSF1200SAV/SAW/SAX) GSF1200SA 1996 (T)

prices are in EUR

ref

part #

description

quantity

1

5560027E50
ref: 1

UNIT ASSY,HYDRAULIC ABS

€ 1,961.50

2

5580027E50
ref: 2

ECU ASSY,ABS

€ 1,648.00

3

5566027E50
ref: 3

HOLDER,HYDRAULIC UNIT

€ 59.00

4

0911606111
ref: 4

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

5

0918006259
ref: 5

SPACER(6.5X9X7)

€ 2.50

6

0932008021
ref: 6

CUSHION

€ 4.00

7

0946200015
ref: 7

BAND

€ 7.00

8

0155008123
ref: 8

BOLT

€ 3.50

9

3365208420
ref: 9

PROTECTOR,BATTERY(70X100X6)

€ 6.00
