OIL COOLER

GSF1200SA 1996 (T)

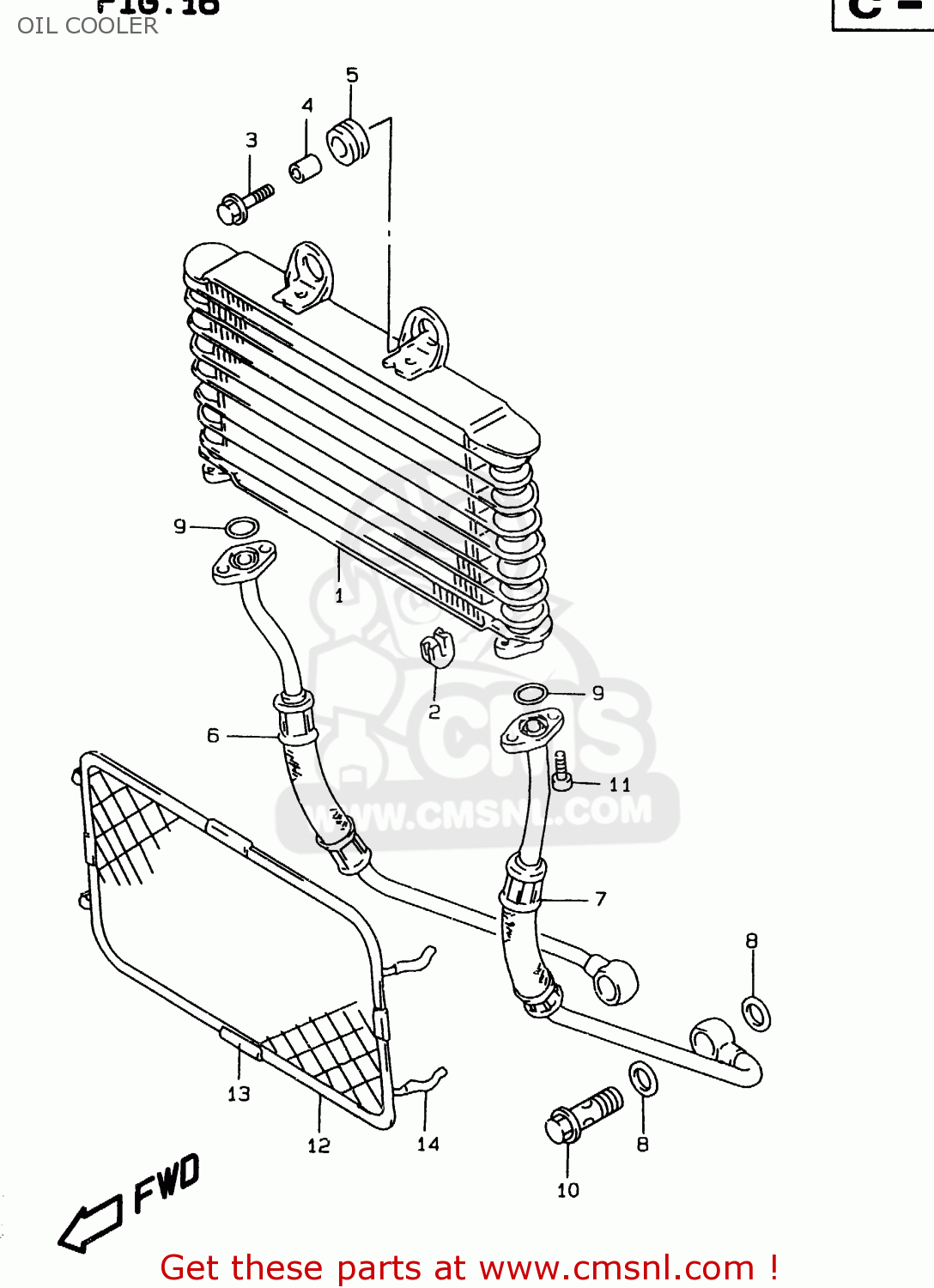

Oil cooler diagram GSF1200SA 1996 (T)

OIL COOLER GSF1200SA 1996 (T)

OIL COOLER GSF1200SA 1996 (T)

prices are in EUR

ref

part #

description

quantity

1

1660027E10
ref: 1

COOLER ASSY,OIL

€ 727.50

2

1662827A00
ref: 2

CUSHION,OIL COOLER NO.2

€ 3.00

3

0911606167
ref: 3
MODEL T

BOLT(6X20)

€ 2.00

3

0911606143
ref: 3
MODEL V/W/X

BOLT 6X20

€ 2.00

4

0918006030
ref: 4
MODEL T

SPACER (6.8X10X10)

€ 2.00

4

0918006310
ref: 4
MODEL V/W/X

SPACER(6.5X10X10)

€ 2.00

5

0932010015
ref: 5

CUSHION

€ 2.50

6

1646027E10
ref: 6

HOSE,OIL COOLER,R

€ 290.00

7

1647027E10
ref: 7

HOSE COMP,OIL COOLER,LEFT

€ 380.50

8

0916816002
ref: 8

GASKET(16X22X2) (NAS)

€ 2.00

9

0928012008
ref: 9

O RING(D:2.4,ID:12.3)

€ 3.00

10

0936016002
ref: 10

BOLT UNION

€ 12.00

11

0713006303
ref: 11

BOLT

€ 3.00

12

1665027E10
ref: 12

GUARD,OIL COOLER

€ 54.50

13

1665427E00
ref: 13

PROTECTOR,CTR

€ 3.00

14

0935230503600
ref: 14
L:600->40

HOSE(3X5X600)

€ 8.00
