WIRING HARNESS (GSF1200SAV/SAW/SAX)
GSF1200SA 1996 (T)

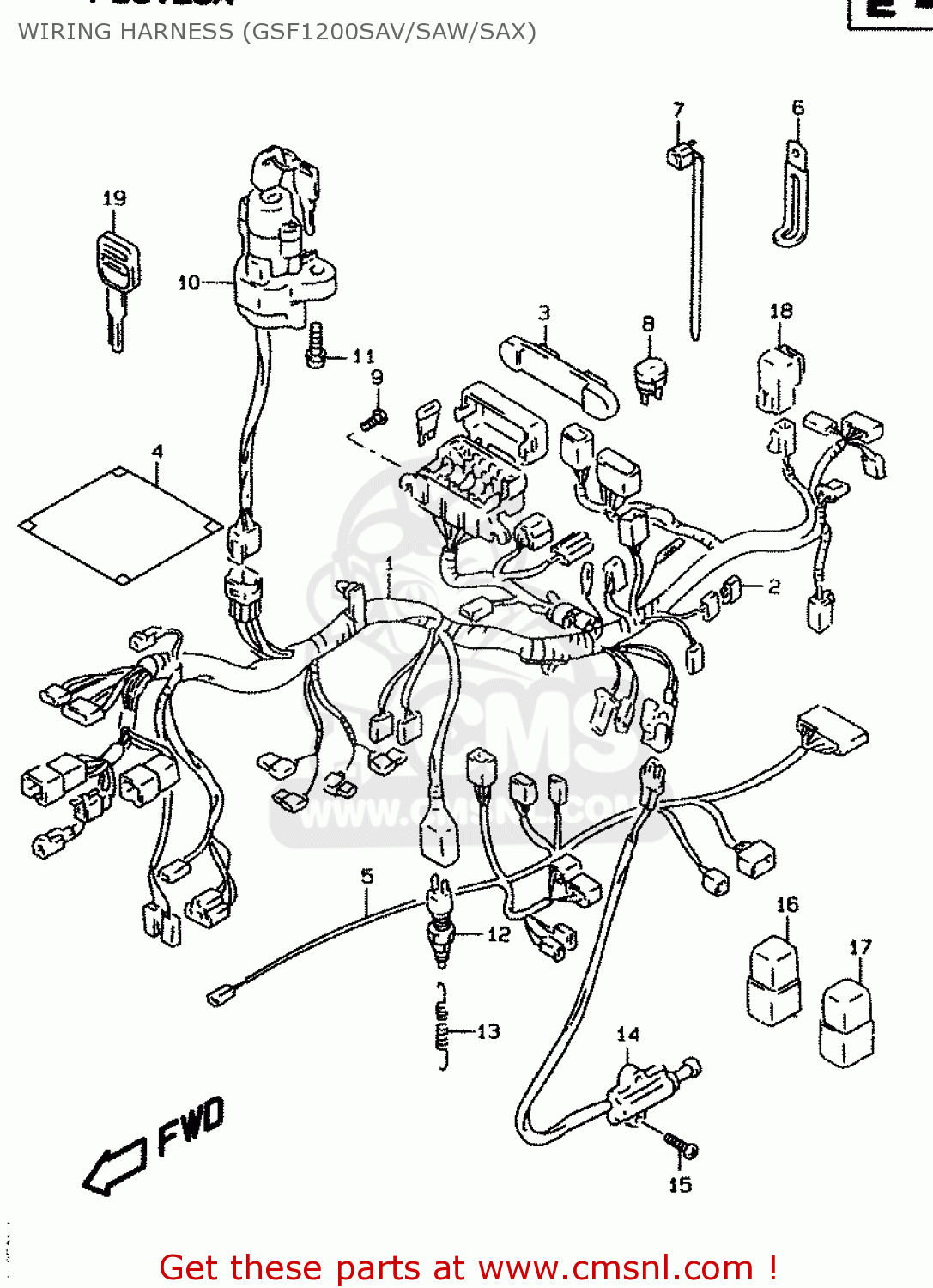

Wiring harness (gsf1200sav/saw/sax) diagram GSF1200SA 1996 (T)
WIRING HARNESS (GSF1200SAV/SAW/SAX) GSF1200SA 1996 (T)
×
prices are in EUR
ref
part #
description
quantity
1
3661027EB0
ref: 1
HARNESS,WIRING NO.1
€ 549.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
3674427E00
ref: 3
HOLDER,FUSE BOX
€ 3.50
4
3661815D20
ref: 4
COVER,WIRING HARNESS
€ 12.00
5
3662027EA0
ref: 5
HARNESS,WIRING NO.2
€ 333.50
6
0940406432
ref: 6
<-09404-06431
CLAMP(L:65)
€ 2.50
6
0940408205
ref: 6
<-09404-08417
CLAMP(L:45 T:0.6)
€ 3.00
7
0940714403
ref: 7
<-09407-11401
CLAMP(L:125)
€ 2.50
7
0940725401
ref: 7
CLAMP(L:235)
€ 4.00
8
3675005A00
ref: 8
BREAKER ASSY,CIRCUT
€ 36.50
9
0214206123
ref: 9
SCREW 6X12
€ 2.00
10
3710033E01
ref: 10
LOCK ASSY,STEERING
€ 170.00
10
3710033E11
ref: 10
E24
LOCK ASSY,STEERING
€ 160.00
11
0913908016
ref: 11
BOLT(8X20)
€ 3.50
12
3774024A00
ref: 12
SWITCH ASSY,STOP LAMP
€ 20.50
13
0944306054
ref: 13
SPRING
€ 2.50
14
3784044X50
ref: 14
SWITCH ASSY,SIDE STAND
€ 75.50
15
0214206203
ref: 15
SCREW
€ 2.00
16
3886051E10
ref: 16
RELAY ASSY,ABS MOTOR
€ 98.00
17
3886051E20
ref: 17
RELAY ASSY,ABS VALVE
€ 114.00
18
3874026E00
ref: 18
RELAY ASSY
€ 32.50
19
3714633E00
ref: 19
OPT
KEY,BLANK
€ 13.00
