FRONT BRAKE HOSE (GSF1200T/V/W/X/ST/SV/SW/SX)

GSF1200SA 1996 (T)

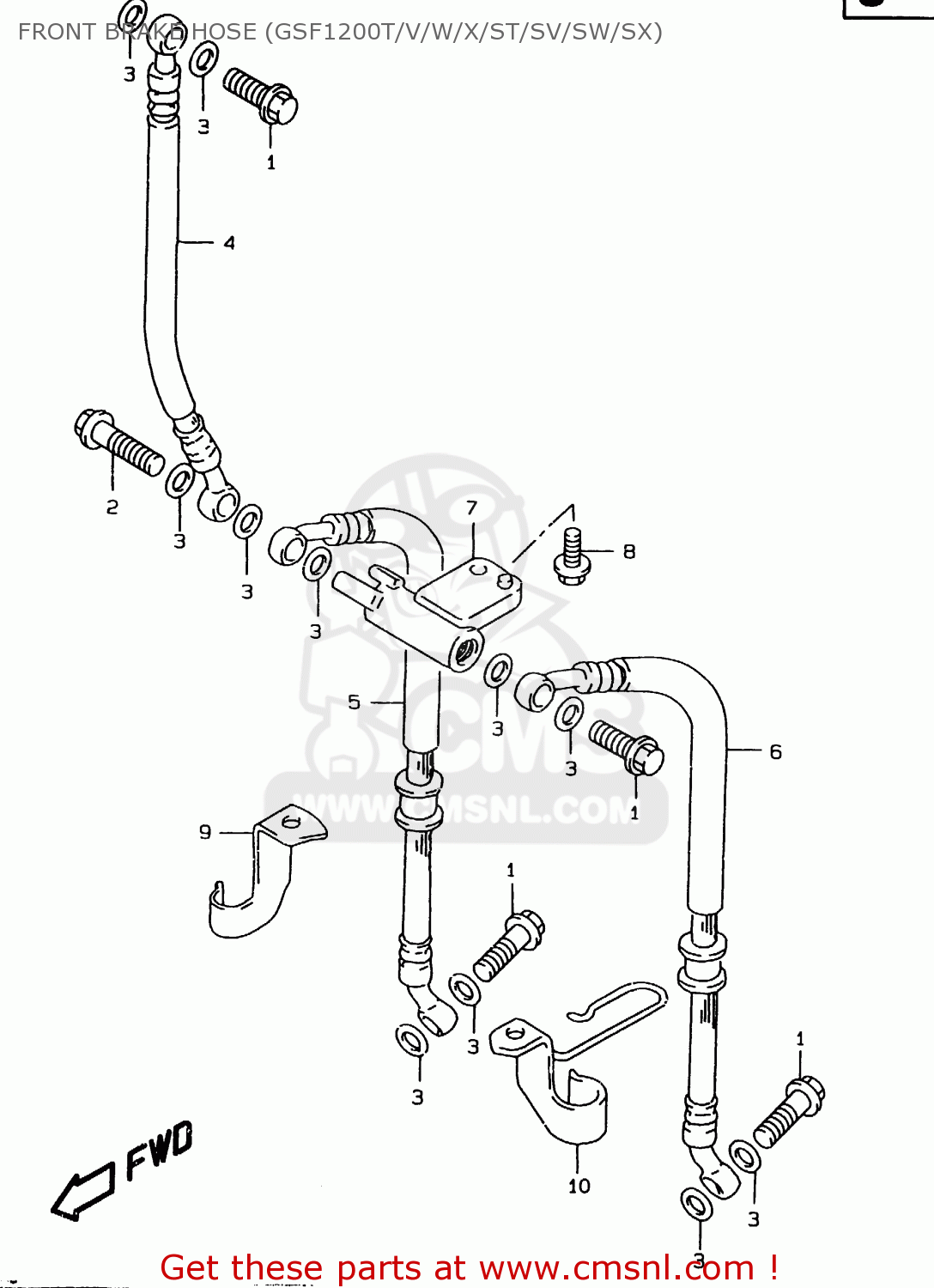

Front brake hose (gsf1200t/v/w/x/st/sv/sw/sx) diagram GSF1200SA 1996 (T)

FRONT BRAKE HOSE (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200SA 1996 (T)
FRONT BRAKE HOSE (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200SA 1996 (T)
FRONT BRAKE HOSE (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200SA 1996 (T)
prices are in EUR
ref
part #
description
quantity
1
0936010039
ref: 1
GSF1200T/ST
BOLT UNION
€ 6.50
1
0936010041
ref: 1
GSF1200V/SV/W/SW/X/S
BOLT UNION
€ 6.50
2
0936010018
ref: 2
GSF1200T/ST
BOLT UNION
0936010018
€ 7.00
2
0936010043
ref: 2
GSF1200V/SV/W/SW/X/S
BOLT UNION
€ 6.50
3
0916110009
ref: 3
WASHER(10X15X1.5)
0916110009
€ 2.00
4
5948026E00
ref: 4
GSF1200T/V/W/X
HOSE,FR BRAKE NO.1
€ 48.00
4
5948026E10
ref: 4
GSF1200ST/SV/SW/SX
HOSE COMP,FRONT BRAKE
€ 65.00
5
5924027E00
ref: 5
HOSE,FR BRAKE NO.2,R
€ 61.00
6
5944027E00
ref: 6
HOSE COMP,FRONT BRAKE
€ 63.00
7
5949117E00
ref: 7
JOINT,BRAKE HOSE
5949117E00
€ 68.50
8
0155006163
ref: 8
BOLT
0155006163
€ 2.50
9
5926807D00
ref: 9
CLAMP,FR BRAKE HOSE,R
€ 8.00
10
5926027E00
ref: 10
CLAMP,FR BRAKE HOSE,L
5926027E00
€ 17.50
