COWLING (MODEL K8)

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

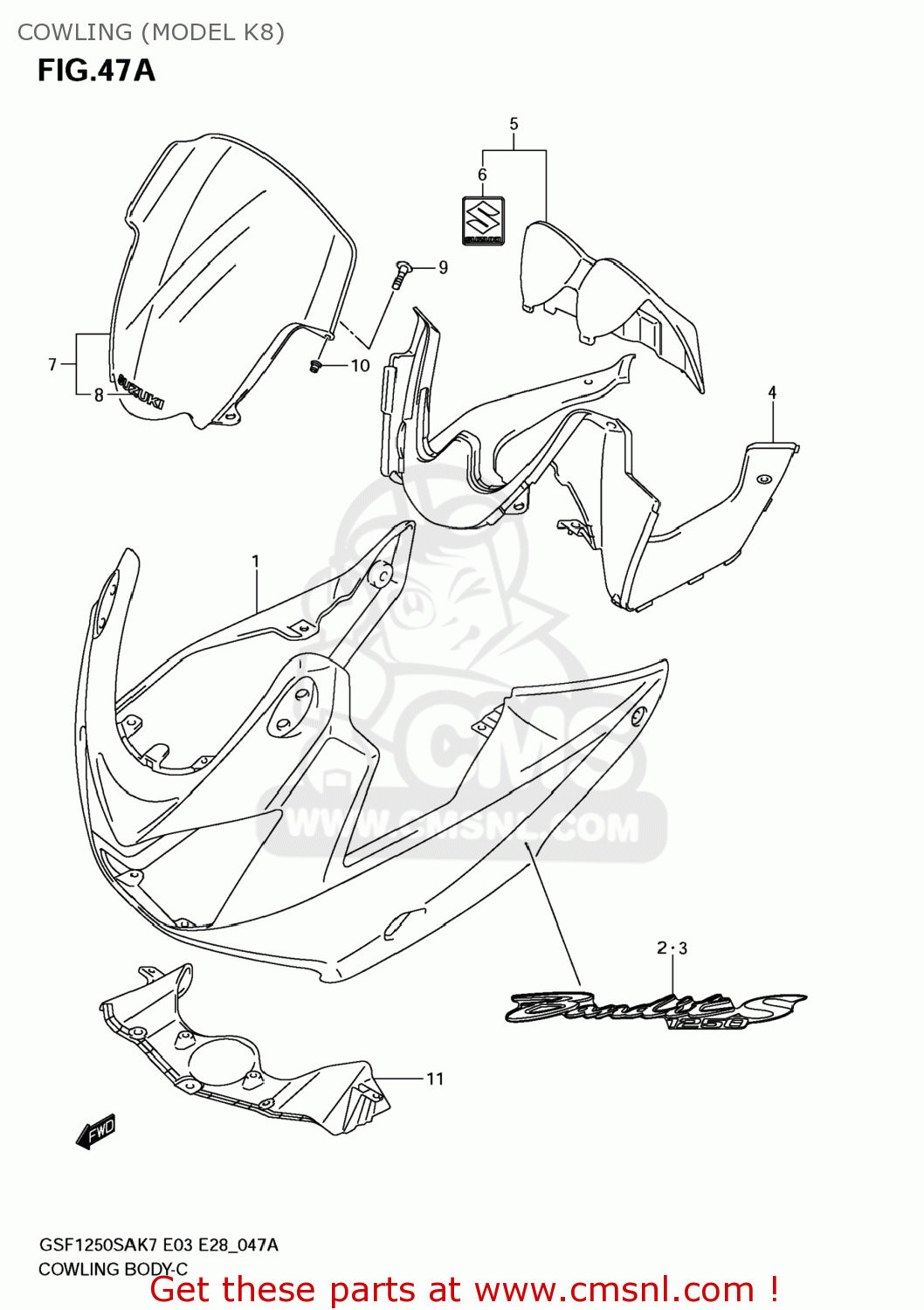

Cowling (model k8) diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

COWLING (MODEL K8) GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

COWLING (MODEL K8) GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

9441018H014EX
ref: 1-1

COWLING,BODY(BLACK)

€ 1,464.00

1-2

9441018H01YBA
ref: 1-2

COWLING,BODY(BLUE)

€ 1,547.00

1-3

9441018H01YHG
ref: 1-3

COWLING,BODY(GRAY)

€ 1,337.00

1-4

9441018H015HX
ref: 1-4

COWLING,BODY(RED)

€ 1,651.50

2-1

6827118H00FFK
ref: 2-1

EMBLEM,COWLING BODY SIDE,R

€ 31.00

2-2

6827118H00FFL
ref: 2-2

EMBLEM,COWLING BODY SIDE,R

€ 31.00

2-3

6827118H00FFM
ref: 2-3

EMBLEM,COWLING BODY SIDE,R

€ 26.00

2-4

6827118H00FFN
ref: 2-4

EMBLEM,COWLING BODY SIDE,R

€ 29.00

3-1

6828118H00FFK
ref: 3-1

EMBLEM,COWLING BODY SIDE,L

€ 31.00

3-2

6828118H00FFL
ref: 3-2

EMBLEM,COWLING BODY SIDE,L

€ 31.00

3-3

6828118H00FFM
ref: 3-3

EMBLEM,COWLING BODY SIDE,L

€ 31.00

3-4

6828118H00FFN
ref: 3-4

EMBLEM,COWLING BODY SIDE,L

€ 31.00

4

9464138G00
ref: 4

PANEL,METER

€ 106.00

5

9465038G00
ref: 5

LID,METER PANEL

€ 131.50

6

6828135F00
ref: 6

EMBLEM,S

€ 13.00

7

9461038G00YD8
ref: 7

WINDSCREEN(SILVER)

€ 1,012.00

8

6827538G00YD8
ref: 8

EMBLEM,WINDSCREEN

€ 20.00

9

0913905504
ref: 9

SCREW(5X16)

€ 4.00

10

0915905048
ref: 10

NUT

€ 6.50

11

9446138G00
ref: 11

COVER,COWLING INNER

€ 57.50
