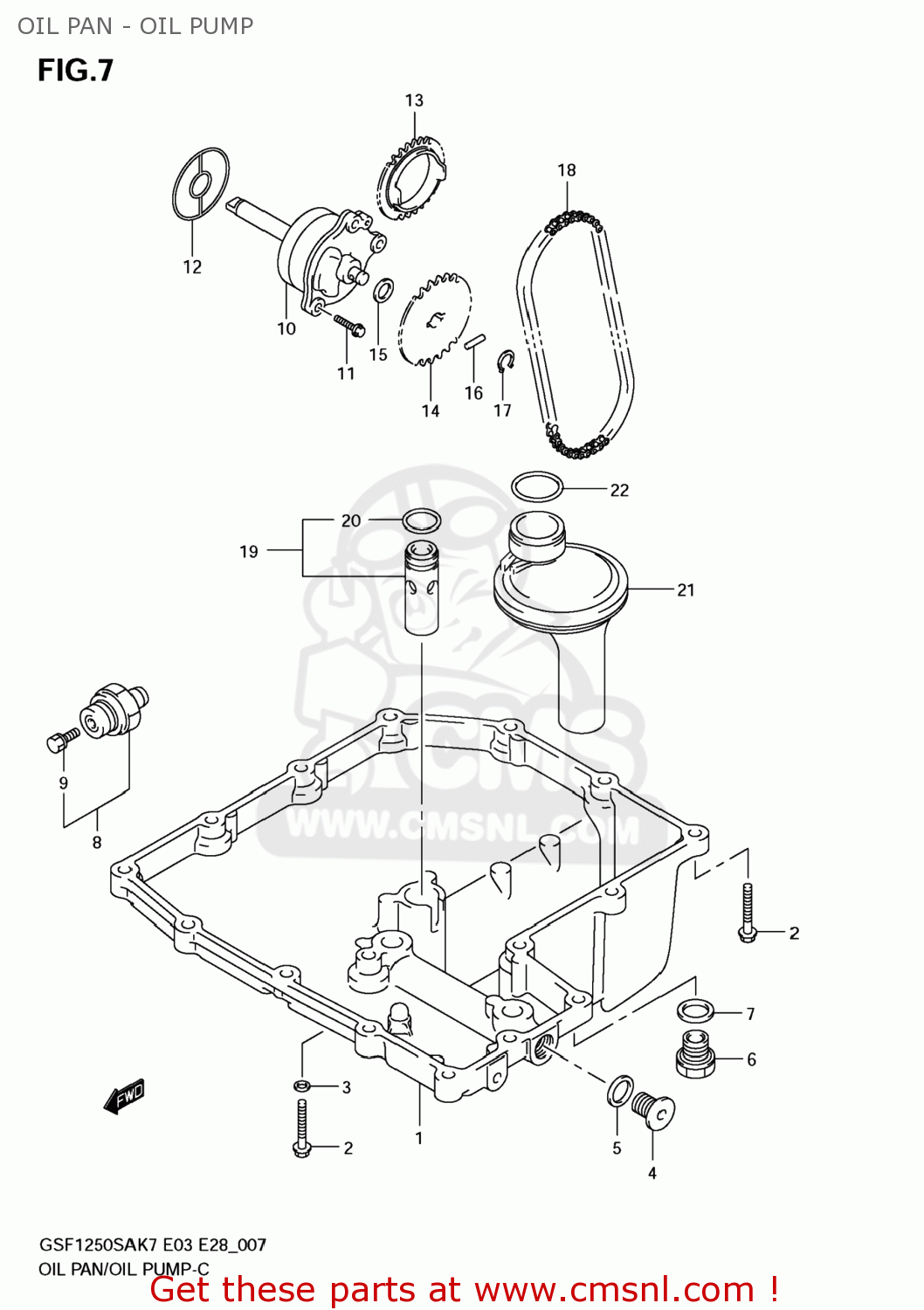

OIL PAN - OIL PUMP - GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

ref

part #

description

quantity

1

1151118H00
ref: 1

PAN,OIL

€ 318.00

2

015470625A
ref: 2

BOLT

€ 2.50

3

0916806023
ref: 3

GASKET(5.8X13X1.2) (NAS)

€ 2.00

4

0924812004
ref: 4

PLUG(L:12)

€ 5.50

5

0916812002
ref: 5

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

6

0924714036
ref: 6

PLUG(14X20)

€ 5.50

7

0916814002
ref: 7
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

8

3782033D10
ref: 8

SWITCH ASSY,OIL PRESSURE

€ 29.00

9

3782233D00
ref: 9

BOLT,OIL PRESSURE SWITCH

€ 3.00

10

1640018H00
ref: 10

PUMP ASSY,ENGINE OIL

€ 202.50

11

015470620A
ref: 11

BOLT

€ 2.50

12

1649133E00
ref: 12

O RING,OIL PUMP

€ 5.50

13

1632101H00
ref: 13

SPROCKET,OIL PUMP DRIVE

€ 42.50

14

1633118H00
ref: 14

SPROCKET,OIL PUMP DRIVEN

€ 46.00

15

0918110158
ref: 15

SHIM(10X18X0.5)

€ 2.50

16

0926104009
ref: 16

PIN(4X15.8)

€ 1.50

17

0833131109
ref: 17

CIRCLIP

€ 2.00

18

1631018H00
ref: 18

CHAIN,OIL PUMP DRIVE

€ 23.00

19

1644024F00
ref: 19

VALVE ASSY,OIL RELIEF(7K)

€ 41.50

20

0928013004
ref: 20

O RING(D:1.9,ID:13)

€ 2.50

21

1652018H00
ref: 21

STRAINER ASSY,ENGINE OIL

€ 27.50

22

0928025004
ref: 22

O RING(D:2.4,ID:24.7)

€ 2.00

OIL PAN - OIL PUMP

all assemblies
