HANDLE LEVER

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

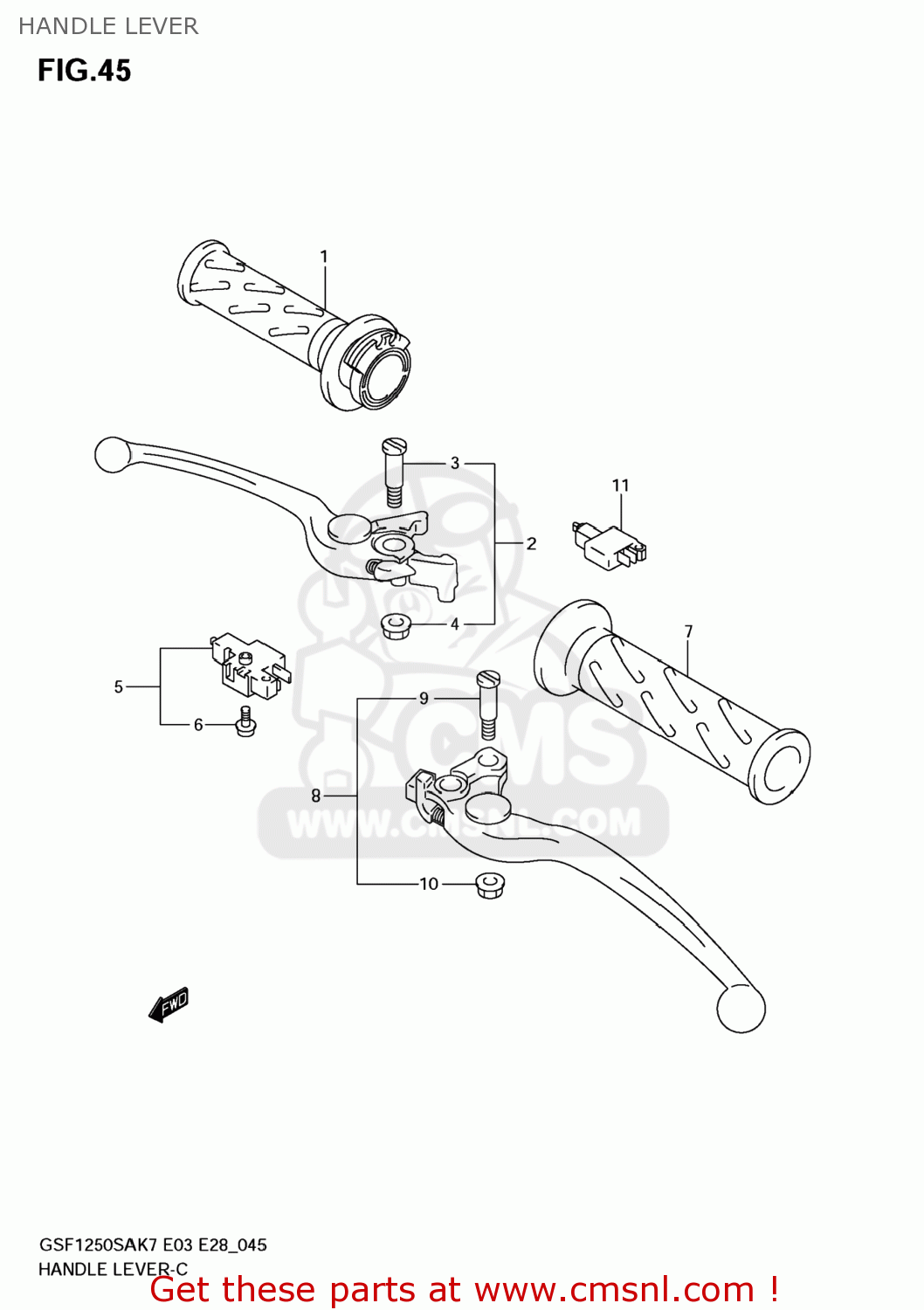

Handle lever diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

5711029G01
ref: 1
57110-29G01-291

GRIP,THROTTLE

€ 24.00

2-1

5730010G30
ref: 2-1
57300-10G31

LEVER ASSY,BRA

€ 59.00

2-2

5730044G10
ref: 2-2
57300-44G11

LEVER ASSY,BRA

€ 49.50

5743117H00
ref: 3
57431-17H01

BOLT,PIVOT

€ 6.00

083192106A
ref: 4

NUT

€ 2.00

5746017C11
ref: 5
57460-14J01

SWITCH ASSY,ST

€ 32.50

5746517C00
ref: 6

SCREW

€ 1.50

5721122D01
ref: 7
57211-22D01-291

GRIP,LEFT

€ 11.50

5750024F20
ref: 8
57500-24F21

LEVER ASSY,CLU

€ 58.50

5743117H00
ref: 9
57431-17H01

BOLT,PIVOT

€ 6.00

083161006A
ref: 10

NUT

€ 2.50

5756002FA0
ref: 11

SWITCH ASSY,CLUTCH

€ 22.00
