Buy Suzuki GSF Parts Online


MUFFLER

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

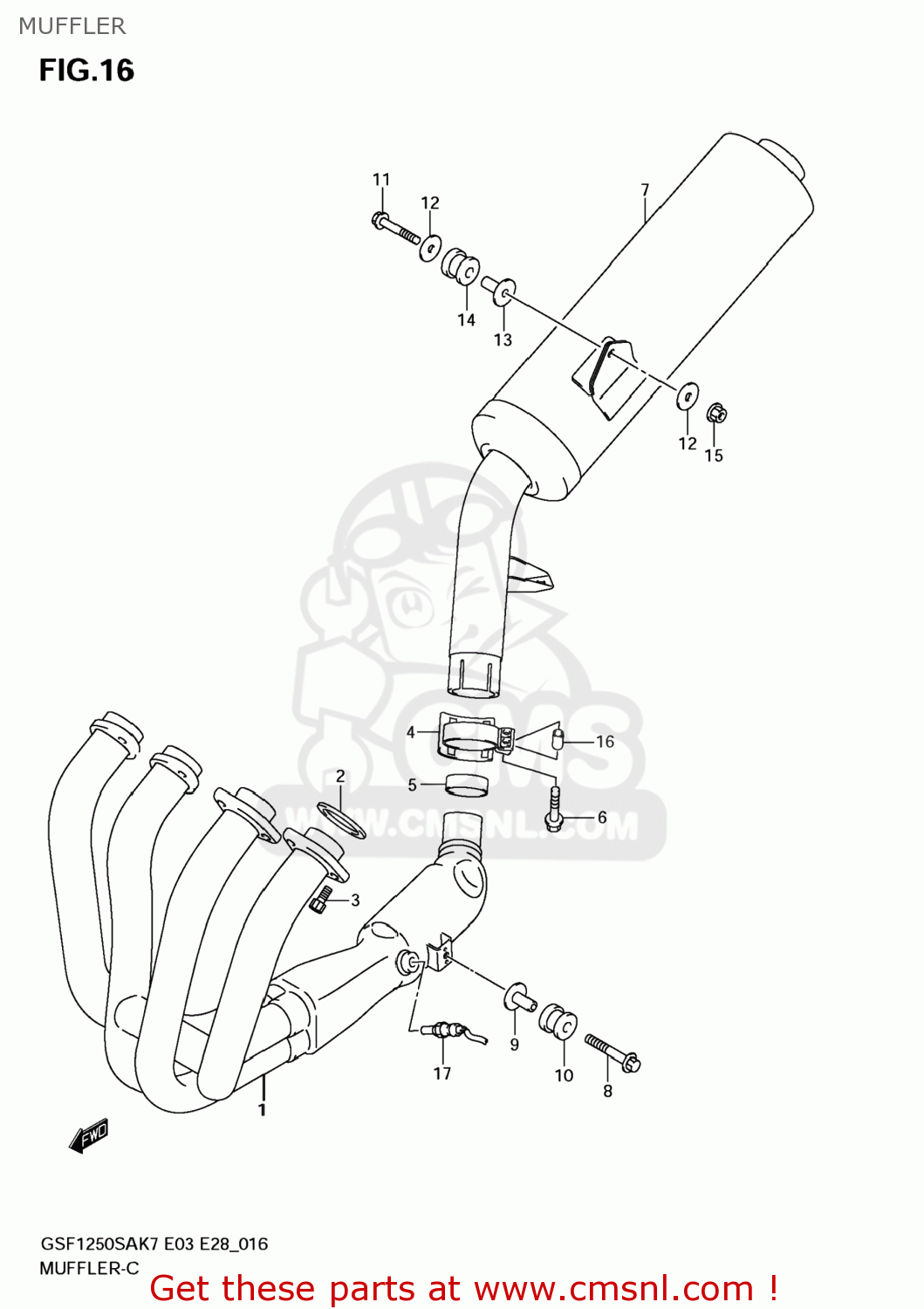

Muffler diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

MUFFLER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
MUFFLER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
MUFFLER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1410018H10
ref: 1
14100-18H13
EXHAUST COMP
1410018H10
€ 1,764.00
2
1418118C00
ref: 2
GASKET,EXHAUST (NAS)
1418118C00
€ 6.50
3
0910608165
ref: 3
BOLT(8X25)
0910608165
€ 5.00
4
1446918H00
ref: 4
CLAMP,MUFFLER CONNECTOR
1446918H00
€ 43.50
5
1477118H10
ref: 5
CONNECTOR,MUFFLER
1477118H10
€ 21.00
6
0910308392
ref: 6
BOLT(8X40)
0910308392
€ 4.00
7
1431018H01H01
ref: 7
14310-18H02-H01
BODY,MUFFLER
€ 1,117.00
8
015500840A
ref: 8
BOLT
015500840A
€ 3.00
9
0918008152
ref: 9
SPACER(8.6X12X24.2)
0918008152
€ 6.00
10
0932012048
ref: 10
CUSHION
0932012048
€ 5.00
11
0910308358
ref: 11
BOLT(8X45)
0910308358
€ 3.50
12
0916008147
ref: 12
WASHER(8.6X36X2)
0916008147
€ 3.50
13
0918008216
ref: 13
SPACER(8.6X12X25)
0918008216
€ 6.00
14
0932012049
ref: 14
CUSHION
0932012049
€ 9.00
15
083612508A
ref: 15
NUT
083612508A
€ 2.50
16
1445845G01
ref: 16
SPACER,CLAMP
1445845G01
€ 3.00
17
1821318H00
ref: 17
18213-18H10
SENSOR,OXYGEN
€ 336.00
