GEAR SHIFTING

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

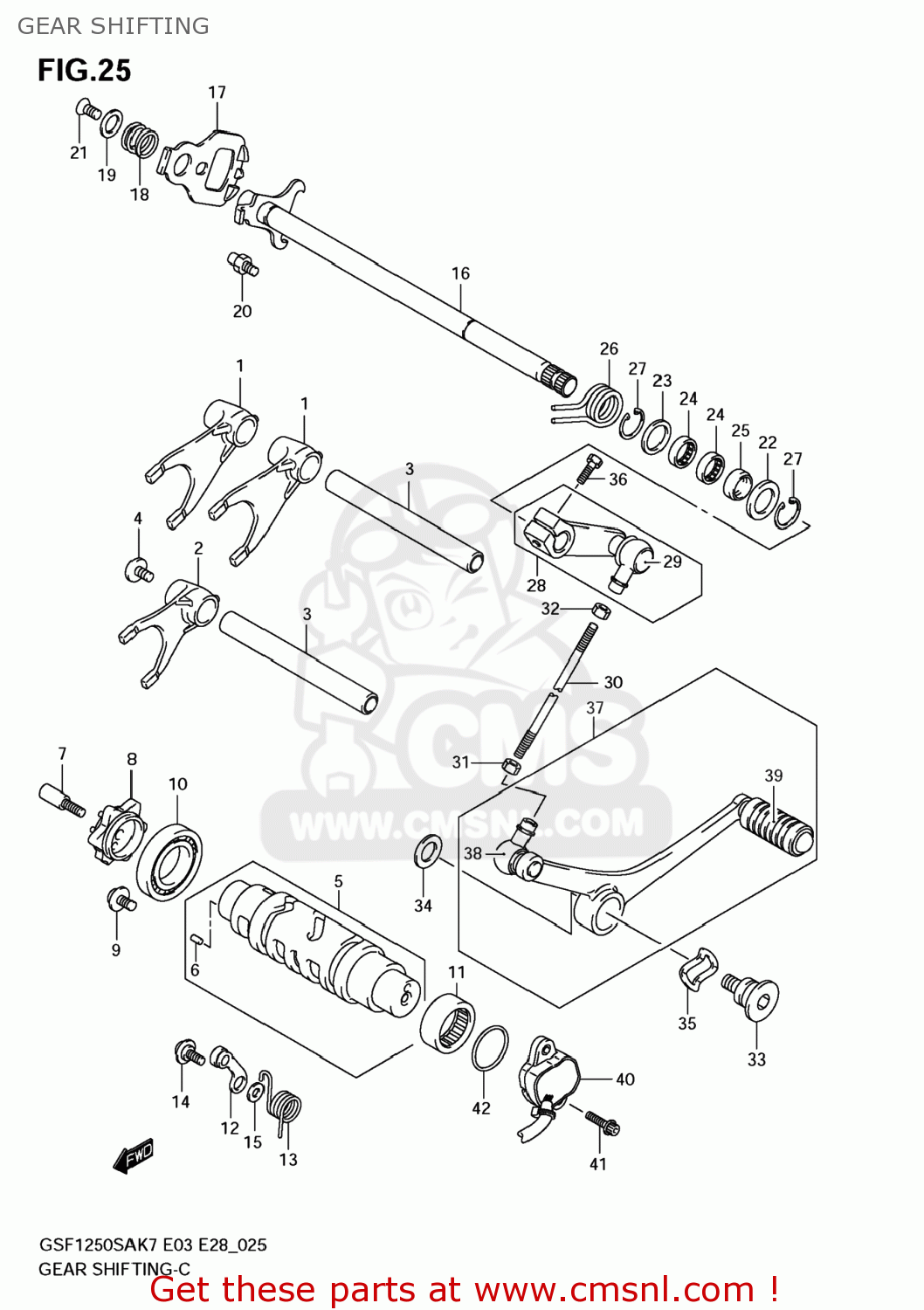

Gear shifting diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

GEAR SHIFTING GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
GEAR SHIFTING GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
GEAR SHIFTING GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1-1
2521101H00
ref: 1-1
25211-01H01
FORK,GEAR SHIF
€ 72.50
1-2
2521101H01
ref: 1-2
FORK,GEAR SHIFT NO.1
2521101H01
€ 72.50
2-1
2523101H00
ref: 2-1
25231-01H01
FORK,GEAR SHIF
€ 74.00
2-2
2523101H01
ref: 2-2
FORK,GEAR SHIFT NO.3
2523101H01
€ 74.00
3
2541127A00
ref: 3
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 23.50
4
0913606147
ref: 4
SCREW(6X12)
0913606147
€ 2.00
5
2531018H00
ref: 5
CAM,GEAR SHIFT
2531018H00
€ 178.50
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
2531242F01
ref: 7
BOLT,GEAR SHIFT CAM PLATE
2531242F01
€ 5.50
8
2538113E30
ref: 8
PLATE,GEAR SHIFT CAM
2538113E30
€ 30.00
9
0913606147
ref: 9
SCREW(6X12)
0913606147
€ 2.00
10
0926225006
ref: 10
BEARING(25X47X8)
0926225006
€ 24.00
11
0926325018
ref: 11
BEARING(25X32X12)
0926325018
€ 17.50
12
2535006G00
ref: 12
STOPPER,SHIFT CAM
2535006G00
€ 19.00
13
2535518H00
ref: 13
SPRING,GEAR SHIFT CAM STOPPER
2535518H00
€ 4.50
14
0911106041
ref: 14
BOLT(6X14.3)
0911106041
€ 3.00
15
0821106141
ref: 15
WASHER
0821106141
€ 2.50
16
2551018H00
ref: 16
SHAFT,GEAR SHIFT
2551018H00
€ 97.00
17
2551206G10
ref: 17
PLATE,GEAR SHIFT CAM DRIVE
2551206G10
€ 20.00
18
2551801H00
ref: 18
SPRING,GEAR SHIFT PLATE RETURN
2551801H00
€ 2.00
19
2551901H00
ref: 19
WASHER,GEAR SHIFT SHAFT END
€ 3.00
20
2567101011
ref: 20
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
21
0912606014
ref: 21
SCREW(6X16)
0912606014
€ 2.00
22
0916014016
ref: 22
WASHER(14X29X0.8)
0916014016
€ 1.50
23
0918114195
ref: 23
SHIM(14X24X1)
0918114195
€ 1.50
24
0926314027
ref: 24
BEARING(14X20X12)
0926314027
€ 11.00
25
0928314006
ref: 25
SEAL,OIL(14X22X6)
0928314006
€ 6.50
26
0944420001
ref: 26
SPRING
0944420001
€ 5.00
27
083313114A
ref: 27
CIRCLIP
083313114A
€ 2.00
28
2552018H00
ref: 28
ARM,GEAR SHIFT LINK
2552018H00
€ 51.00
29
2552647000
ref: 29
COVER,DUST
2552647000
€ 3.50
30
2552505A10
ref: 30
ROD,GEAR SHIFT LINK
2552505A10
€ 12.00
31
0914006025
ref: 31
NUT
0914006025
€ 2.00
32
0831000067
ref: 32
NUT
0831000067
€ 2.50
33
2561718H00
ref: 33
BOLT,GEAR SHIFT LEVER
2561718H00
€ 25.00
34
0916010035
ref: 34
WASHER(10.5X28X2.3)
0916010035
€ 2.00
35
0916418009
ref: 35
WASHER
0916418009
€ 1.50
36
015000620A
ref: 36
BOLT
015000620A
€ 2.00
37
2560018H00
ref: 37
LEVER ASSY,GEAR SHIFT
2560018H00
€ 68.00
38
2552647000
ref: 38
COVER,DUST
2552647000
€ 3.50
39
2565220C00
ref: 39
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.00
40
3773018H01
ref: 40
SENSOR ASSY,GE
3773018H01
€ 126.00
41
0910605023
ref: 41
BOLT(5X16)
0910605023
€ 2.50
42
0928026005
ref: 42
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
