MAGNETO

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

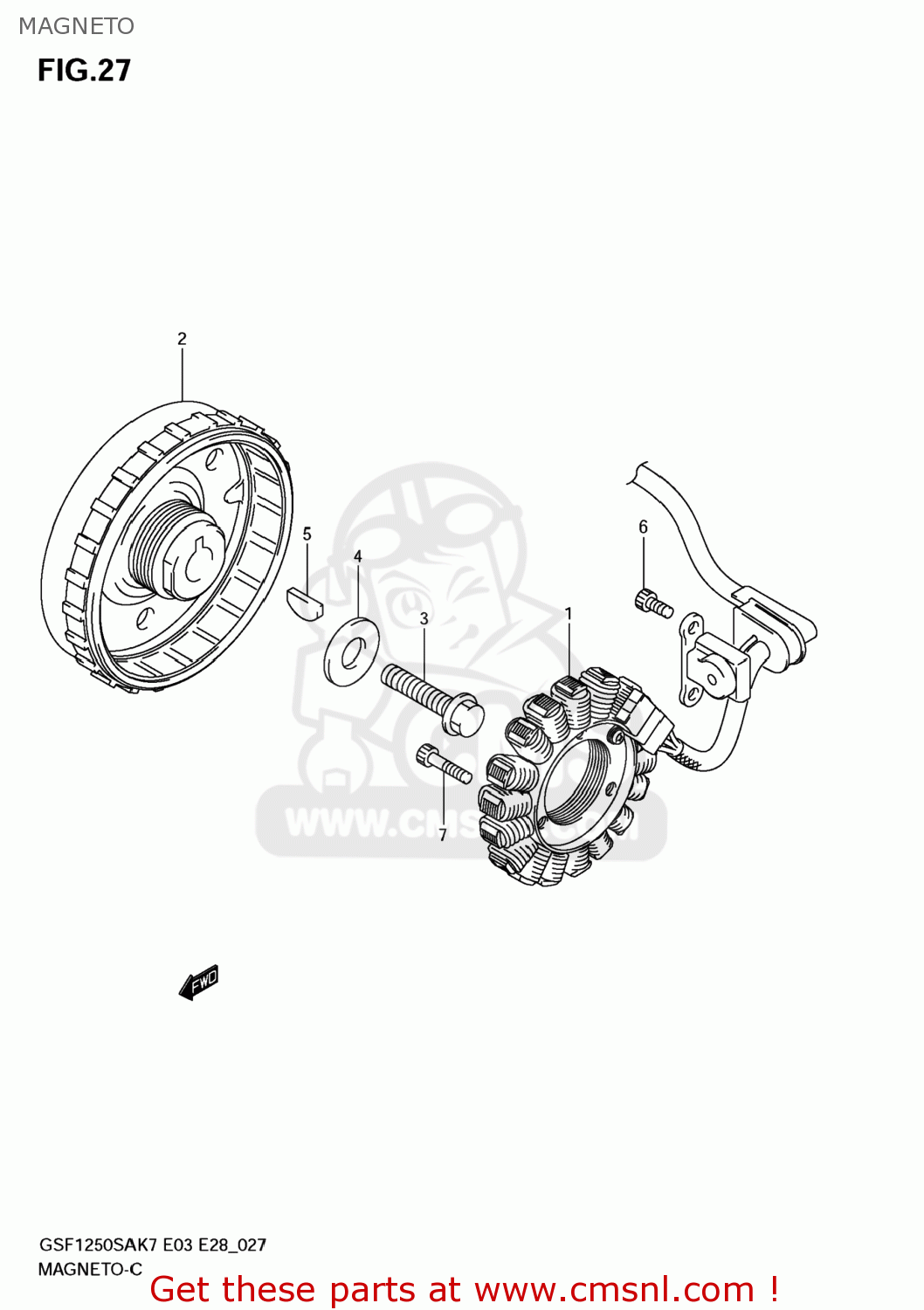

Magneto diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

MAGNETO GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

MAGNETO GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3210118H00
ref: 1

STARTER ASSY

€ 464.50

2

3210218H00
ref: 2

ROTOR ASSY

€ 556.00

3

0910312004
ref: 3

BOLT(12X40)

€ 3.00

4

0916012036
ref: 4

WASHER(12X30X3)

€ 3.00

5

0942004008
ref: 5

KEY

€ 3.50

6

071300612A
ref: 6

BOLT

€ 2.50

7

071300620A
ref: 7

BOLT

€ 3.00
