CYLINDER

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

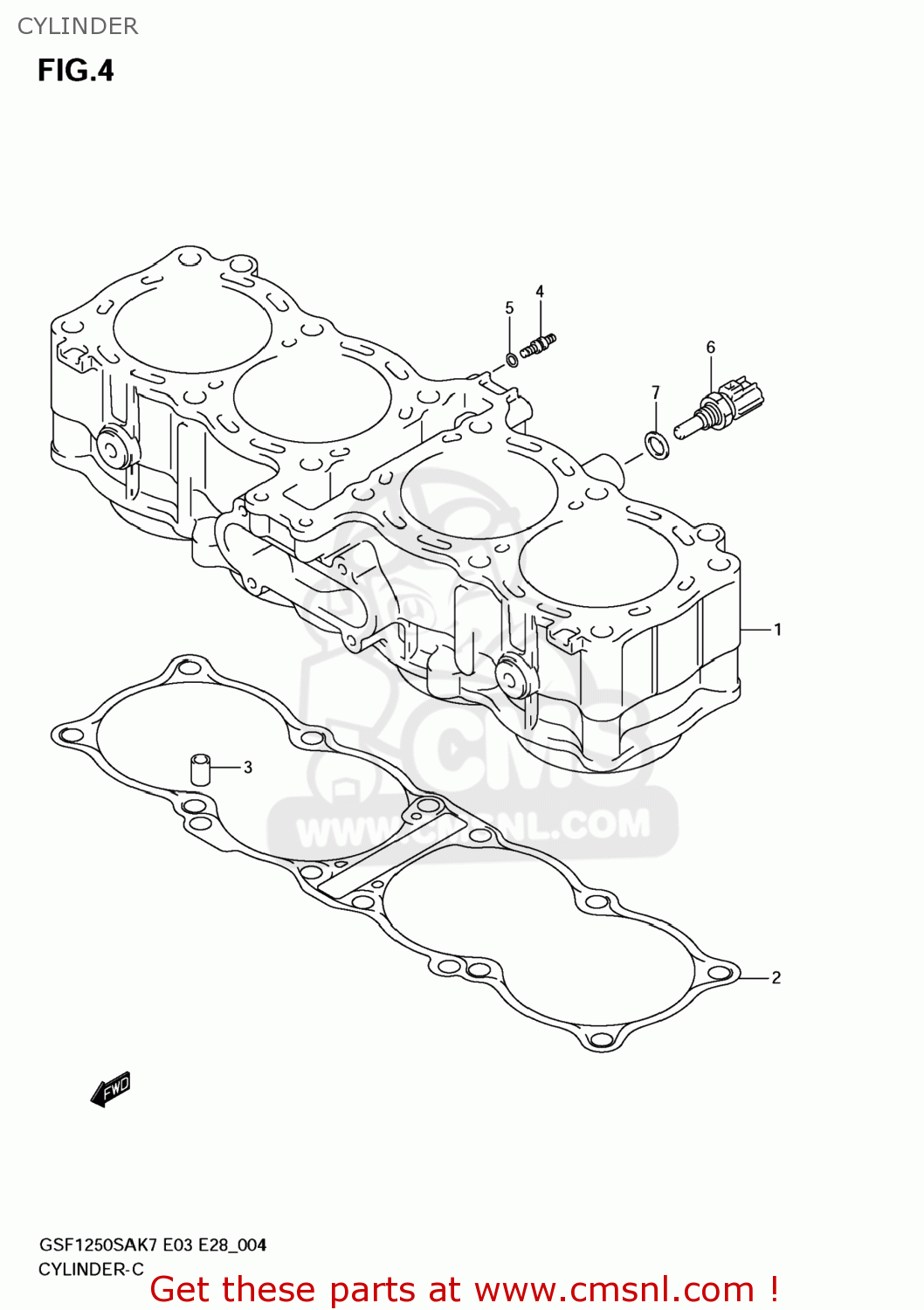

Cylinder diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

CYLINDER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

CYLINDER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1121018H000F0
ref: 1

CYLINDER

€ 1,127.00

2

1124118H00
ref: 2

GASKET,CYLINDER (NAS)

€ 28.50

3

0421111169
ref: 3

PIN

€ 2.00

4

0949380005
ref: 4

JET(8)

€ 12.00

5

0928004004
ref: 5

O RING(D:1.2,ID:4)

€ 2.00

6

1365049X00
ref: 6

SENSOR,TEMP

€ 73.00

7

0916812017
ref: 7

GASKET(12X17X1) (NAS)

€ 2.00
