ELECTRICAL

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

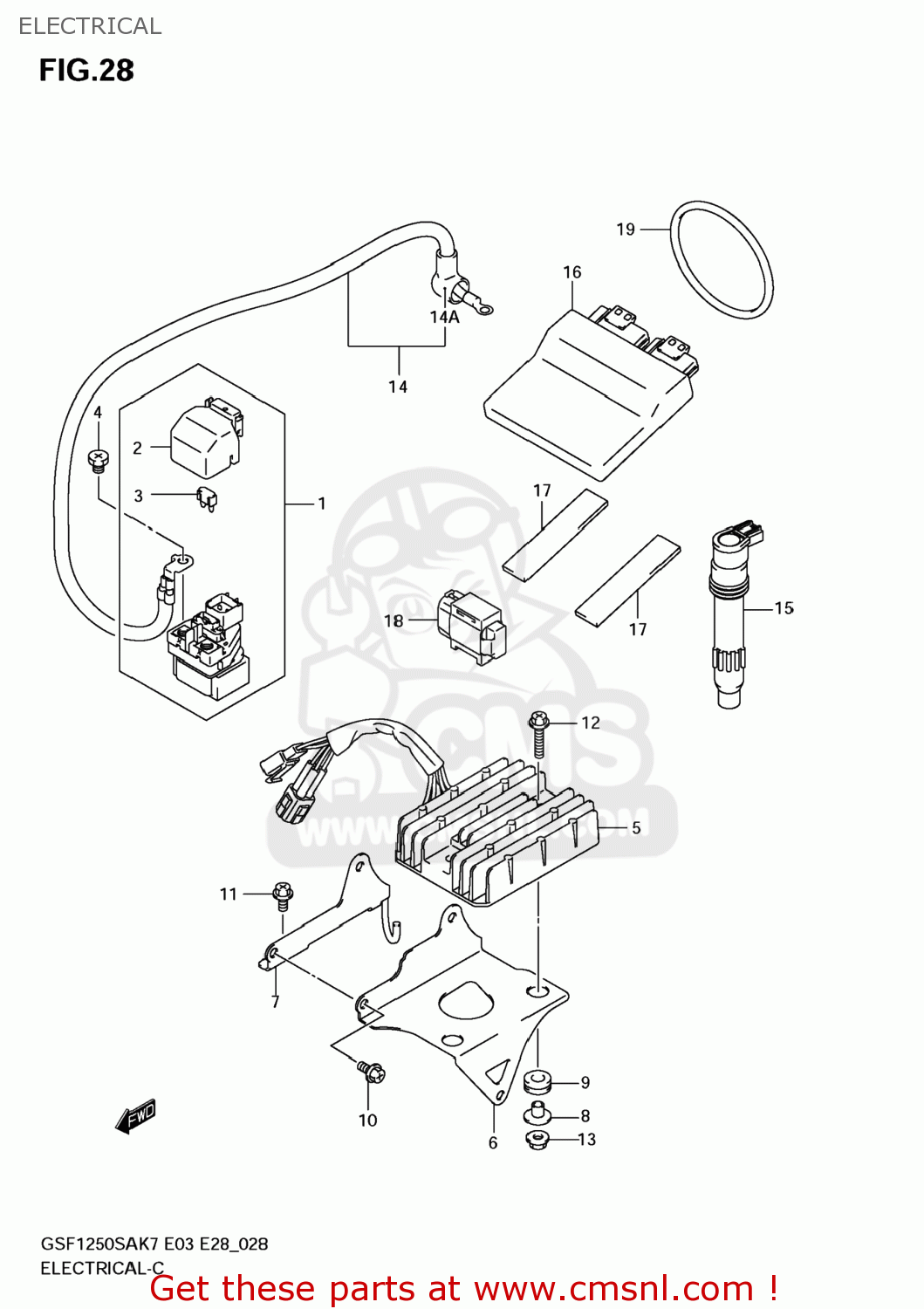

Electrical diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

ELECTRICAL GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
ELECTRICAL GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
ELECTRICAL GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1-1
3180038G00
ref: 1-1
31800-38G10
RELAY ASSY
€ 77.50
1-2
3180038G10
ref: 1-2
RELAY ASSY,STARTING MOTOR
3180038G10
€ 77.50
2
3186138G00
ref: 2
COVER
3186138G00
€ 3.50
3
0948130501
ref: 3
FUSE(30A)
0948130501
€ 0.50
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280018H00
ref: 5
RECTIFIER ASSY
3280018H00
€ 268.50
6
3283018H10
ref: 6
BRACKET,RECT FTG NO.1
€ 20.00
7
3283018H20
ref: 7
BRACKET,RECT FTG NO.2
3283018H20
€ 16.50
8
0918006325
ref: 8
SPACER(6.2X8.4X6.9)
0918006325
€ 3.00
9
0932008066
ref: 9
CUSHION
0932008066
€ 7.50
10
015470612A
ref: 10
BOLT
015470612A
€ 2.00
11
015470612A
ref: 11
BOLT
015470612A
€ 2.00
12
015470625A
ref: 12
BOLT
015470625A
€ 2.50
13
083161006B
ref: 13
NUT
083161006B
€ 2.50
14
3381018H00
ref: 14
WIRE,STARTER MOTOR LEAD
€ 18.00
14A
3362418H10
ref: 14A
CAP,STARTER MOTOR
€ 4.50
15
3341035F10
ref: 15
COIL ASSY,IGNITION
3341035F10
€ 122.50
16
3292018H20
ref: 16
32920-18H21
CONTROL UNIT,FI
€ 1,085.00
17
3365238A10
ref: 17
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
18
3396006G10
ref: 18
SENSOR ASSY,FUEL CUT
3396006G10
€ 75.00
19
0928070004
ref: 19
O RING(D:3.53,ID:69.44)
0928070004
€ 3.50
