CRANKCASE COVER

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

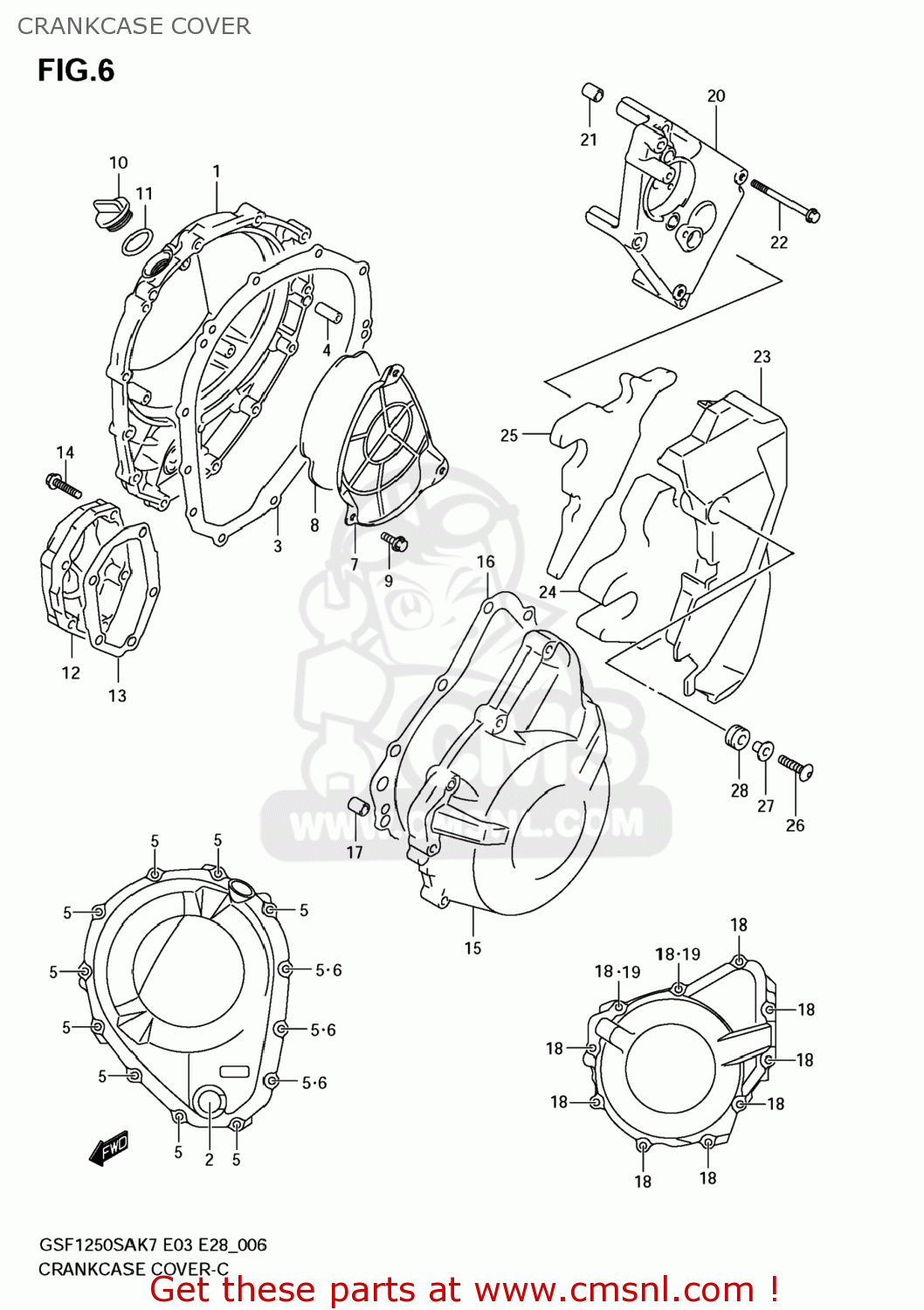

Crankcase cover diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

CRANKCASE COVER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
CRANKCASE COVER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
CRANKCASE COVER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1134018H00
ref: 1
COVER,CLUTCH
1134018H00
€ 281.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148218H00
ref: 3
GASKET,CL COVER (NAS)
1148218H00
€ 16.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0910306213
ref: 5
BOLT(6X30)
0910306213
€ 2.50
6
0916806023
ref: 6
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
7
1134218H00
ref: 7
PLATE,CLUTCH COVER
1134218H00
€ 14.50
8
1134318H00
ref: 8
DAMPER,CLUTCH COVER
1134318H00
€ 109.50
9
015500612A
ref: 9
BOLT
015500612A
€ 2.50
10
1197125D00
ref: 10
PLUG,ENGINE OIL FILLER
1197125D00
€ 5.50
11
0928017003
ref: 11
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
12
1138118H00
ref: 12
COVER,CRANKSHAFT,R
1138118H00
€ 89.00
13
1149118H00
ref: 13
GASKET,CRANKSHAFT,R COVER (NAS)
1149118H00
€ 5.50
14
0910306213
ref: 14
BOLT(6X30)
0910306213
€ 2.50
15
1135118H00
ref: 15
COVER,MAGNETO
1135118H00
€ 148.00
16
1148318H00
ref: 16
GASKET,MAGNETO COVER (NAS)
1148318H00
€ 12.00
17
0421109149
ref: 17
PIN
0421109149
€ 2.00
18
0910306213
ref: 18
BOLT(6X30)
0910306213
€ 2.50
19
0916806023
ref: 19
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
20
1137118H00
ref: 20
COVER,ENGINE SPROCKET INNER
€ 70.00
21
0421109149
ref: 21
PIN
0421109149
€ 2.00
22
015470660A
ref: 22
BOLT
015470660A
€ 2.50
23
1136118H00
ref: 23
COVER,ENGINE SPROCKET OUTER
1136118H00
€ 97.00
24
1136218H00
ref: 24
CUSHION,ENG SPRKT COVER NO.1
1136218H00
€ 11.50
25
1136318H00
ref: 25
CUSHION,ENG SPRKT COVER NO.2
1136318H00
€ 4.50
26
0913906056
ref: 26
SCREW(6X20)
0913906056
€ 3.00
27
0916906062
ref: 27
WASHER
0916906062
€ 3.00
28
0932009016
ref: 28
CUSHION
0932009016
€ 2.50
