CYLINDER HEAD

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

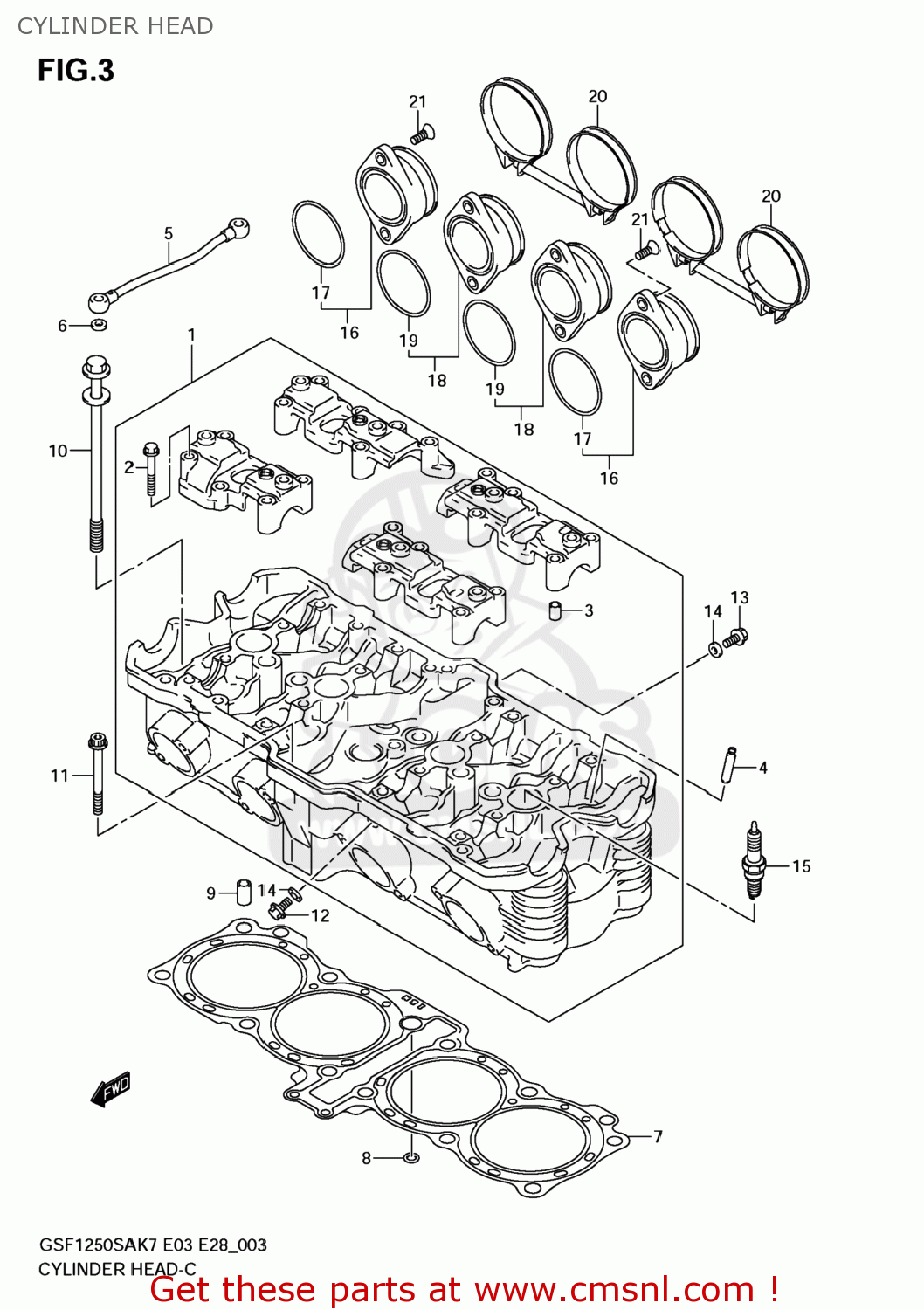

Cylinder head diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

CYLINDER HEAD GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
CYLINDER HEAD GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
CYLINDER HEAD GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
1110018H00
ref: 1
HEAD ASSY,CYLINDER
1110018H00
€ 1,956.00
2
0910306293
ref: 2
BOLT(6X45)
0910306293
€ 2.00
3
0920608001
ref: 3
PIN(6.2X8X11)
0920608001
€ 2.00
4
1111517E70
ref: 4
GUIDE,VALVE
1111517E70
€ 23.00
5
1113118H00
ref: 5
PIPE,CYLINDER HEAD OIL
1113118H00
€ 55.00
6
083220106B
ref: 6
WASHER
083220106B
€ 2.00
7
1114118H00
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114118H00
€ 84.50
8
1114332F00
ref: 8
O RING,HEAD GASKET
1114332F00
€ 6.00
9
0421111169
ref: 9
PIN
0421111169
€ 2.00
10
1111718H00
ref: 10
BOLT,CYLINDER HEAD(L:175)
1111718H00
€ 17.00
11
071200665B
ref: 11
BOLT
071200665B
€ 3.00
12
015500612A
ref: 12
BOLT
015500612A
€ 2.50
13
071200612B
ref: 13
BOLT
071200612B
€ 3.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
15-1
0948200516
ref: 15-1
PLUG,SPARK(CR7E)
0948200516
€ 8.50
15-2
0948200515
ref: 15-2
PLUG,SPARK(U22ESR-N)
€ 8.50
15-3
0948200528
ref: 15-3
PLUG,SPARK(CR6E)
€ 9.50
15-4
0948200456
ref: 15-4
PLUG,SPARK(CR8E)
0948200456
€ 7.00
15-5
0948200529
ref: 15-5
PLUG,SPARK(U20ESR-N)
€ 9.50
15-6
0948200457
ref: 15-6
PLUG,SPARK(U24ESR-N)
0948200457
€ 7.00
16
1310118H00
ref: 16
PIPE ASSY,INTAKE NO.1
1310118H00
€ 49.00
17
0928042003
ref: 17
O RING(D:2.4,ID:41.7)
0928042003
€ 8.50
18
1310218H00
ref: 18
13102-18H01
PIPE ASSY,INTA
€ 49.00
19
0928042003
ref: 19
O RING(D:2.4,ID:41.7)
0928042003
€ 8.50
20
1317018H10
ref: 20
CLAMP,INTAKE PIPE
€ 26.50
21
021220616B
ref: 21
SCREW
021220616B
€ 2.00
