STAND

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

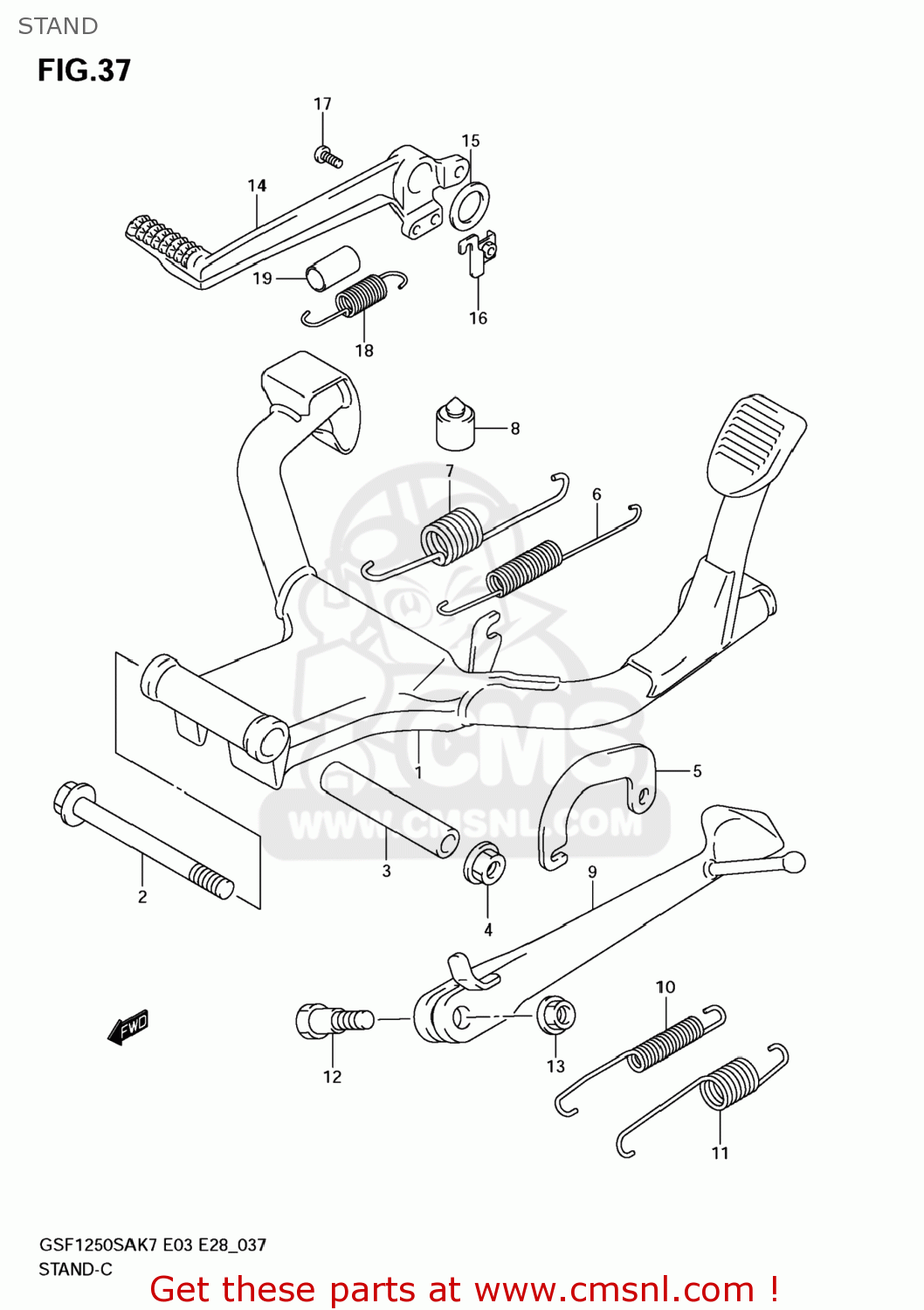

Stand diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

STAND GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
STAND GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
STAND GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
4210018H00
ref: 1
STAND,CTR
€ 302.50
2
0910310087
ref: 2
BOLT(10X105)
0910310087
€ 6.50
3
4219118H00
ref: 3
SPACER,CTR STAND
4219118H00
€ 13.50
4
083193110A
ref: 4
NUT
083193110A
€ 3.00
5
4219218H00
ref: 5
HOOK,CTR STAND SPRING
€ 8.00
6
0944314073
ref: 6
SPRING
€ 11.00
7
0944322020
ref: 7
SPRING
0944322020
€ 11.00
8
0932110034
ref: 8
CUSHION
0932110034
€ 6.50
9
4231032F21
ref: 9
STAND,PROP
4231032F21
€ 147.50
10
0944312048
ref: 10
SPRING
0944312048
€ 22.00
11
0944319010
ref: 11
SPRING
0944319010
€ 6.00
12
0911110065
ref: 12
BOLT(10X38)
0911110065
€ 6.50
13
4232103FK0
ref: 13
NUT,PROP STAND
4232103FK0
€ 4.50
14
4311138G00
ref: 14
PEDAL,BRAKE
4311138G00
€ 91.00
15
0916018022
ref: 15
WASHER(18X24X1)
0916018022
€ 3.00
16
4356032C00
ref: 16
BRACKET,STOP LAMP SWITCH SPR
4356032C00
€ 3.00
17
021120516B
ref: 17
SCREW
021120516B
€ 2.00
18
0944313029
ref: 18
SPRING
0944313029
€ 5.00
19
4326117C00
ref: 19
TUBE,BRAKE SPRING GUIDE
4326117C00
€ 5.50
