OIL COOLER

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

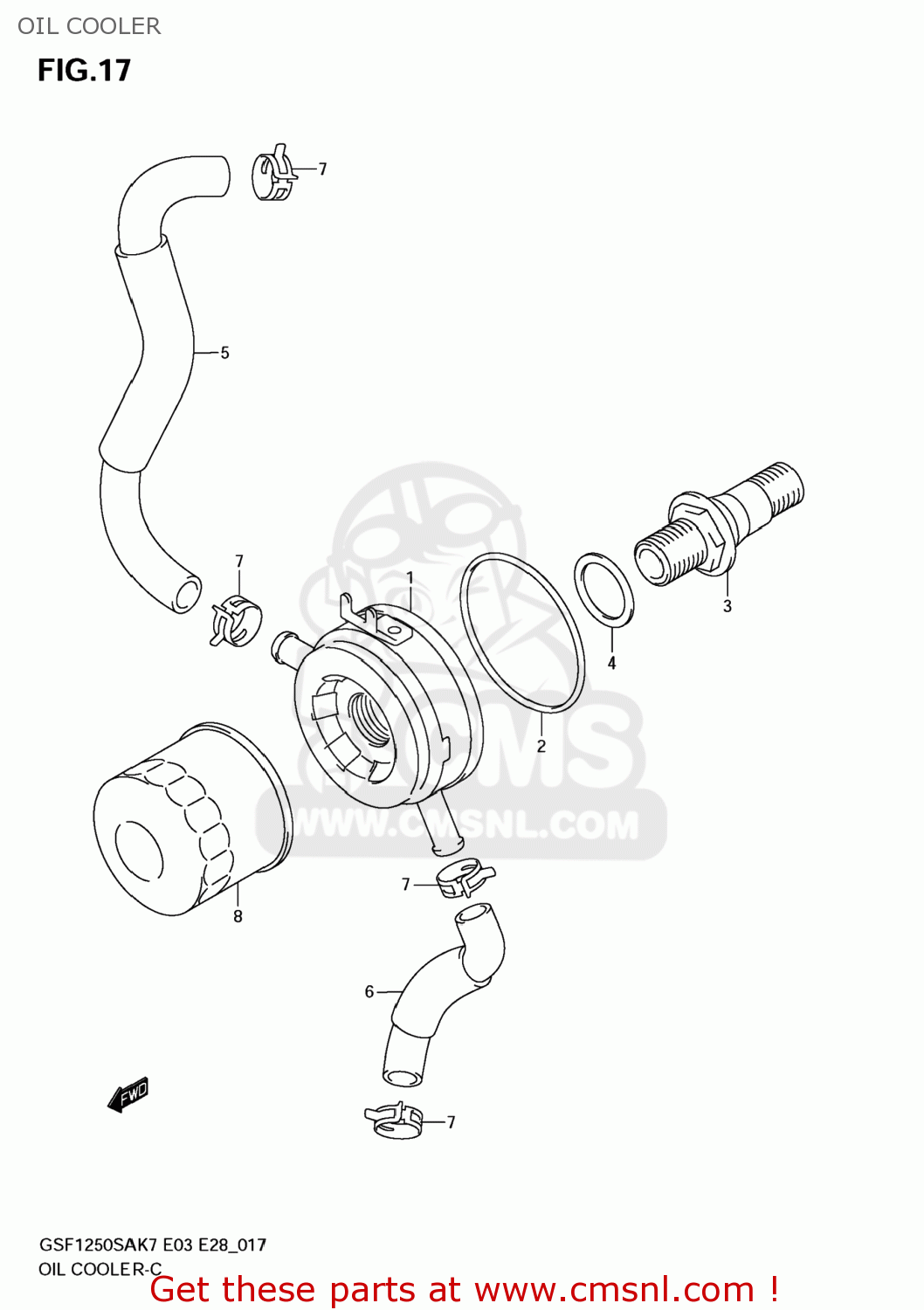

Oil cooler diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

OIL COOLER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

OIL COOLER GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

1660018H00
ref: 1

COOLER ASSY,OIL

€ 651.50

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

1659102F00
ref: 3

BOLT,OIL COOLER UNION

€ 31.00

4

0918125160
ref: 4

SHIM(25X34X0.7)

€ 3.00

5

1646118H00
ref: 5

HOSE,OIL COOLER WATER INLET

€ 25.00

6

1647118H00
ref: 6

HOSE,OIL COOLER WATER OUTLET

€ 18.00

7

0940116409
ref: 7

CLIP

€ 2.50

8

1651003G00X07
ref: 8
16510-07J00

FILTER ASSY,EN

€ 12.50
