TRANSMISSION

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

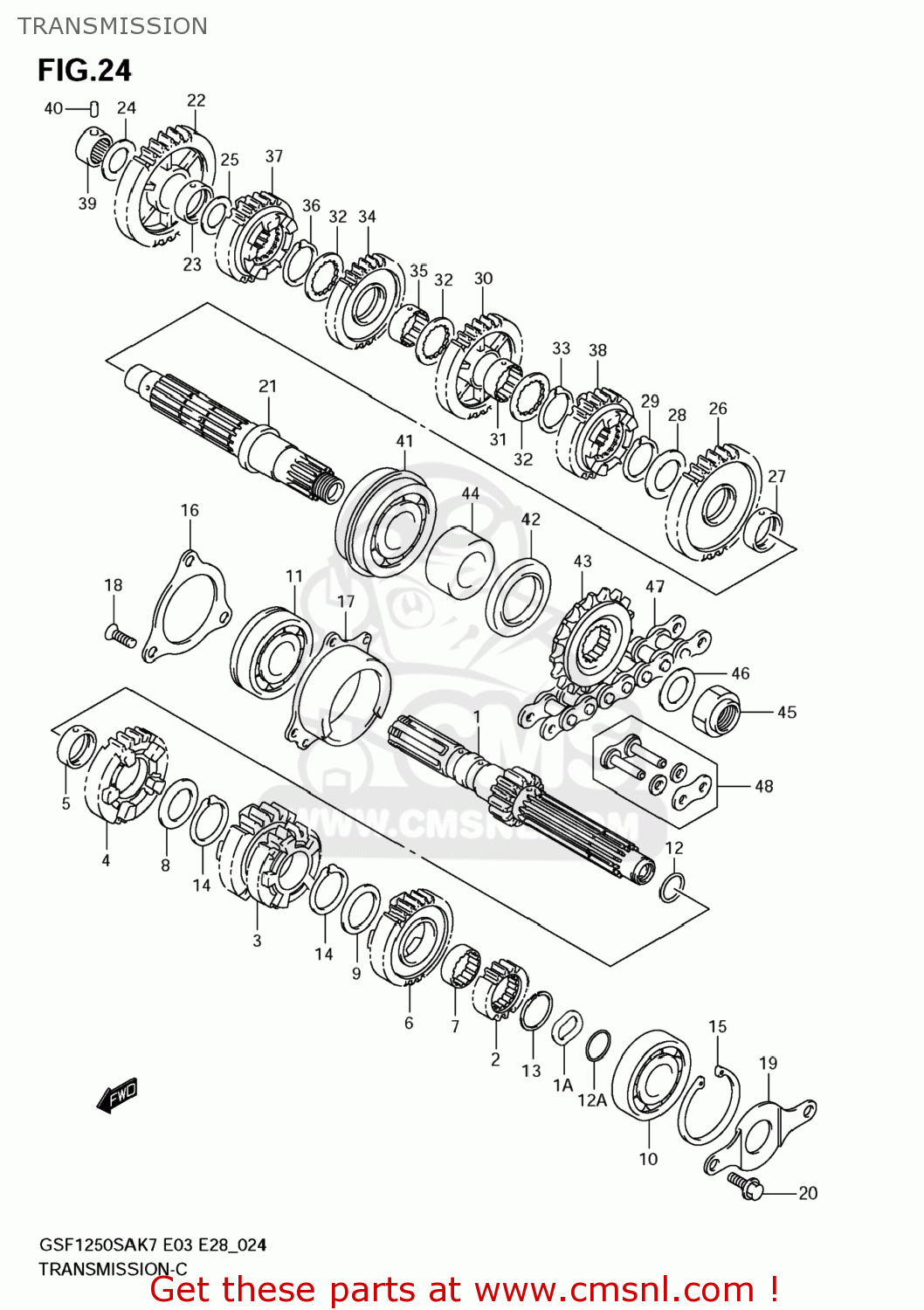

Transmission diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

TRANSMISSION GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
TRANSMISSION GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
TRANSMISSION GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
2412018H00
ref: 1
SHAFT,COUNTER(NT:13)
2412018H00
€ 244.50
1A
2412718H00
ref: 1A
WASHER,COUNTER SHAFT WAVE
2412718H00
€ 3.00
2
2422118H00
ref: 2
24221-18H10
GEAR,2ND DRIVE
2422118H00
€ 107.00
3
2423118H00
ref: 3
GEAR,3RD & 4TH DRIVE(NT:20/23)
2423118H00
€ 166.00
4
2425118H00
ref: 4
GEAR,5TH DRIVE(NT:25)
2425118H00
€ 140.00
5
2425235F00
ref: 5
BUSH,5TH DRIVE GEAR
2425235F00
€ 13.00
6
2426118H00
ref: 6
GEAR,6TH DRIVE(NT:28)
2426118H00
€ 132.50
7
2426235F00
ref: 7
BUSH,6TH DRIVE GEAR
2426235F00
€ 19.50
8
0916027008
ref: 8
WASHER(27X36X1)
0916027008
€ 3.00
9
0916727001
ref: 9
WASHER,LOCK
0916727001
€ 3.50
10
0926220080
ref: 10
BEARING(20X52X15)
0926220080
€ 21.50
11
0926225073
ref: 11
BEARING(25X62X17)
0926225073
€ 21.50
12
0928017004
ref: 12
O RING(D:1.9,ID:16.6)
0928017004
€ 3.00
12A
0928020001
ref: 12A
O RING(D:1,ID:19.5)
0928020001
€ 2.00
13
0938027004
ref: 13
CIRCLIP
0938027004
€ 3.50
14
0938027006
ref: 14
CIRCLIP
0938027006
€ 2.50
15
083314152A
ref: 15
CIRCLIP
€ 3.00
16
2475118H00
ref: 16
RETAINER,CNTR SHAFT BEARING,R
2475118H00
€ 13.50
17
2477118H00
ref: 17
HOUSING,CNTR SHAFT BRG,R
2477118H00
€ 76.00
18
0913906159
ref: 18
SCREW(6X20)
0913906159
€ 2.50
19
2474118H00
ref: 19
RETAINER,CL PUSH ROD OIL SEAL
€ 5.50
20
0910306236
ref: 20
BOLT(6X12)
0910306236
€ 3.00
21
2413118H10
ref: 21
SHAFT,DRIVE
2413118H10
€ 198.50
22
2431118H00
ref: 22
GEAR,1ST DRIVEN(NT:40)
2431118H00
€ 155.50
23
2431202F00
ref: 23
BUSH
2431202F00
€ 19.50
24
0918120251
ref: 24
SHIM(20X34X1)
0918120251
€ 3.00
25
0918122223
ref: 25
SHIM(22X34X1)
0918122223
€ 3.00
26
2432118H00
ref: 26
GEAR,2ND DRIVEN(NT:35)
2432118H00
€ 109.00
27
2432202F01
ref: 27
BUSH,2ND DRIVEN GEAR
2432202F01
€ 11.00
28
0916027008
ref: 28
WASHER(27X36X1)
0916027008
€ 3.00
29
0938027006
ref: 29
CIRCLIP
0938027006
€ 2.50
30
2433118H00
ref: 30
GEAR,3RD DRIVEN(NT:31)
2433118H00
€ 130.00
31
2426217E01
ref: 31
BUSH
2426217E01
€ 29.00
32
2433302F00
ref: 32
WASHER,3RD & 4TH DRIVEN
2433302F00
€ 3.50
33
0938027006
ref: 33
CIRCLIP
0938027006
€ 2.50
34
2434118H00
ref: 34
GEAR,4TH DRIVEN(NT:30)
2434118H00
€ 137.00
35
2426217E01
ref: 35
BUSH
2426217E01
€ 29.00
36
0938027006
ref: 36
CIRCLIP
0938027006
€ 2.50
37
2435118H00
ref: 37
GEAR,5TH DRIVEN(NT:29)
2435118H00
€ 135.00
38
2436118H00
ref: 38
GEAR,6TH DRIVEN(NT:30)
2436118H00
€ 124.00
39
0926320087
ref: 39
BEARING(20X34X13.5)
0926320087
€ 31.50
40
0926106003
ref: 40
PIN(6X10)
0926106003
€ 1.50
41
0926730011
ref: 41
BEARING(30X62X23.8)
0926730011
€ 103.50
42
0928342018
ref: 42
SEAL,OIL(42X62X7)
0928342018
€ 33.00
43
2751021A40
ref: 43
SPROCKET,ENGINE(NT:18)
2751021A40
€ 69.00
44
2753118H00
ref: 44
SPACER,ENGINE SPROCKET
2753118H00
€ 22.00
45
0915920004
ref: 45
NUT
0915920004
€ 12.00
46
0916025035
ref: 46
WASHER(25X40X1.4)
0916025035
€ 4.00
47
2760024F20120
ref: 47
CHAIN,DRIVE(RK50GSVZ3M)
€ 243.00
48
2762024F20
ref: 48
JOINT SET
2762024F20
€ 8.00
