WIRING HARNESS (GSF1250SK7/SK8/SK9)

GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

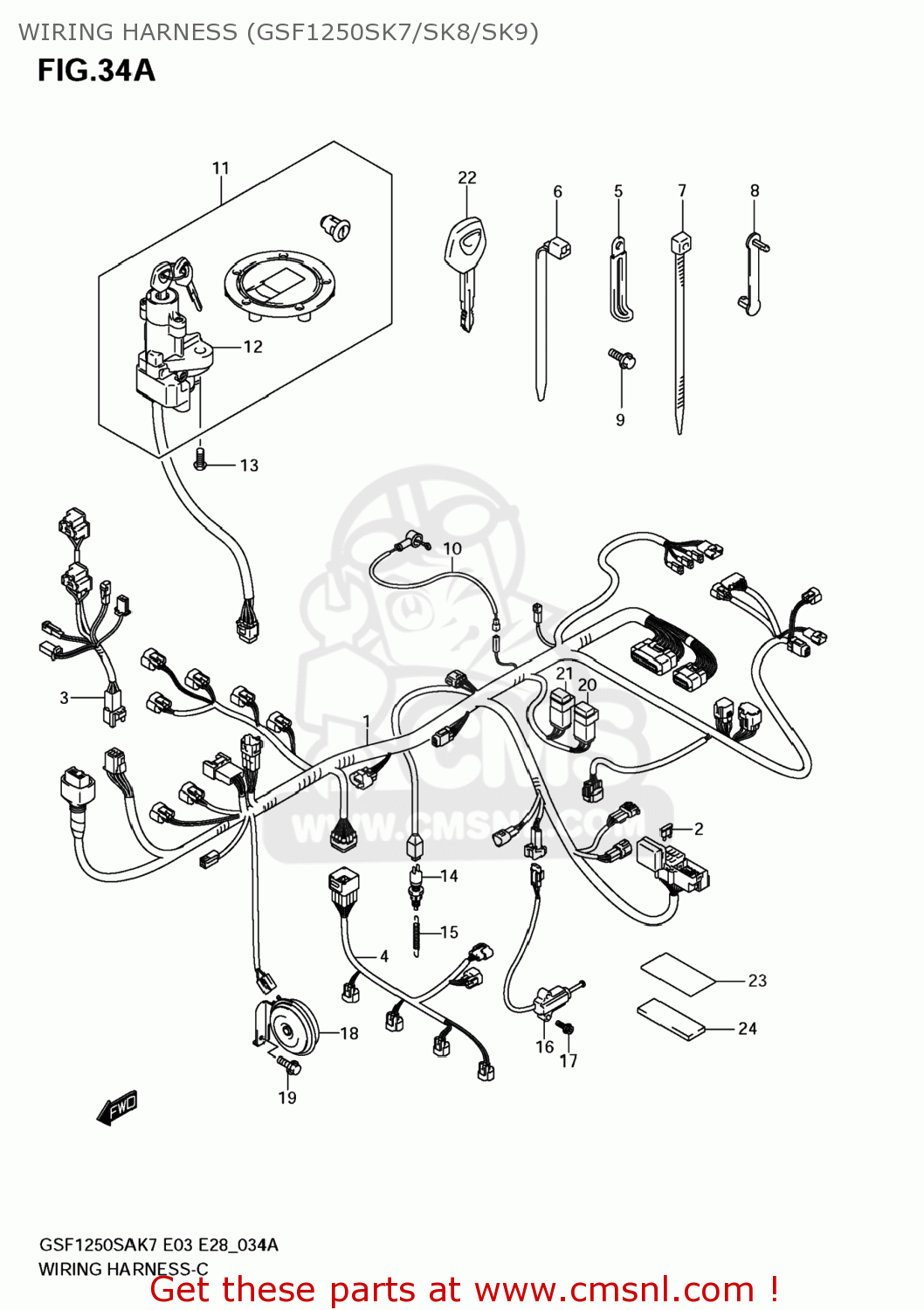

Wiring harness (gsf1250sk7/sk8/sk9) diagram GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)

WIRING HARNESS (GSF1250SK7/SK8/SK9) GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
WIRING HARNESS (GSF1250SK7/SK8/SK9) GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
WIRING HARNESS (GSF1250SK7/SK8/SK9) GSF1250SA BANDIT 2009 (K9) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
3661018H90
ref: 1
HARNESS,WIRING NO.1
€ 524.50
2-1
0948110501
ref: 2-1
FUSE(10A)
0948110501
€ 3.00
2-2
0948115501
ref: 2-2
FUSE(15A)
0948115501
€ 1.00
3
3662038G00
ref: 3
HARNESS,WIRING NO.2
€ 122.50
4
3685918H00
ref: 4
WIRE,INJECTOR LEAD
€ 109.00
5-1
0940406429
ref: 5-1
CLAMP(L:45)
€ 2.50
5-2
0940406433
ref: 5-2
CLAMP(L:80)
0940406433
€ 3.00
6-1
0940711401
ref: 6-1
CLAMP(L:95)
0940711401
€ 2.50
6-2
0940714403
ref: 6-2
CLAMP(L:125)
0940714403
€ 2.50
6-3
0940718402
ref: 6-3
CLAMP(L:165)
0940718402
€ 2.50
6-4
0940725401
ref: 6-4
CLAMP(L:235)
0940725401
€ 4.00
7
0940714407
ref: 7
CLAMP(L:145)
0940714407
€ 4.00
8
0940703401
ref: 8
CLAMP(L:33)
0940703401
€ 3.50
9
015500612A
ref: 9
BOLT
015500612A
€ 2.50
10
3685118H00
ref: 10
WIRE,OIL PRESSURE SWITCH LEAD
3685118H00
€ 14.50
11
3700049830
ref: 11
37000-49831
LOCK SET
€ 295.00
12
3710049G00
ref: 12
37100-49G01
LOCK ASSY,STEE
€ 165.00
13
0913908016
ref: 13
BOLT(8X20)
0913908016
€ 3.50
14
3774024A00
ref: 14
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
15
0944306054
ref: 15
SPRING
0944306054
€ 2.50
16
3784025D00
ref: 16
SWITCH ASSY,SIDE STAND
3784025D00
€ 63.50
17
071200620B
ref: 17
BOLT
071200620B
€ 3.50
18
3850018H00
ref: 18
HORN ASSY
3850018H00
€ 73.00
19
015500612B
ref: 19
BOLT
015500612B
€ 2.50
20
3874024X50
ref: 20
RELAY ASSY
3874024X50
€ 37.50
21
3874024X50
ref: 21
RELAY ASSY
3874024X50
€ 37.50
22
3714633E00
ref: 22
KEY,BLANK
3714633E00
€ 13.00
23
6313110F00
ref: 23
TAPE,RR FENDER
6313110F00
€ 6.00
24
3365238A10
ref: 24
33652-07D00
PROTECTOR(20X90)X2
€ 4.50
