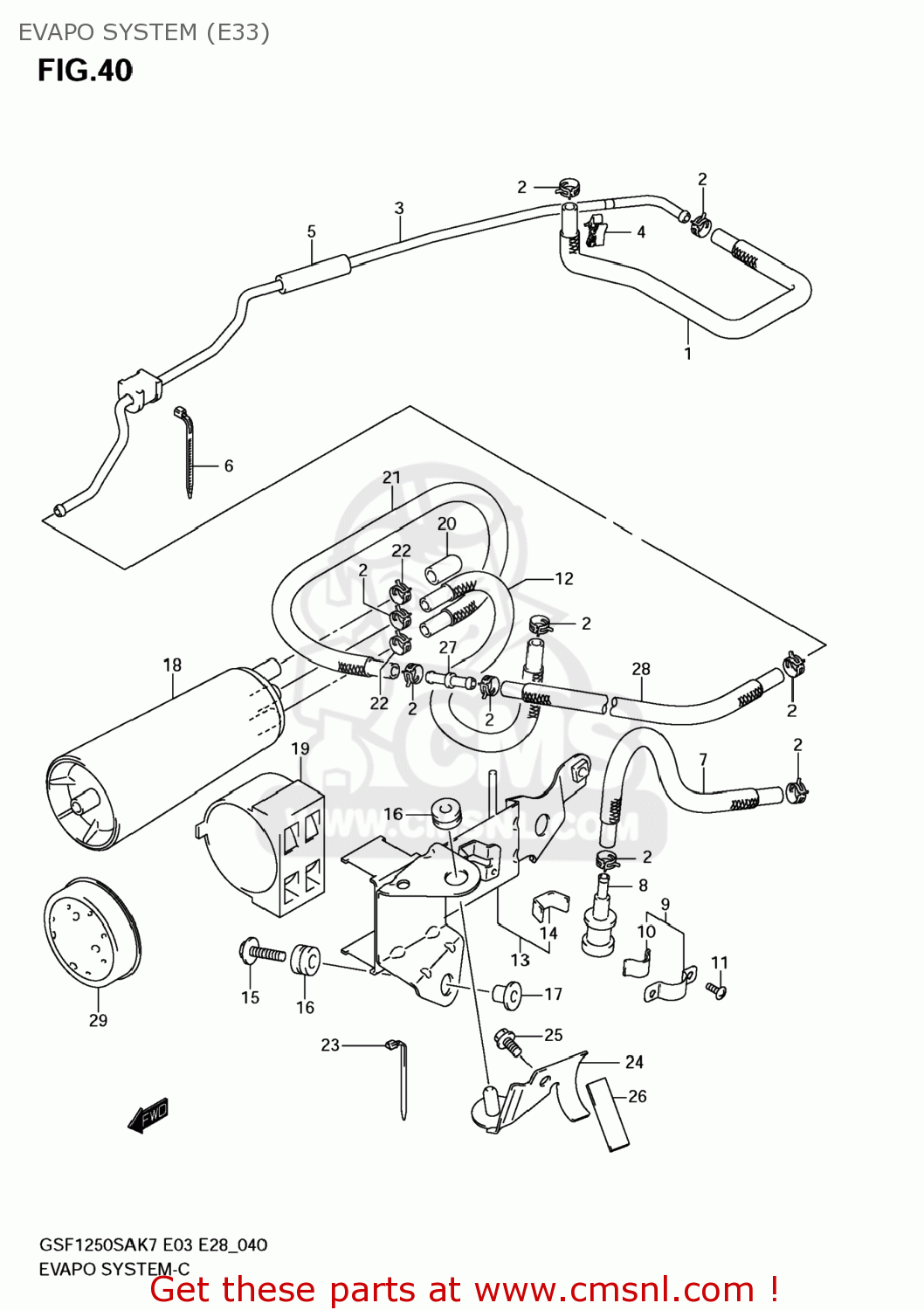

EVAPO SYSTEM (E33)

ref

part #

description

quantity

1-1

4443418H00
ref: 1-1

HOSE,TANK & BREATHER VALVE

€ 0.00

1-2

4443418H20
ref: 1-2

HOSE,TANK & BREATHER VALVE

€ 31.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4495018H00
ref: 3

PIPE,TANK & BREATHER

€ 19.00

4

0940306325
ref: 4

CLAMP

€ 2.50

5

5314605G00
ref: 5

CUSHION,FR FENDER SIDE

€ 3.00

6-1

0940714407
ref: 6-1

CLAMP(L:145)

€ 4.00

6-2

0940711401
ref: 6-2

CLAMP(L:95)

€ 2.50

7-1

4443418H10
ref: 7-1

HOSE,TANK & BRTHR VALVE NO.2

€ 0.00

7-2

4443418H30
ref: 7-2

HOSE,TANK & BRTHR VALVE NO.2

€ 19.00

8

4424038A00
ref: 8

VALVE,FUEL TANK BREATHER

€ 35.00

9

4489224A00
ref: 9

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

10

4489424A00
ref: 10

CUSHION

€ 1.50

11

021420410B
ref: 11

SCREW

€ 1.50

12-1

4443549G00
ref: 12-1

HOSE,CSTR & BREATHER VALVE

€ 0.00

12-2

4443549G10
ref: 12-2

HOSE,CSTR & BREATHER VALVE

€ 25.50

13

4488018H00
ref: 13

BRACKET,CANISTER

€ 93.50

14

4489424A00
ref: 14

CUSHION

€ 1.50

15

0911606150
ref: 15

BOLT(6X25)

€ 2.50

16

0932008001
ref: 16

CUSHION

€ 3.50

17

0916906062
ref: 17

WASHER

€ 3.00

18

1721026E00
ref: 18

CANISTER ASSY,CHARCOAL

€ 261.50

19

4488306G00
ref: 19

CUSHION,CANISTER

€ 8.00

20

0925107003
ref: 20

CAP,OD:11.5

€ 2.00

21-1

4443618H00
ref: 21-1

HOSE,CSTR & PURGE VALVE

€ 0.00

21-2

4443618H20
ref: 21-2

HOSE,CSTR & PURGE VALVE

€ 28.00

22

0940112404
ref: 22

CLIP

€ 2.50

23

0940312411
ref: 23

CLAMP

€ 2.50

24

4489049G00
ref: 24

BRACKET,EVAP SYSTEM

€ 0.00

25

015500616B
ref: 25

BOLT

€ 2.50

26

4716110FA0
ref: 26

CUSHION,BRACKET NO.1

€ 5.00

27

0936706009
ref: 27

JOINT

€ 2.50

28-1

4443618H10
ref: 28-1

HOSE SET,CSTR & PURGE VALVE NO

€ 14.00

28-2

4443618H30
ref: 28-2

HOSE,CSTR & PURGE VALVE NO.2

€ 26.50

29

1721148E00
ref: 29

CAP,CANISTER

€ 14.50

all assemblies
