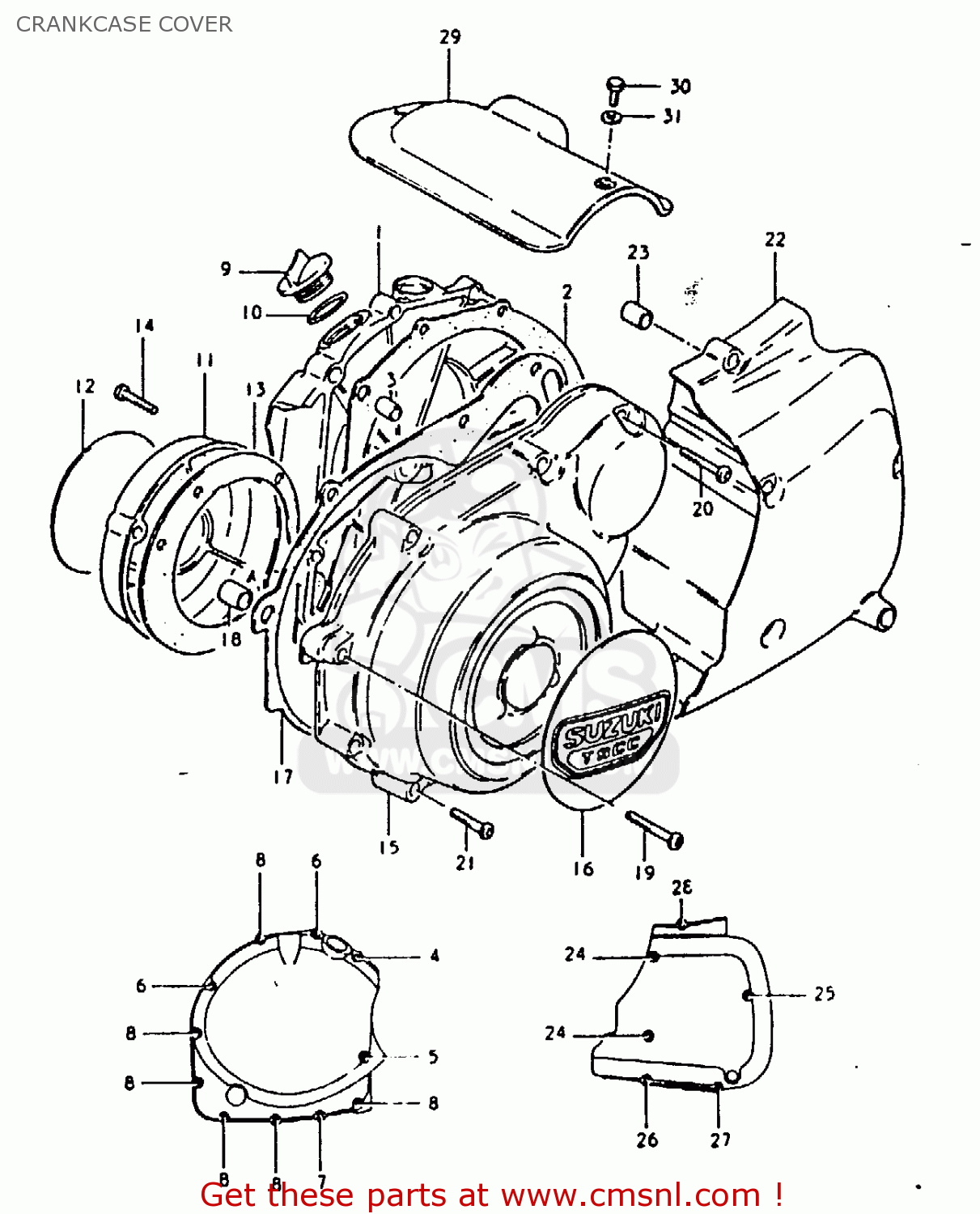

CRANKCASE COVER

ref

part #

description

quantity

1

1134049200
ref: 1

COVER,CLUTCH

€ 250.00

2

1148249201
ref: 2

GASKET,CLUTCH COVER (MCA)

€ 39.00

3

0421109129
ref: 3

PIN

€ 2.00

4

0211206408
ref: 4

SCREW

€ 2.00

5

0211206358
ref: 5

SCREW (6X35)

€ 2.50

6

0211206308
ref: 6

SCREW 6X30

€ 2.50

7

0211206258
ref: 7

SCREW

€ 2.00

8

0211206208
ref: 8

SCREW

€ 2.00

9

0925930001
ref: 9

CAP

€ 8.50

10

0928032005
ref: 10

O RING(D:2.2,ID:32)

€ 2.00

11

1138149201
ref: 11
FROM 11381-49200

COVER,CONTACT BREAKER

€ 49.00

12

6823549200
ref: 12

EMBLEM

€ 19.50

13

1149149200
ref: 13

GASKET,CONTACT BREAKER COVER (NAS)

€ 14.50

14

0211205308
ref: 14

SCREW

€ 1.50

15

1135149200
ref: 15

COVER

€ 186.00

16

6823349200
ref: 16

EMBLEM,MAGNETO COVER

€ 29.50

17

1148349200
ref: 17

GASKET,MAGNETO COVER (MCA)

€ 13.00

18

0920613001
ref: 18

PIN

€ 2.50

19

0211206458
ref: 19

SCREW (6X45)

€ 2.00

20

0211206408
ref: 20

SCREW

€ 2.00

21-1

0211206358
ref: 21-1

SCREW (6X35)

€ 2.50

21-2

0211206308
ref: 21-2

SCREW 6X30

€ 2.50

22

1136049200
ref: 22

COVER,SPROCKET

€ 127.00

23

0421109129
ref: 23

PIN

€ 2.00

24

0211206958
ref: 24

SCREW (6*95)

€ 2.50

25

0211206858
ref: 25

SCREW 6X85

€ 2.50

26

0211206708
ref: 26

SCREW 6X70

€ 3.00

27

0211206557
ref: 27

SCREW

€ 2.50

28

0211206308
ref: 28

SCREW 6X30

€ 2.50

29

1138249002
ref: 29

COVER,STARTER MOTOR

€ 43.00

30

0110405108
ref: 30

BOLT

€ 1.50

31

0832221058
ref: 31

WASHER

€ 2.50
