FRONT FORK (GSX1100ET F.NO.505168~/GSX1100EX)

GSX1100 1980 (T) GENERAL EXPORT (E01)

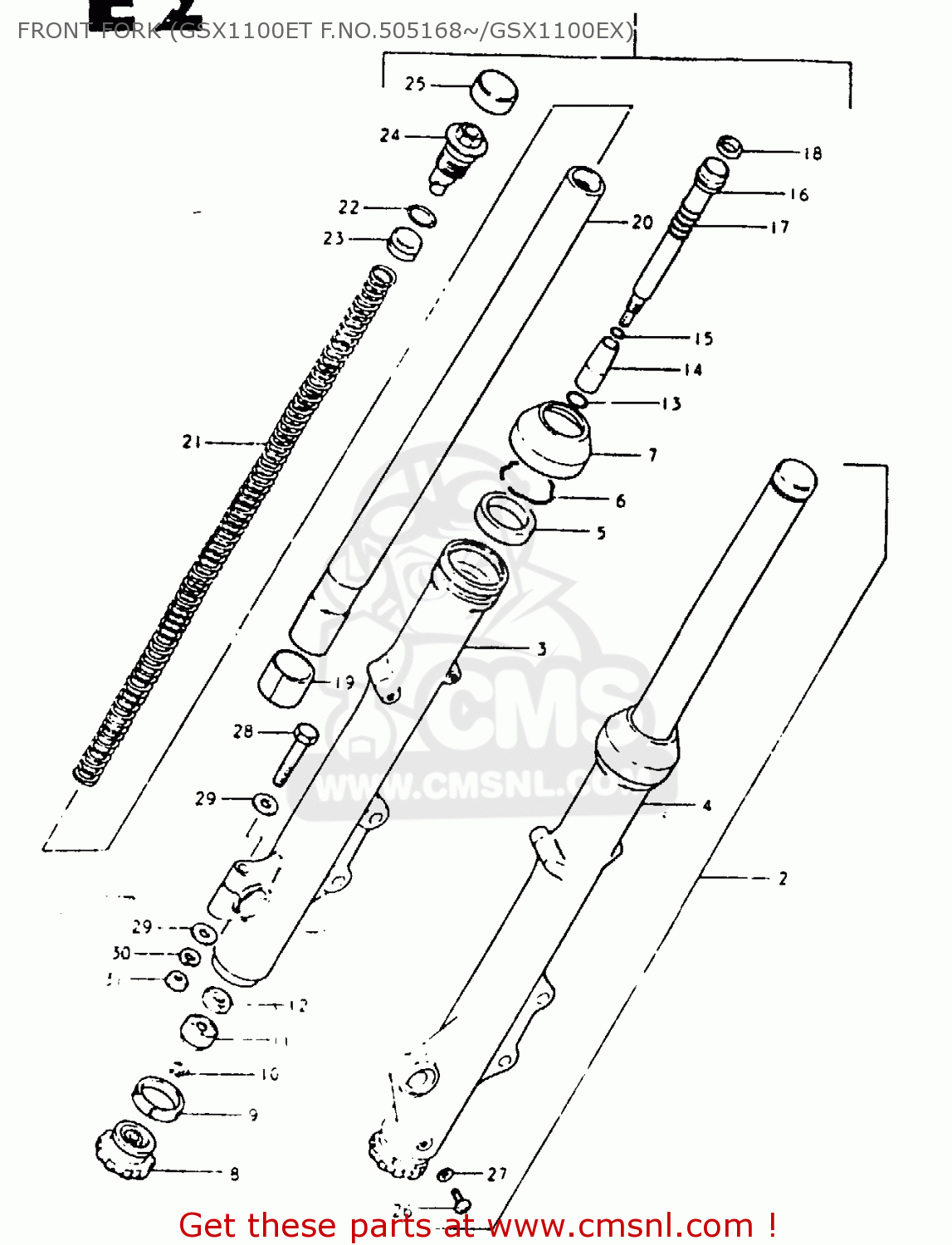

Front fork (gsx1100et f.no.505168~/gsx1100ex) diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

FRONT FORK (GSX1100ET F.NO.505168~/GSX1100EX) GSX1100 1980 (T) GENERAL EXPORT (E01)
FRONT FORK (GSX1100ET F.NO.505168~/GSX1100EX) GSX1100 1980 (T) GENERAL EXPORT (E01)
FRONT FORK (GSX1100ET F.NO.505168~/GSX1100EX) GSX1100 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5110349211
ref: 1
DAMPER ASSY, RH
€ 0.00
2
5110449211
ref: 2
DAMPER ASSY, LH
€ 0.00
3
5113049200
ref: 3
OUTER TUBE, RH
5113049200
€ 204.00
4
5114049200
ref: 4
OUTER TUBE, LH
5114049200
€ 179.00
5
5115349000
ref: 5
OIL SEAL,FRONT FORK
5115349000
€ 16.50
6
5115640301
ref: 6
RING,STOPPER
5115640301
€ 4.50
7
5117349002
ref: 7
SEAL,DUST
5117349002
€ 13.00
8
5128649200
ref: 8
HANDLE
5128649200
€ 56.00
9
5128749200
ref: 9
RING
5128749200
€ 12.50
10
5128549200
ref: 10
CIRCLIP
5128549200
€ 2.00
11
5128449200
ref: 11
DETENT
5128449200
€ 27.50
12
5114749200
ref: 12
NUT
€ 8.50
13
5114849200
ref: 13
O RING
5114849200
€ 4.50
14
5119549200
ref: 14
PIECE, OIL LOCK
5119549200
€ 16.50
15
5119949200
ref: 15
O RING
€ 2.50
16
5114649211
ref: 16
CYLINDER
€ 85.50
17
5117749200
ref: 17
SPRING,FORK REBOUND
5117749200
€ 7.00
18
5119649000
ref: 18
RING,PISTON
5119649000
€ 9.00
19
5112149200
ref: 19
PISTON
5112149200
€ 18.00
20
5111049210
ref: 20
INNER TUBE
€ 245.00
21
5117149211
ref: 21
SPRING
€ 0.00
22
5111745110
ref: 22
O-RING
5111745110
€ 4.00
23
5117245110
ref: 23
PISTON,FREE
5117245110
€ 10.50
24
5135149200
ref: 24
CAP
5135149200
€ 59.00
25
5118945110
ref: 25
CAP
5118945110
€ 9.00
26
0211204088
ref: 26
SCREW
€ 1.50
27
5118303010
ref: 27
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
28
0110708508
ref: 28
BOLT 8X50
€ 3.00
29
0832221088
ref: 29
WASHER
0832221088
€ 2.00
30
0832131088
ref: 30
WASHER,LOCK,8.
€ 2.00
31
0831012088
ref: 31
NUT
0831012088
€ 2.00
