FRONT MASTER CYLINDER

GSX1100 1980 (T) GENERAL EXPORT (E01)

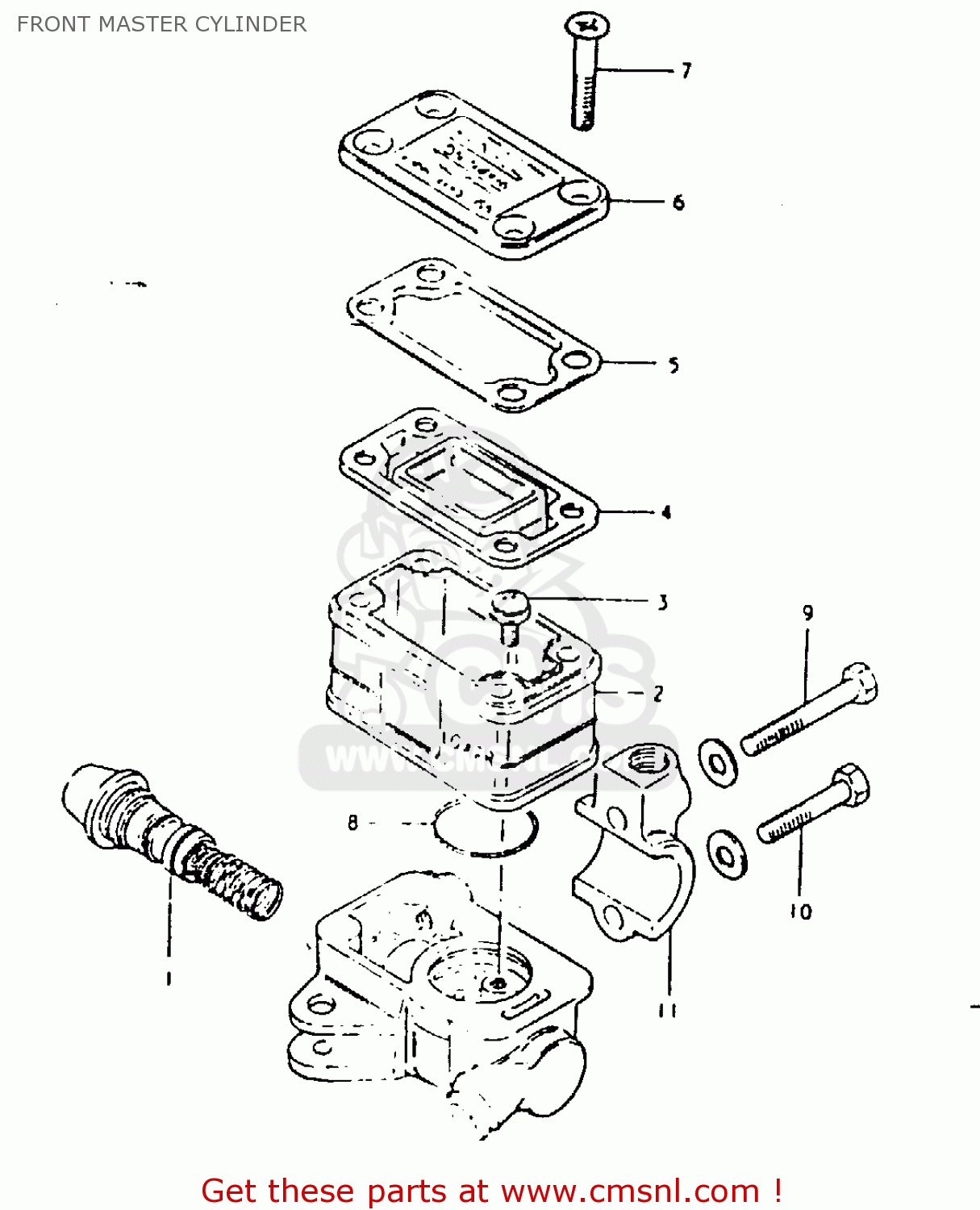

Front master cylinder diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GSX1100 1980 (T) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960049000
ref: 0
GSX1100ET, GSX1100T

CYLINDER ASSY, MASTER

€ 230.50

0

5960049001
ref: 0
GSX1100EX, GSX1100X

CYLINDER ASSEMBLY,MASTER

€ 230.50

1

5960049810
ref: 1

PISTON & CUP SET

€ 48.50

2

5968749000
ref: 2

RESERVOIR

€ 24.00

3

5968849000
ref: 3

SCREW,MASTER C

€ 1.00

4

5966749000
ref: 4

DIAPHRAGM

€ 19.50

5

5966849000
ref: 5

PLATE,DIAPHRAGM

€ 7.00

6

5966949000
ref: 6

CAP

€ 25.00

7

5969149000
ref: 7

SCREW

€ 4.50

8

5968649000
ref: 8

O RING

€ 6.50

9-1

5969449000
ref: 9-1
GSX1100ET, GSX1100T

BOLT,MASTER CYLINDER H

€ 3.00

9-2

5969449001
ref: 9-2
GSX1100EX, GSX1100X

BOLT,MASTER CYLINDER H

€ 3.00

10-1

5969349000
ref: 10-1
GSX1100ET, GSX1100T

BOLT,MASTER CYLINDER H

€ 4.00

10-2

5969349001
ref: 10-2
GSX1100EX, GSX1100X

BOLT,MASTER CYLINDER H

€ 4.00

11

5967149000
ref: 11

HOLDER

€ 22.50
