OIL PUMP - OIL FILTER

GSX1100 1980 (T) GENERAL EXPORT (E01)

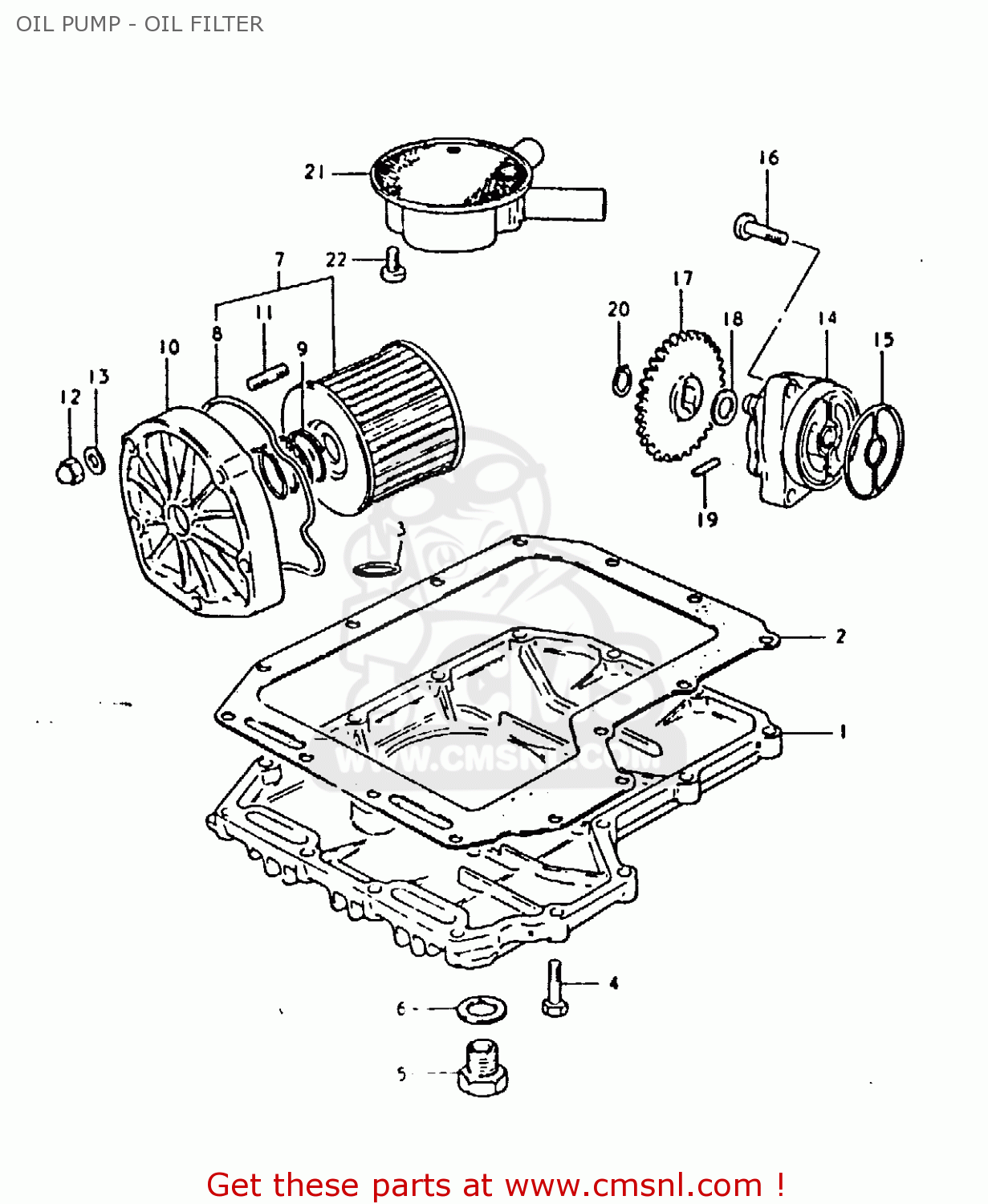

Oil pump - oil filter diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

OIL PUMP - OIL FILTER GSX1100 1980 (T) GENERAL EXPORT (E01)

OIL PUMP - OIL FILTER GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1151149200
ref: 1

PAN,OIL

€ 255.50

2

1148949200
ref: 2

GASKET,OIL PAN (MCA)

€ 13.00

3

0928013001
ref: 3

O RING(D:3.2,ID:12.9)

€ 4.00

4

0151706258
ref: 4

BOLT

€ 2.50

5

0924714001
ref: 5

PLUG

€ 5.00

6

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

7

1650045820
ref: 7

FILTER SET, ENGINE OIL

€ 11.50

8

1651849200
ref: 8

O RING,OIL FILTER CHAMBER CAP

€ 8.50

9

0944032004
ref: 9

SPRING

€ 13.50

10

1653149210
ref: 10

CAP,ENG OIL FLTR OUTER CHAMBER

€ 41.00

11

0142106258
ref: 11

STUD 6X25

€ 2.50

12

0831311068
ref: 12

NUT

€ 2.00

13

0832221068
ref: 13

WASHER

€ 2.00

14

1640049210
ref: 14

PUMP ASSEMBLY,OIL

€ 155.00

15

1649149200
ref: 15

O-RING,OIL PUMP

€ 12.50

16

0211206258
ref: 16

SCREW

€ 2.00

17

1633149990
ref: 17

GEAR,OIL PUMP DRIVEN

€ 84.50

18

0822110185
ref: 18

SHIM

€ 2.00

19

0926104009
ref: 19

PIN(4X15.8)

€ 1.50

20

0833131109
ref: 20

CIRCLIP

€ 2.00

21

1652049200
ref: 21

STRAINER,ENGINE OIL

€ 58.50

22

0211206128
ref: 22

SCREW 6X12

€ 2.00
