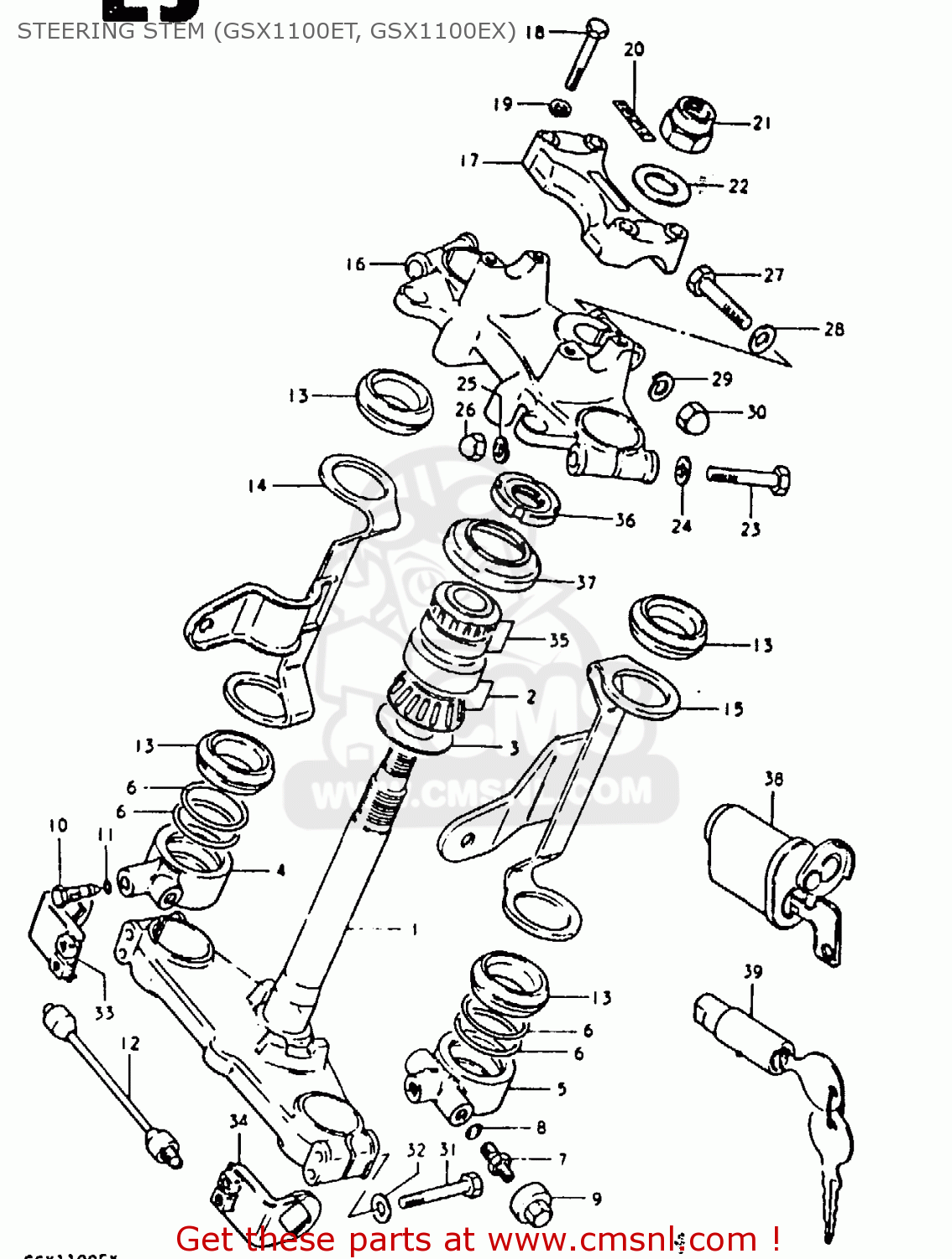

STEERING STEM (GSX1100ET, GSX1100EX)

ref

part #

description

quantity

1-1

5141049130291
ref: 1-1

STEM,STEERING

€ 161.00

2

0926530005
ref: 2

BEARING

€ 49.50

3

0821130402
ref: 3

WASHER,THRUST

€ 4.00

4

5143149200291
ref: 4

JOINT,AIR,RIGHT

€ 38.50

5

5143249200291
ref: 5

BRACKET,FORK CONNECTING

€ 48.50

6

5143649200
ref: 6

O RING

€ 3.00

7

5129349001
ref: 7

VALVE

€ 18.00

8

5111741211
ref: 8

O RING

€ 6.50

9

5129449000
ref: 9

CAP,VALVE

€ 22.50

10

5143449200
ref: 10

VALVE,STOP

€ 8.00

11

5143549200
ref: 11

O RING

€ 2.50

12

5143349200
ref: 12

HOSE

€ 22.50

13

5155349000
ref: 13

CUSHION,HEADLAMP BRACKET

€ 4.50

14

5153049200291
ref: 14

BRACKET,HEAD L

€ 56.00

15

5154049200291
ref: 15

BRACKET, HEAD LAMP LH

€ 45.50

16

5131149100291
ref: 16

HEAD,STEERING STEM

€ 141.50

17

5621149200291
ref: 17

HOLDER, HANDLE

€ 29.00

18

0120408357
ref: 18

BOLT

€ 3.50

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

5621245400
ref: 20

EMBLEM,HANDLE CLAMP

€ 4.00

21

5135345000
ref: 21

NUT,FR FORK UPR BRACKET

€ 10.50

22

5135631700
ref: 22

WASHER

€ 9.50

23

0110710558
ref: 23

BOLT 10X55

€ 3.50

24

0832221108
ref: 24

WASHER

€ 2.50

25

0832131108
ref: 25

LOCK WASHER

€ 2.00

26

0831311105
ref: 26

NUT 10MM

€ 2.00

27

0110708508
ref: 27

BOLT 8X50

€ 3.00

28

0832221088
ref: 28

WASHER

€ 2.00

29

0832131088
ref: 29

WASHER,LOCK,8.

€ 2.00

30

0831311085
ref: 30

NUT,M8X1.25X12

€ 2.00

31

0110708555
ref: 31

BOLT 8X55

€ 3.00

32

0832221088
ref: 32

WASHER

€ 2.00

33

5125149200291
ref: 33

BRACKET, TURN SIGNAL RH

€ 16.00

34

5125249200291
ref: 34

BRACKET, TURN SIGNAL LH

€ 15.50

35

0926525008
ref: 35

TAPER,ROLLER BEARING

€ 48.50

36

5163128000
ref: 36

NUT,STEERING STEM(25X44X10)

€ 12.50

37

5164349001
ref: 37

DUST SEAL,STEERING,UPPER

€ 7.50

38

NOTUSED
ref: 38

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

39

NOTUSED
ref: 39

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
