FRONT WHEEL (GSX1100T, GSX1100X)

GSX1100 1980 (T) GENERAL EXPORT (E01)

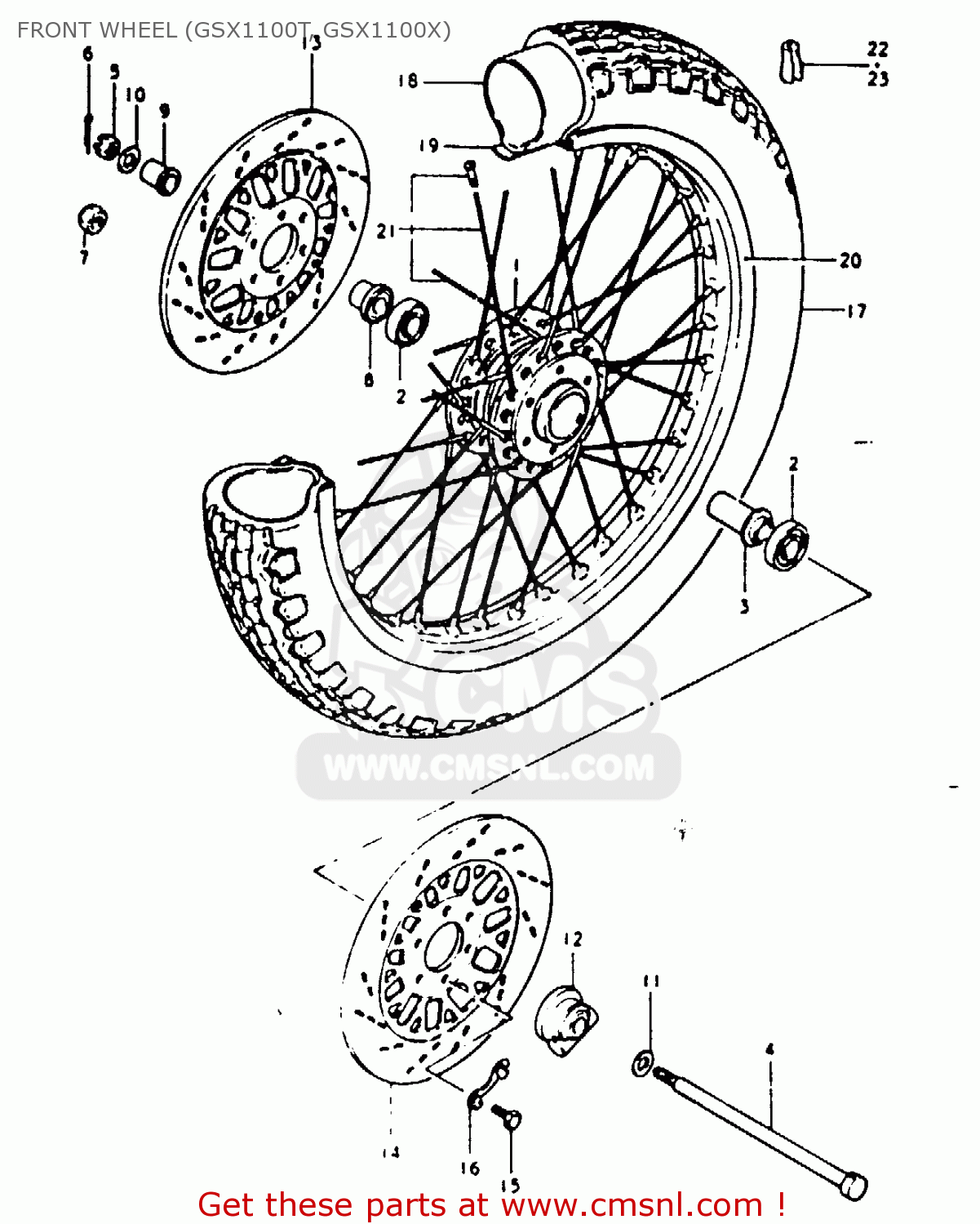

Front wheel (gsx1100t, gsx1100x) diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

FRONT WHEEL (GSX1100T, GSX1100X) GSX1100 1980 (T) GENERAL EXPORT (E01)

FRONT WHEEL (GSX1100T, GSX1100X) GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5411147001
ref: 1

DRUM,FRONT HUB

€ 194.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 13.00

4

5471149000
ref: 4

AXLE,FR

€ 79.50

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

0411130308
ref: 6

COTTER PIN

€ 1.50

7

NOTUSED
ref: 7

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8

5474018402
ref: 8

SPACER,FR AXLE,R

€ 18.50

9

5474149101
ref: 9

SPACER

€ 14.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

0916015002
ref: 11

WASHER(15.5X26X2.3)

€ 2.00

12

5460049100
ref: 12

BOX ASSY,SPEEDOMETER GEAR

€ 90.00

13

5921145250
ref: 13

DISC,FR BRAKE,R

€ 149.00

14

5922145250
ref: 14

DISC,FR BRAKE,L

€ 149.00

15

0910008140
ref: 15

BOLT(8X25)

€ 2.00

16

0916908016
ref: 16

WASHER

€ 3.50

17-1

5510049230
ref: 17-1

TIRE (3.50V19)

€ 0.00

17-2

NOTUSED
ref: 17-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

18

5520015010
ref: 18

TUBE,INNER

€ 41.00

19

5526115010
ref: 19

PROTECTOR,WHL INR TUBE

€ 2.50

20

5531149000
ref: 20

RIM,FRONT WHEEL

€ 0.00

21

5530049810
ref: 21

SPOKE SET,FRONT

€ 45.50

22

5541111000
ref: 22

BALANCER,WHEEL (B)

€ 4.50

23

5541211000
ref: 23

BALANCER,WHEEL (30G)

€ 8.00
