REAR COMBINATION LAMP (E2, E4, E21)

GSX1100 1980 (T) GENERAL EXPORT (E01)

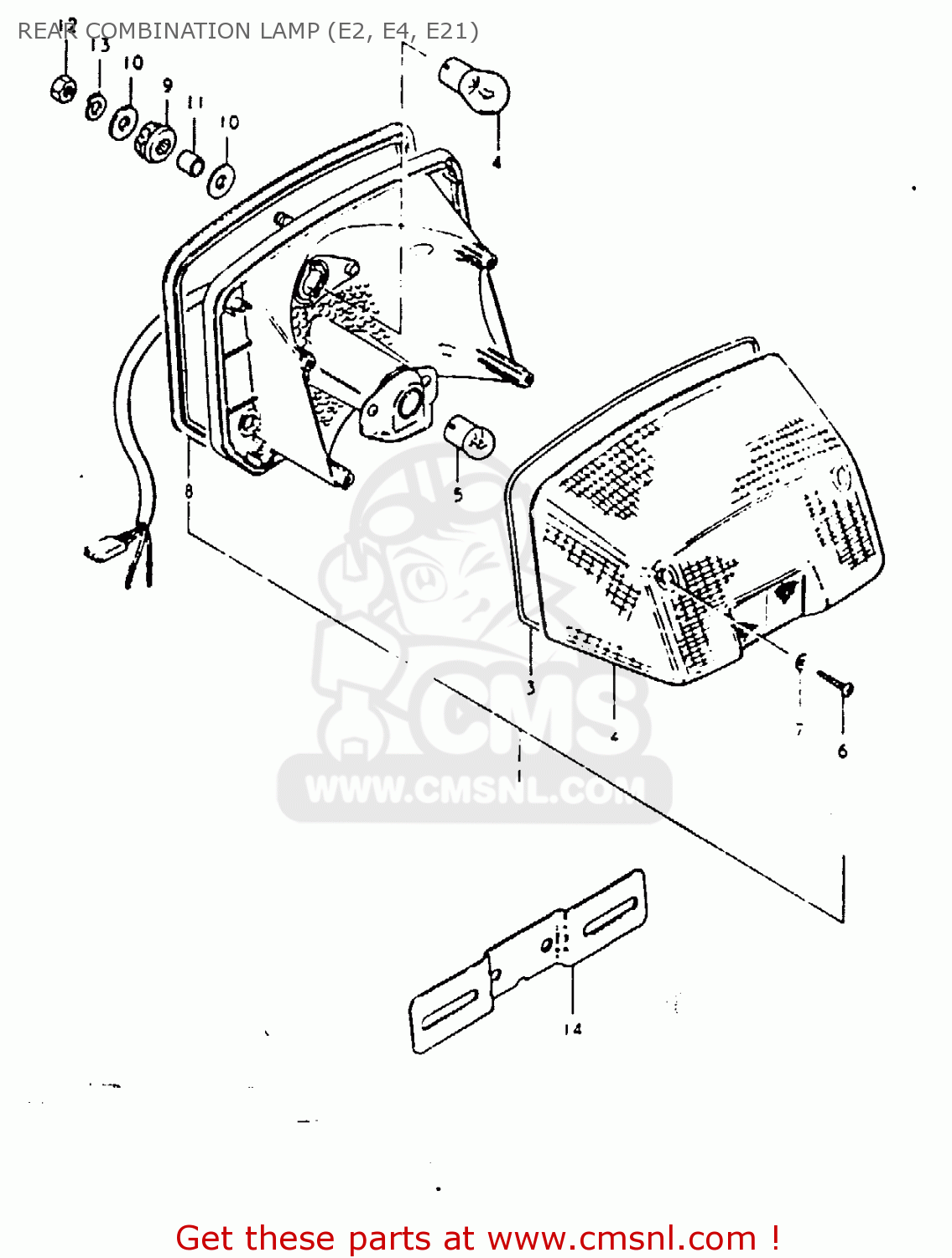

Rear combination lamp (e2, e4, e21) diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3571049221
ref: 1
FROM 35710-49220

LAMP ASSY, TAIL

€ 202.50

3571249221
ref: 2
FROM 35712-49220

LENS

€ 71.50

3571349230
ref: 3

GASKET (NAS)

€ 6.00

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

0947112058
ref: 5

BULB

€ 4.00

0321104208
ref: 6

SCREW

€ 1.50

3562743010
ref: 7

GASKET (NAS)

€ 2.00

3573349230
ref: 8

GASKET,REAR COMBINATION LAMP

€ 10.50

0932009010
ref: 9

CUSHION

€ 2.50

0916006060
ref: 10

WASHER

€ 2.00

0918006006
ref: 11

SPACER (6.8X10X11.5)

€ 3.00

0831011068
ref: 12

NUT

€ 2.50

0832121068
ref: 13

LOCK WASHER

€ 2.50

3592749210
ref: 14

PLATE, LICENSE

€ 10.00
