SIGNAL GENERATOR

GSX1100 1980 (T) GENERAL EXPORT (E01)

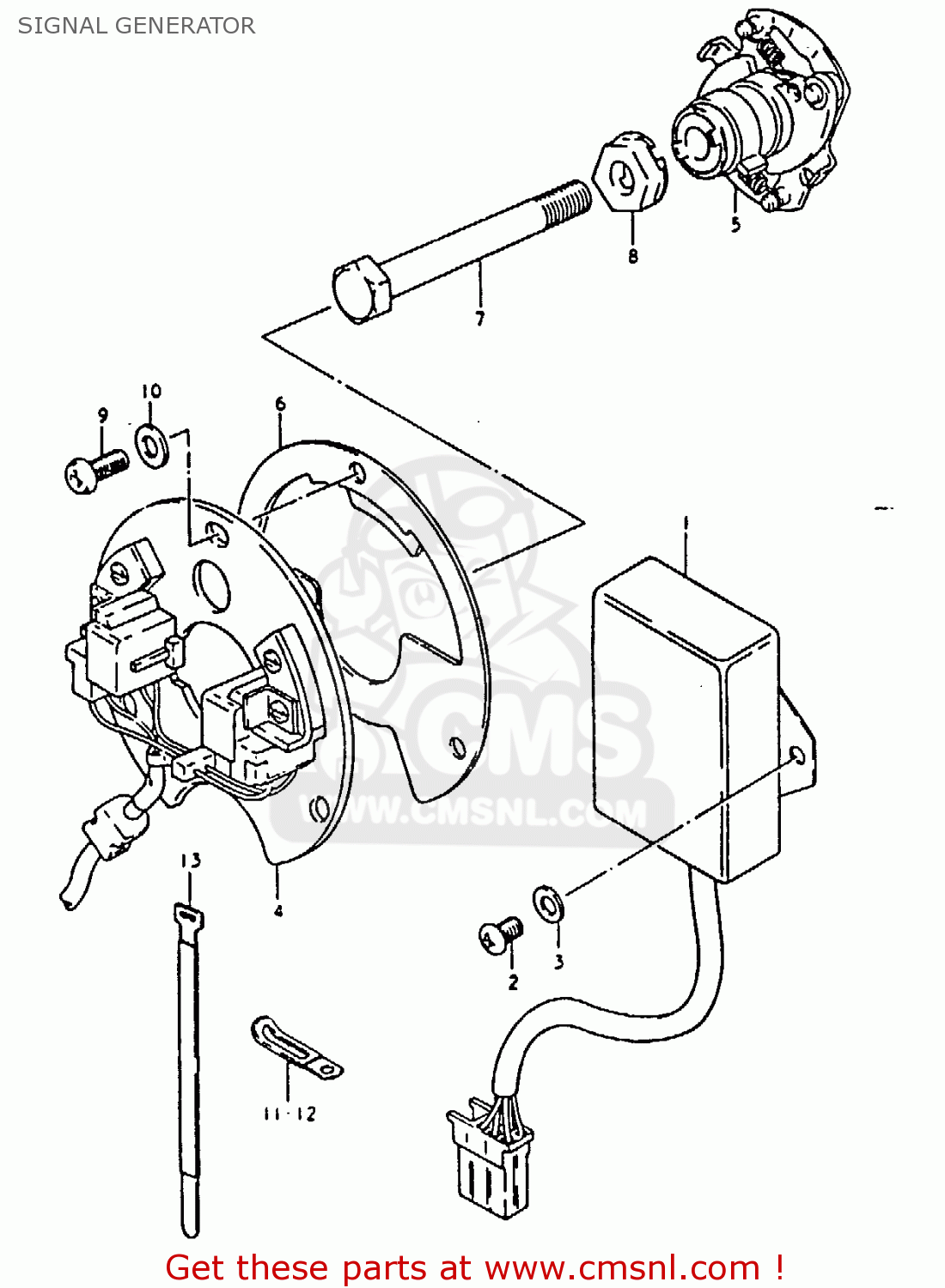

Signal generator diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3290045110
ref: 1

IGNITER UNIT

€ 492.50

0211206108
ref: 2

SCREW

€ 1.50

0832221068
ref: 3

WASHER

€ 2.00

3311045110
ref: 4

SIGNAL GENERATOR ASSEMBLY

€ 296.50

3312049210
ref: 5

GOVERNOR ASSEMBLY

€ 174.00

3337145100
ref: 6

PLATE,TIMING

€ 10.50

0110708658
ref: 7

BOLT

€ 3.00

3346547000
ref: 8

WASHER

€ 19.00

0912505024
ref: 9

SCREW(5X12)

€ 2.00

0916005027
ref: 10

WASHER

€ 2.50

0940406401
ref: 11

CLAMP L:35

€ 2.50

0940408401
ref: 12

CLAMP

€ 3.50

0940718301
ref: 13

CLAMP

€ 6.00
