GENERATOR

GSX1100 1980 (T) GENERAL EXPORT (E01)

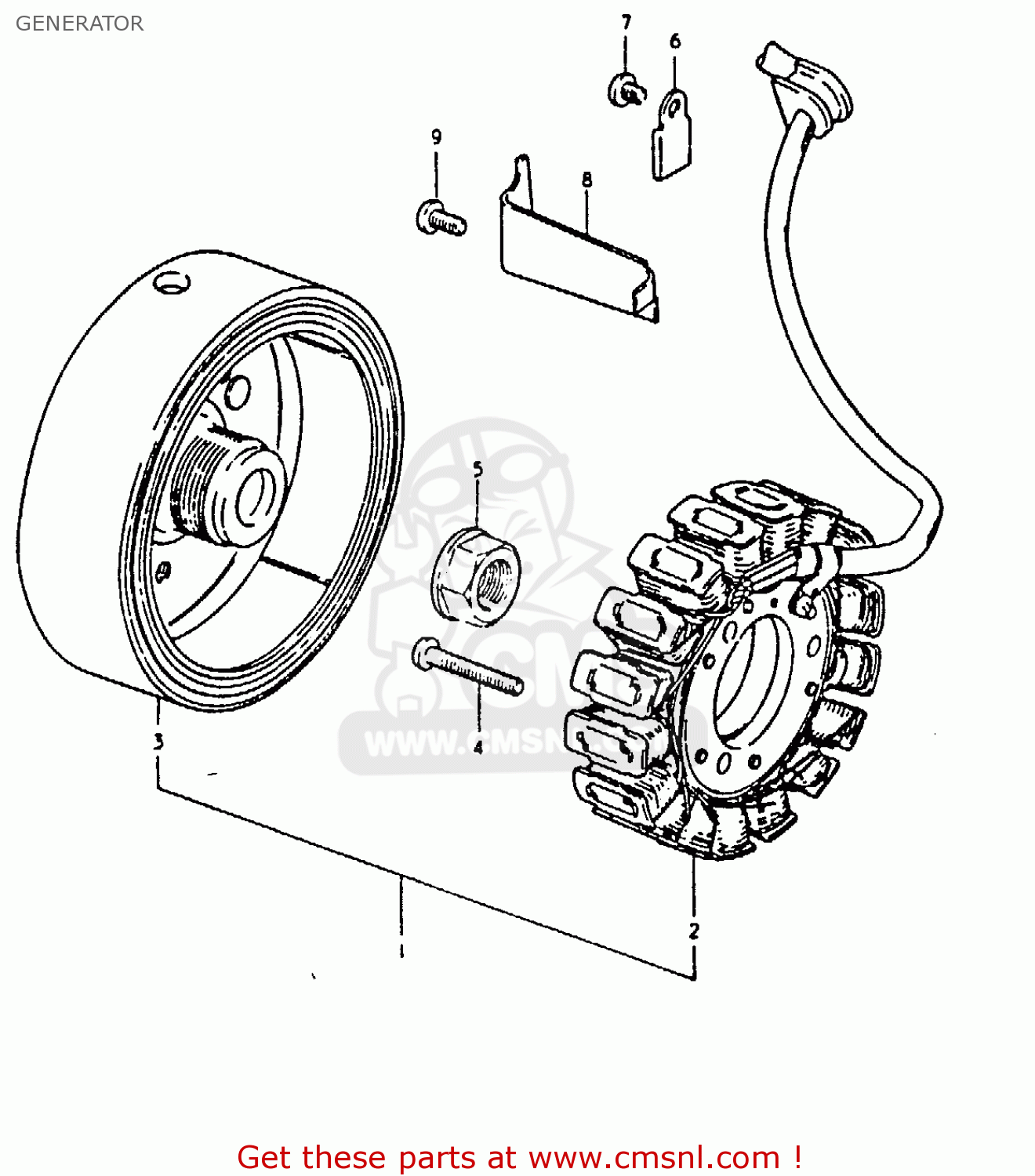

Generator diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

GENERATOR GSX1100 1980 (T) GENERAL EXPORT (E01)

GENERATOR GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3140049210
ref: 1

GENERATOR ASSEMBLY

€ 361.50

2

3140149210
ref: 2

STATOR ASSEMBLY

€ 361.50

3

3140249210
ref: 3

ROTOR ASSEMBLY

€ 292.00

4

0211206308
ref: 4

SCREW 6X30

€ 2.50

5

3179249200
ref: 5

NUT,GENERATOR ROTOR

€ 10.00

6

3149745000
ref: 6

CLAMP,GENERATOR LEAD WIRE

€ 1.50

7

0211205068
ref: 7

SCREW

€ 4.00

8

3149845000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 2.00

9

0211206108
ref: 9

SCREW

€ 1.50
