FRONT BRAKE HOSE

GSX1100 1980 (T) GENERAL EXPORT (E01)

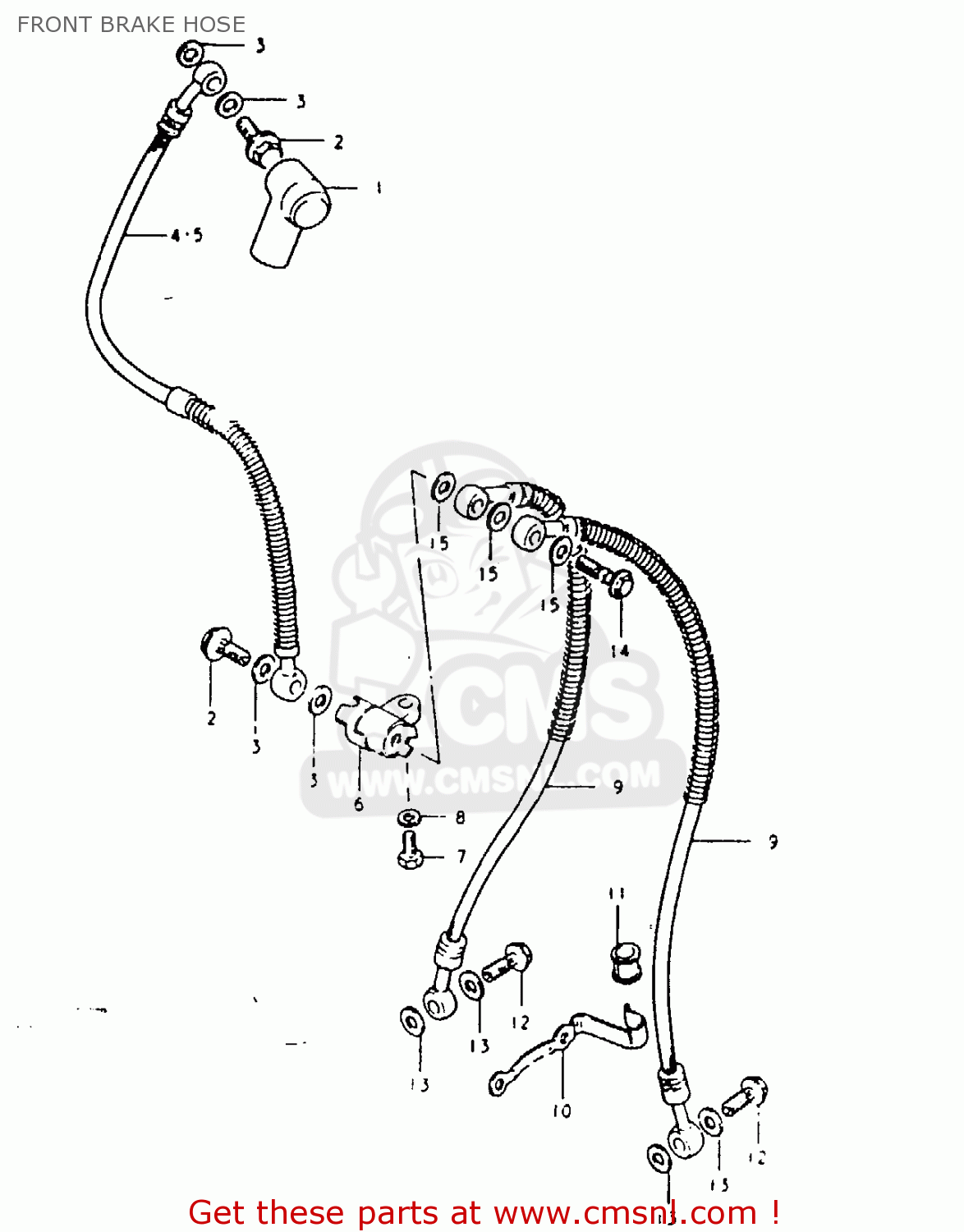

Front brake hose diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

0936010007
ref: 2

BOLT,UNION

€ 6.50

0916110005
ref: 3

WASHER

€ 2.00

5948045401
ref: 4

HOSE,FRONT BRAKE

€ 51.00

5948045630
ref: 5

HOSE,FRONT BRAKE

€ 42.00

5949145000
ref: 6

JOINT,BRAKE HOSE

€ 29.00

0110706208
ref: 7

BOLT

€ 2.00

0832121068
ref: 8

LOCK WASHER

€ 2.50

5924049200
ref: 9

HOSE, BRAKE NO.2

€ 59.50

5926849001
ref: 10

GUIDE,BRAKE HOSE NO.2

€ 7.00

5924449000
ref: 11

BUSH,BRAKE HOSE GUIDE,NO.2

€ 4.50

0936010007
ref: 12

BOLT,UNION

€ 6.50

0916110005
ref: 13

WASHER

€ 2.00

0936010008
ref: 14

BOLT,UNION

€ 7.00

0916110005
ref: 15

WASHER

€ 2.00
