LEFT HANDLE SWITCH

GSX1100 1980 (T) GENERAL EXPORT (E01)

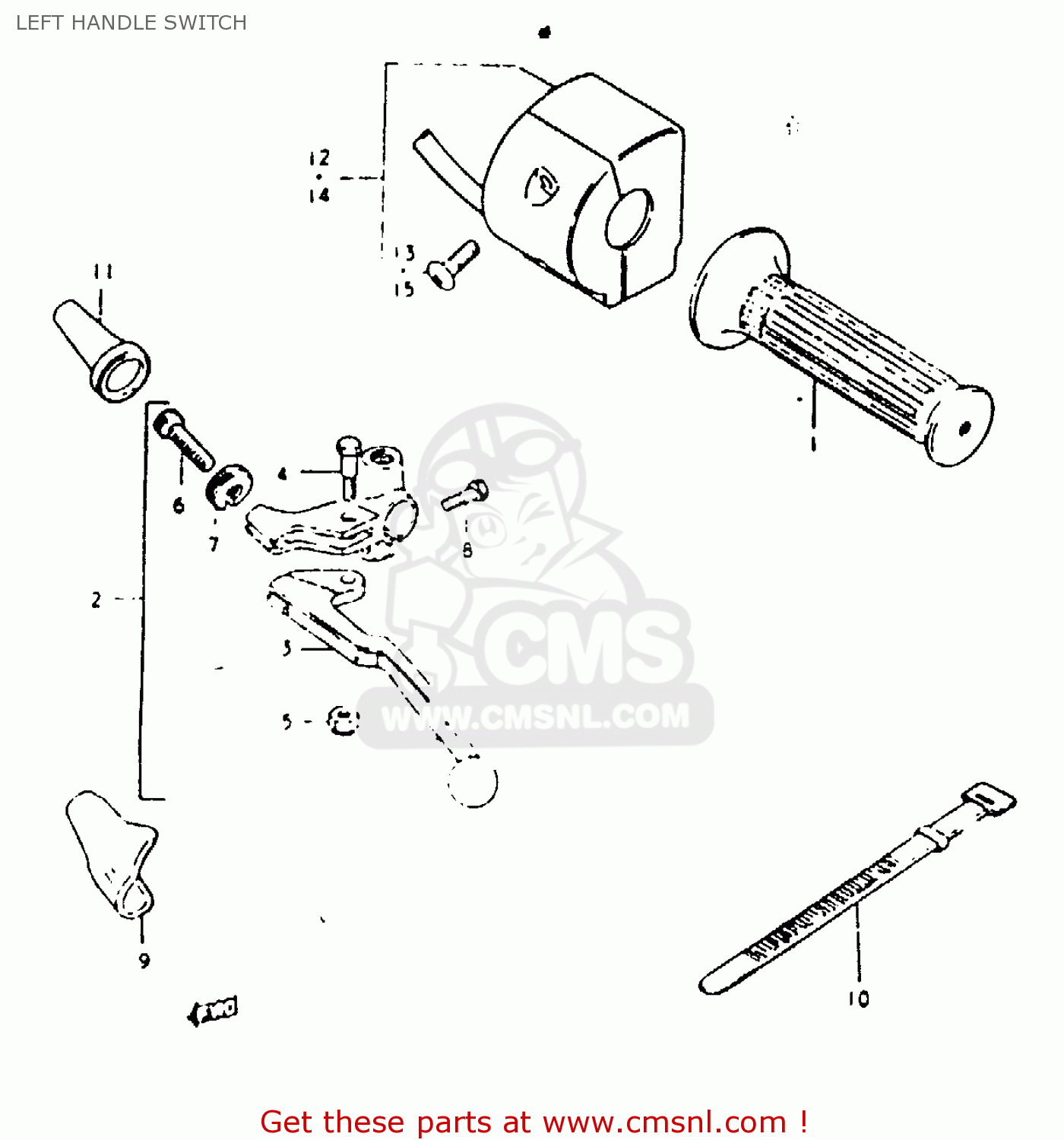

Left handle switch diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

LEFT HANDLE SWITCH GSX1100 1980 (T) GENERAL EXPORT (E01)
LEFT HANDLE SWITCH GSX1100 1980 (T) GENERAL EXPORT (E01)
LEFT HANDLE SWITCH GSX1100 1980 (T) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5721145010
ref: 1
GRIP,LEFT
5721145010
€ 26.50
2
5750049101
ref: 2
LEVER ASSY, CLUTCH
€ 49.50
3
5762049101
ref: 3
LEVER,CLUTCH
5762049101
€ 28.50
4
5743111011
ref: 4
BOLT,LEVER
5743111011
€ 6.00
5
0831921068
ref: 5
NUT 6MM
0831921068
€ 2.00
6
5744111010
ref: 6
ADJUSTER,CABLE
5744111010
€ 8.00
7
5744211010
ref: 7
NUT,CABLE ADJUSTER
5744211010
€ 4.00
8
0110706208
ref: 8
BOLT
0110706208
€ 2.00
9
5766131000
ref: 9
COVER,CLUTCH LEVER
5766131000
€ 5.50
10
0940712402
ref: 10
CLAMP(L:120)
0940712402
€ 3.00
11
5827331000
ref: 11
BOOT,CLUTCH CABLE
5827331000
€ 2.50
12
3740049210
ref: 12
SWITCH ASSY, HANDLE LH
€ 165.00
13
0211205168
ref: 13
SCREW
0211205168
€ 2.50
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
