TRANSMISSION
GSX1100 1980 (T) GENERAL EXPORT (E01)

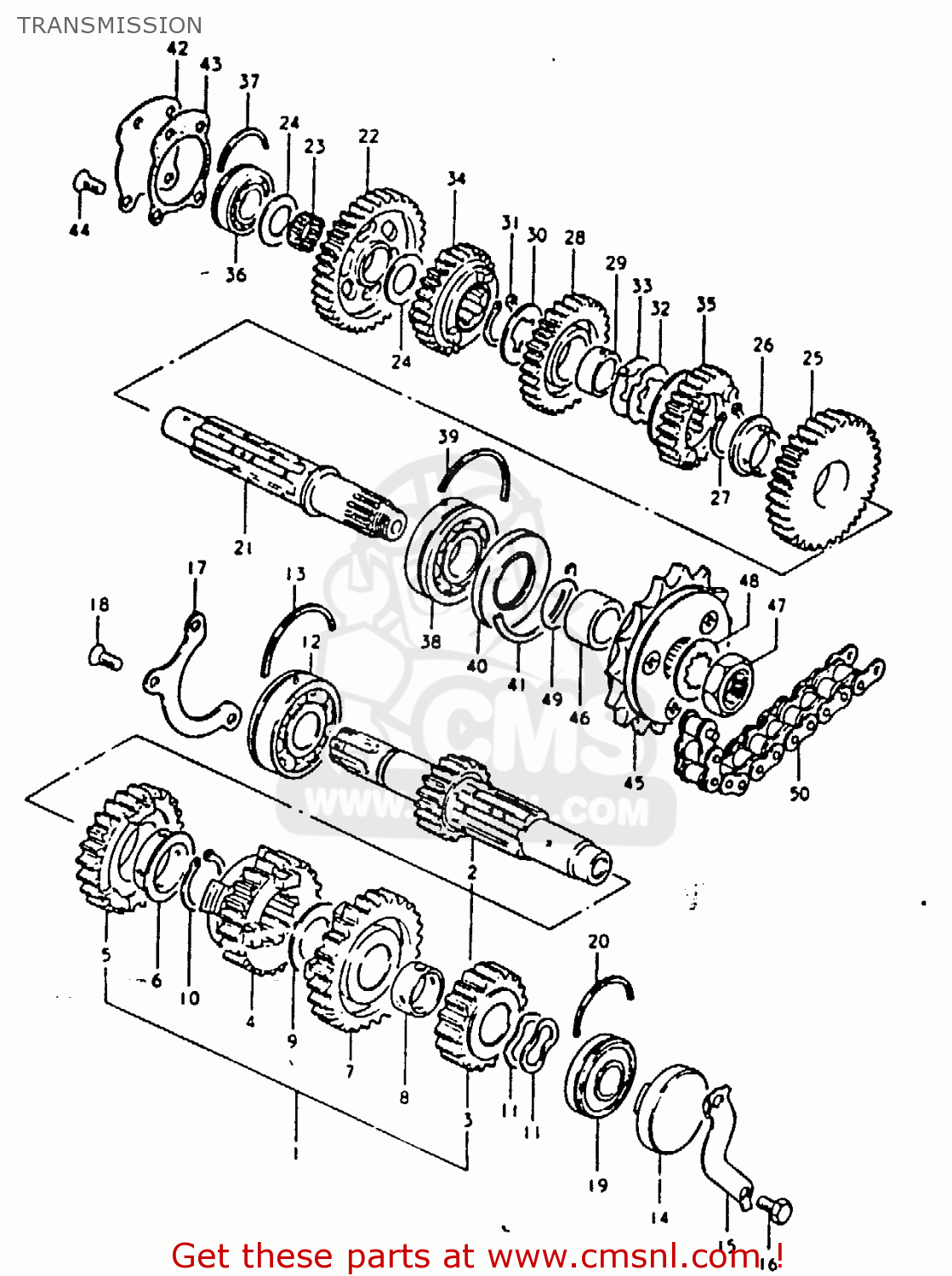

Transmission diagram GSX1100 1980 (T) GENERAL EXPORT (E01)
TRANSMISSION GSX1100 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2412049200
ref: 1
SHAFT,COUNTER
€ 169.00
2
2410049820
ref: 2
SHAFT,COUNTER
€ 207.50
3
2422149200
ref: 3
GEAR,SECOND DRIVE
€ 118.50
4
2423149200
ref: 4
GEAR,3RD DRIVE(NT:21)
€ 112.50
5
2424149200
ref: 5
GEAR,FOURTH DRIVE
€ 125.50
6
0930128001
ref: 6
BUSH(28X32X2)
€ 19.50
7
2425149200
ref: 7
GEAR,FIFTH DRIVE
€ 207.00
8
0930022005
ref: 8
BUSHING
€ 19.50
9
0821122321
ref: 9
WASHER
€ 3.00
10
0833111289
ref: 10
CIRCLIP
€ 2.50
11
0916420004
ref: 11
WASHER
€ 5.00
12
0926225051
ref: 12
BEARING(25X62X17)
€ 59.50
13
0939062006
ref: 13
C-RING
€ 5.00
14
0924147004
ref: 14
PLUG
€ 12.00
15
2311745000
ref: 15
RETAINER,CL PUSH ROD OIL SEAL
€ 14.00
16
0110706128
ref: 16
BOLT
€ 2.00
17
2474145000
ref: 17
RETAINER,CNTR SHAFT BEARING
€ 8.00
18
0212206168
ref: 18
SCREW
€ 2.00
19
0926220044
ref: 19
BEARING(20X47X14)
€ 30.00
20
0939047003
ref: 20
C RING
€ 3.00
21
2413149200
ref: 21
TO 24131-49201
SHAFT,DRIVE
€ 289.00
22
2431149200
ref: 22
GEAR,FIRST DRIVEN (NT:35)
€ 115.00
23
0926320018
ref: 23
BEARING(20X24X10).8
€ 14.00
24
0821120341
ref: 24
WASHER
€ 2.00
25
2432149200
ref: 25
GEAR,SECOND DRIVEN
€ 127.00
26
0930128001
ref: 26
BUSH(28X32X2)
€ 19.50
27
0833111289
ref: 27
CIRCLIP
€ 2.50
28
2433149200
ref: 28
GEAR,THIRD DRIVEN
€ 139.50
29
2433249000
ref: 29
BUSH,3RD DRIVEN GEAR
€ 13.50
30
0916728001
ref: 30
WASHER,LOCK
€ 3.00
31
0833111289
ref: 31
CIRCLIP
€ 2.50
32
0916728002
ref: 32
WASHER,LOCK
€ 3.00
33
0916928001
ref: 33
WASHER
€ 3.00
34
2434149200
ref: 34
GEAR,FOURTH DRIVEN
€ 118.50
35
2435149200
ref: 35
GEAR,FIFTH DRIVEN
€ 139.50
36
0926220041
ref: 36
BEARING
€ 30.00
37
0939047003
ref: 37
C RING
€ 3.00
38
0926225051
ref: 38
BEARING(25X62X17)
€ 59.50
39
0939062006
ref: 39
C-RING
€ 5.00
40
0928332012
ref: 40
SEAL,OIL(32X62X7)
€ 19.00
41
0939062008
ref: 41
C RING
€ 3.50
42
2476145000
ref: 42
PLATE,DRIVE SHAFT
€ 4.50
43
2476245000
ref: 43
GASKET,DRIVESHAFT PLATE (MCA)
€ 2.50
44
0212206168
ref: 44
SCREW
€ 2.00
45
2751049001
ref: 45
SPROCKET,ENGINE
€ 62.50
46
0918025052
ref: 46
SPACER(25X32X18.6)
€ 9.00
47
0915920001
ref: 47
NUT
€ 12.00
48
0916725014
ref: 48
WASHER
€ 2.50
49
0928025001
ref: 49
O RING(D:1,ID:24.5)
€ 2.50
50
2760049210
ref: 50
TO 27600-49220
CHAIN,DRIVE(DID630YL,96LE)
€ 266.50
