REAR FENDER
GSX1100 1980 (T) GENERAL EXPORT (E01)

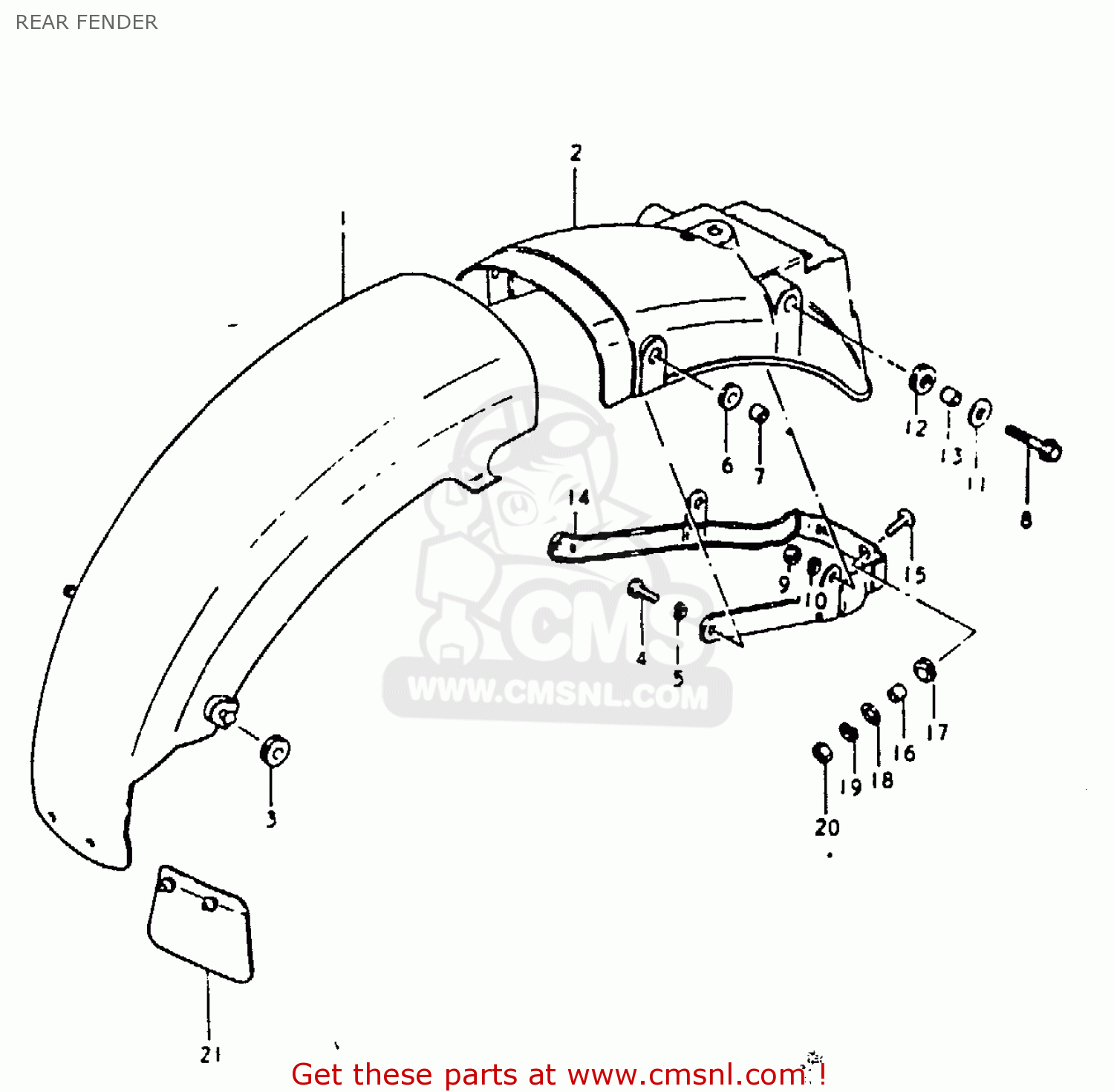

Rear fender diagram GSX1100 1980 (T) GENERAL EXPORT (E01)
REAR FENDER GSX1100 1980 (T) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
6311249001
ref: 1
FENDER,REAR
€ 82.50
2-1
6311349200291
ref: 2-1
GSX1100ET, EX
BODY,REAR FENDER,REAR
€ 91.50
2-2
6311349000291
ref: 2-2
GSX1100T
BODY,RR FENDER RR
€ 80.50
2-3
NOTUSED
ref: 2-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0932008013
ref: 3
CUSHION
€ 4.00
4
0110706208
ref: 4
BOLT
€ 2.00
5
0832121068
ref: 5
LOCK WASHER
€ 2.50
6
0932008007
ref: 6
CUSHION
€ 4.00
7
0918006038
ref: 7
SPACER(6.1X9X7.5)
€ 2.00
8
0151708358
ref: 8
BOLT
€ 3.50
9
0831012088
ref: 9
NUT
€ 2.00
10
0832121088
ref: 10
LOCK WASHER
€ 2.00
11
0916008032
ref: 11
WASHER(8.5X26X1.2)
€ 3.50
12
0932012011
ref: 12
CUSHION
€ 3.00
13
0918008021
ref: 13
SPACER (8.2X12X7.5)
€ 3.00
14
6312049000
ref: 14
REINFORCEMENT,REAR FENDER
€ 28.50
15
0214206207
ref: 15
SCREW
€ 2.00
16
0918006011
ref: 16
SPACER (6.1X9X9)
€ 2.00
17
0932008013
ref: 17
CUSHION
€ 4.00
18
0916006012
ref: 18
WASHER(6,5X22X1.6)
€ 2.00
19
0832121068
ref: 19
LOCK WASHER
€ 2.50
20
0831011068
ref: 20
NUT
€ 2.50
21
6341131900
ref: 21
GUIDE,RR FENDER MUD
€ 8.00
