REAR MASTER CYLINDER (GSX1100ET, GSX1100T)

GSX1100 1980 (T) GENERAL EXPORT (E01)

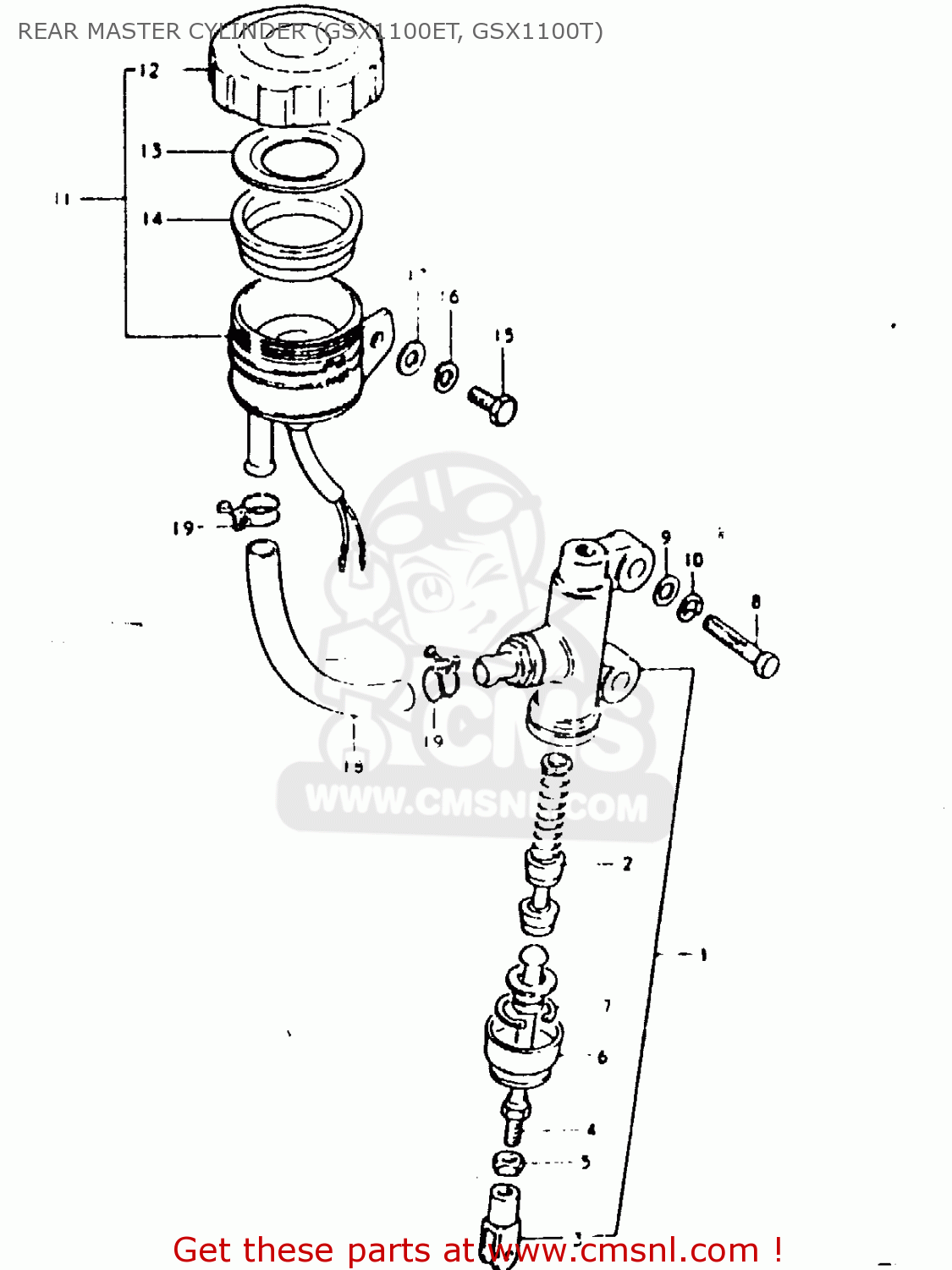

Rear master cylinder (gsx1100et, gsx1100t) diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

REAR MASTER CYLINDER (GSX1100ET, GSX1100T) GSX1100 1980 (T) GENERAL EXPORT (E01)

REAR MASTER CYLINDER (GSX1100ET, GSX1100T) GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

6960047001
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

2

6960045810
ref: 2

PISTON/CUP SET

€ 53.00

3

6969245001
ref: 3

YOKE

€ 11.00

4

6967045000
ref: 4

ROD,PUSH

€ 18.50

5

0831012088
ref: 5

NUT

€ 2.00

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0110708308
ref: 8

BOLT (8X30)

€ 2.50

9

0832211088
ref: 9

WASHER

€ 2.00

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

6974049100
ref: 11

RESERVOIR TANK ASSY

€ 0.00

12

5966918605
ref: 12

CAP

€ 16.50

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15

0110706128
ref: 15

BOLT

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00

18

6973147000
ref: 18

HOSE,RESERVOIR TANK

€ 34.00

19

0940016301
ref: 19

CLAMP

€ 4.50
