CYLINDER HEAD COVER

GSX1100 1980 (T) GENERAL EXPORT (E01)

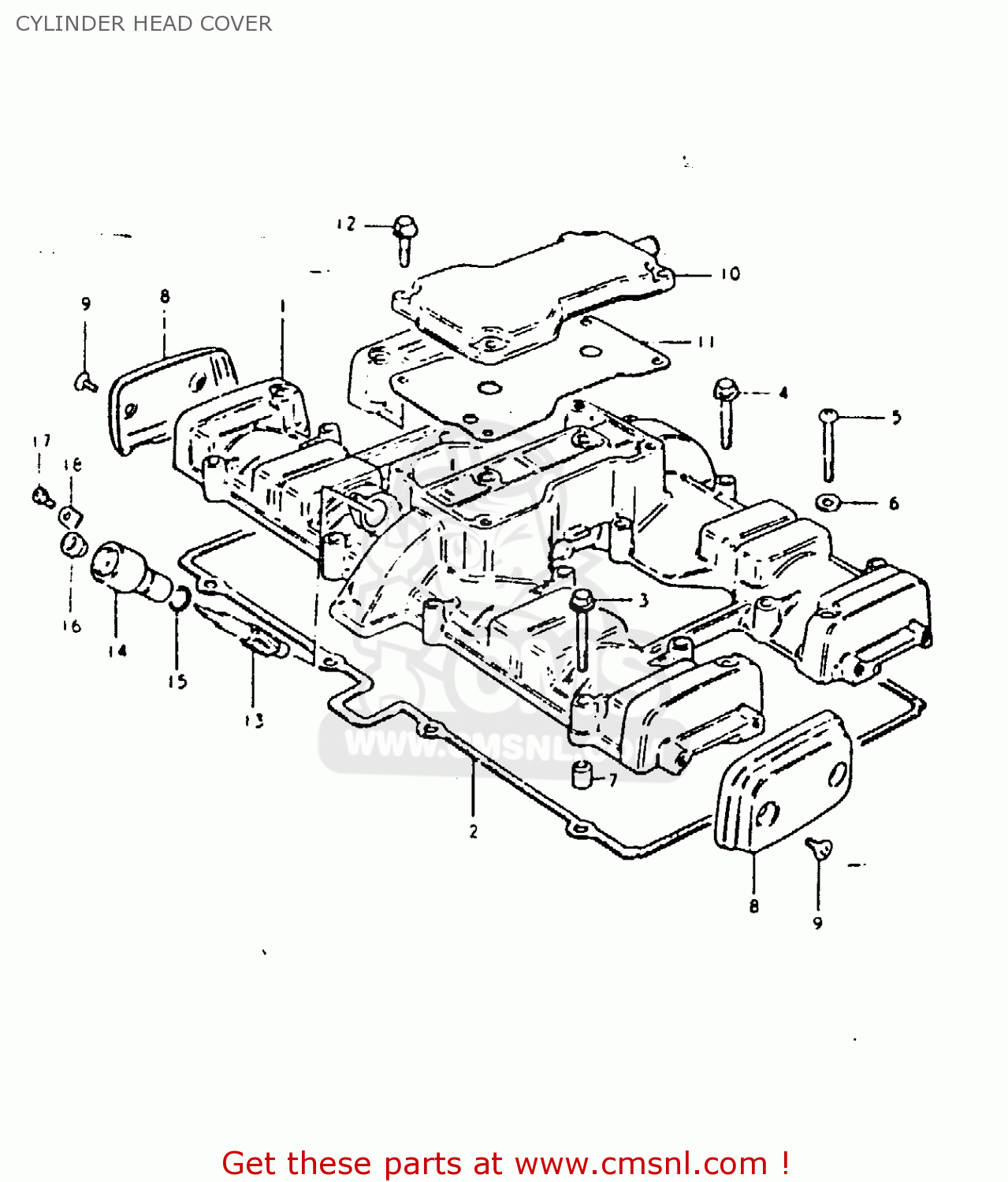

Cylinder head cover diagram GSX1100 1980 (T) GENERAL EXPORT (E01)

CYLINDER HEAD COVER GSX1100 1980 (T) GENERAL EXPORT (E01)

CYLINDER HEAD COVER GSX1100 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1117149202
ref: 1

COVER,CYLINDER HEAD

€ 138.50

2

1117349203
ref: 2
FROM 11173-49202

GASKET,CYLINDER HEAD COVER (MCA)

€ 68.50

3

0151706408
ref: 3

BOLT

€ 2.50

4

0151706358
ref: 4

BOLT 6X35

€ 2.50

5

0215206408
ref: 5

SCREW 6X40

€ 3.00

6

0916806009
ref: 6

GASKET (NAS)

€ 2.00

7

0920608001
ref: 7

PIN(6.2X8X11)

€ 2.00

8

1119011400
ref: 8
FROM 11174-49201

UNION,CYLINDER HEAD OIL

€ 28.50

9

0213205127
ref: 9

SCREW 5X12

€ 2.50

10

1117649200
ref: 10

COVER,BREATHER

€ 22.50

11

1117749200
ref: 11

GASKET (MCA)

€ 12.50

12

0151706208
ref: 12

BOLT,REAR

€ 2.50

13

2643149200
ref: 13
NT:10

GEAR,TACHOMETER DRIVEN

€ 40.00

14

2644145000
ref: 14

SLEEVE,TACHOMETER DRIVE

€ 18.00

15

2645145000A
ref: 15

SEAL,TACHOMETER DRIVEN

€ 4.50

16

0928905002
ref: 16

SEAL,OIL(5X12X8)

€ 11.00

17

0912805101
ref: 17

SCREW(5X12)

€ 1.50

18

2644933000
ref: 18

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50
