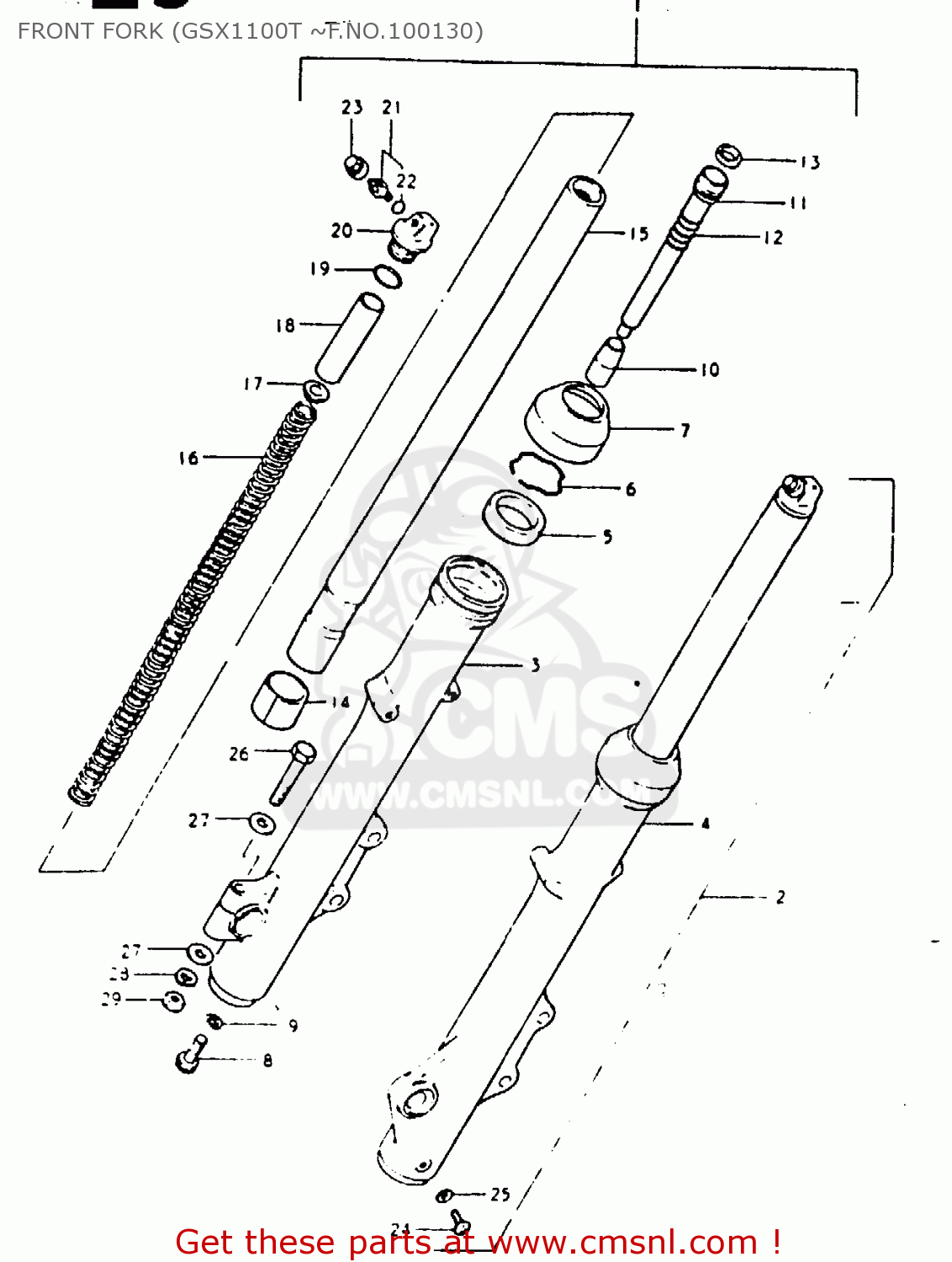

FRONT FORK (GSX1100T ~F.NO.100130)

ref

part #

description

quantity

1

5110349250
ref: 1

DAMPER ASSY, RH

€ 0.00

2

5110449250
ref: 2

DAMPER ASSY, LH

€ 0.00

3

5113049130
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 130.00

4

5114049130
ref: 4

TUBE,OUTER,LEFT

€ 193.50

5

5115349000
ref: 5

OIL SEAL,FRONT FORK

€ 16.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5117349002
ref: 7

SEAL,DUST

€ 13.00

8

5114716510
ref: 8

BOLT,FORK CYLINDER(10X25)

€ 3.50

9

5114841310
ref: 9

GASKET (NAS)

€ 2.50

10

5119549071
ref: 10

PIECE,OIL LOCK

€ 12.00

11

5114649250
ref: 11

CYLINDER

€ 0.00

12

5117749200
ref: 12

SPRING,FORK REBOUND

€ 7.00

13

5119649000
ref: 13

RING,PISTON

€ 9.00

14

5112149200
ref: 14

PISTON

€ 18.00

15

5111049240
ref: 15

INNER TUBE

€ 0.00

16

5117149250
ref: 16

SPRING

€ 0.00

17

5117238010
ref: 17

GUIDE,FRONT FORK SPRING C

€ 9.50

18

5117641211
ref: 18

SPACER,FRONT FORK SPRING

€ 4.00

19

5111716310
ref: 19

O RING

€ 4.50

20

5135141211
ref: 20

CAP

€ 41.00

21

5129349001
ref: 21

VALVE

€ 18.00

22

5111741211
ref: 22

O RING

€ 6.50

23

5129449000
ref: 23

CAP,VALVE

€ 22.50

24

0211204088
ref: 24

SCREW

€ 1.50

25

5118303010
ref: 25

GASKET,DRAIN,PLUG (NAS)

€ 3.00

26

0110708508
ref: 26

BOLT 8X50

€ 3.00

27

0832221088
ref: 27

WASHER

€ 2.00

28

0832131088
ref: 28

WASHER,LOCK,8.

€ 2.00

29

0831012088
ref: 29

NUT

€ 2.00
