CAM CHAIN
GSX1300R HAYABUSA 2012 (L2) USA (E03)

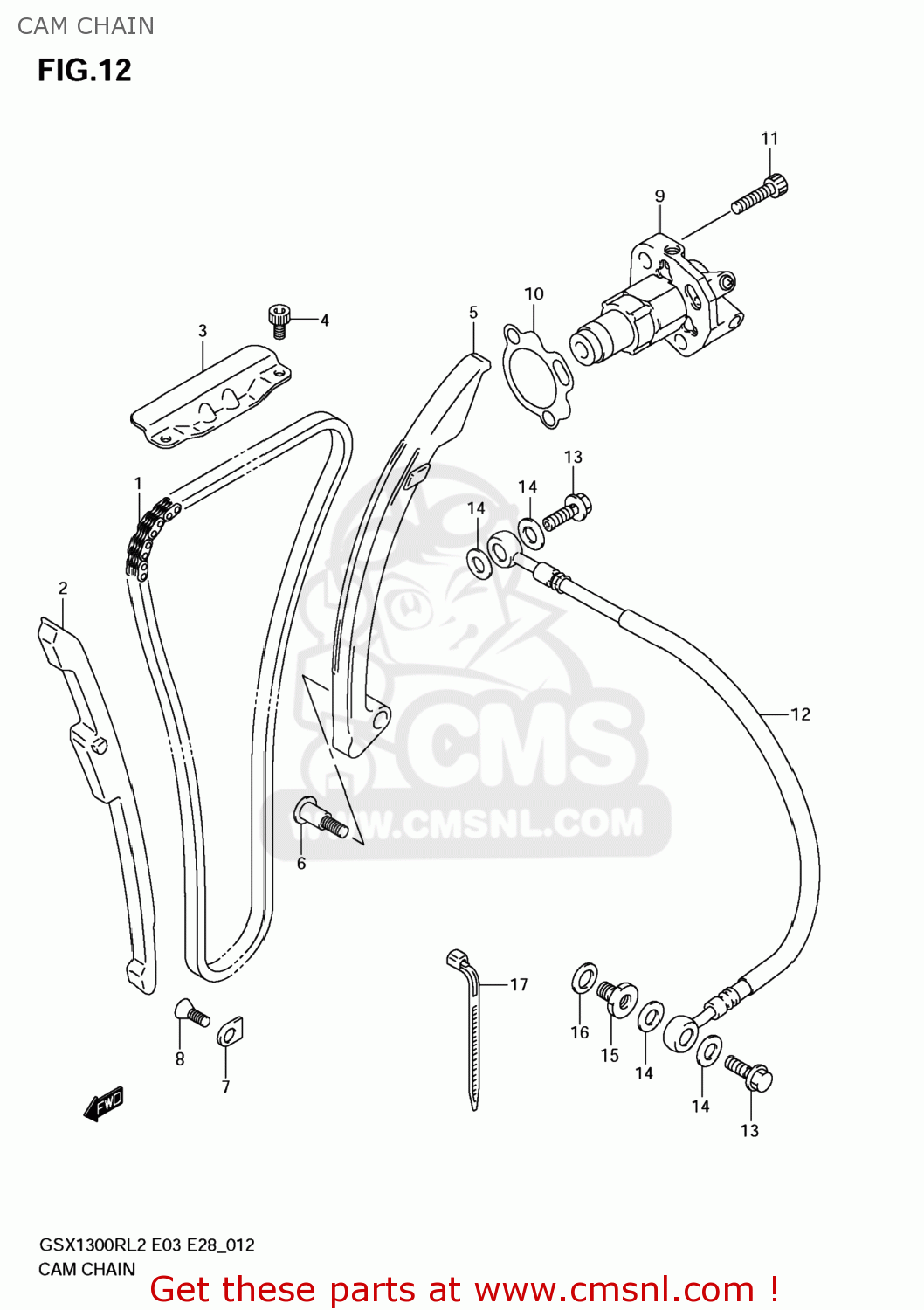

Cam chain diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)
CAM CHAIN GSX1300R HAYABUSA 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276024F01
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 119.50
2
1277115H00
ref: 2
GUIDE,CAM CHAIN NO.1
€ 31.50
3
1278224F01
ref: 3
GUIDE,CAM CHAIN NO.2
€ 29.50
4
071300612A
ref: 4
BOLT
€ 2.50
5
1281115H00
ref: 5
TENSIONER,CAM CHAIN
€ 45.50
6
1281231G00
ref: 6
BOLT,CAM CHAIN TENSIONER
€ 4.00
7
1277324F00
ref: 7
RETAINER,CAM CHAIN GUIDE NO.1
€ 2.00
8
021220612A
ref: 8
SCREW
€ 3.00
9
1283015H00
ref: 9
ADJUSTER ASSY,TENSIONER
€ 155.50
10
1283702H00
ref: 10
GASKET,TENSIONER ADJUSTER (NAS)
€ 7.00
11
071300625A
ref: 11
BOLT
€ 2.50
12
1283515H00
ref: 12
HOSE,CAM CHAIN TNSN ADJ OIL
€ 56.00
13
1283815H00
ref: 13
BOLT,ADJ OIL HOSE UNION
€ 4.50
14
0916808034
ref: 14
GASKET(7.8X13.5X1.2) (NAS)
€ 2.00
15
1283915H00
ref: 15
PLUG,ADJ OIL HOSE UNION
€ 9.00
16
0916814002
ref: 16
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
17
0940718402
ref: 17
CLAMP(L:165)
€ 2.50
