CYLINDER
GSX1300R HAYABUSA 2012 (L2) USA (E03)

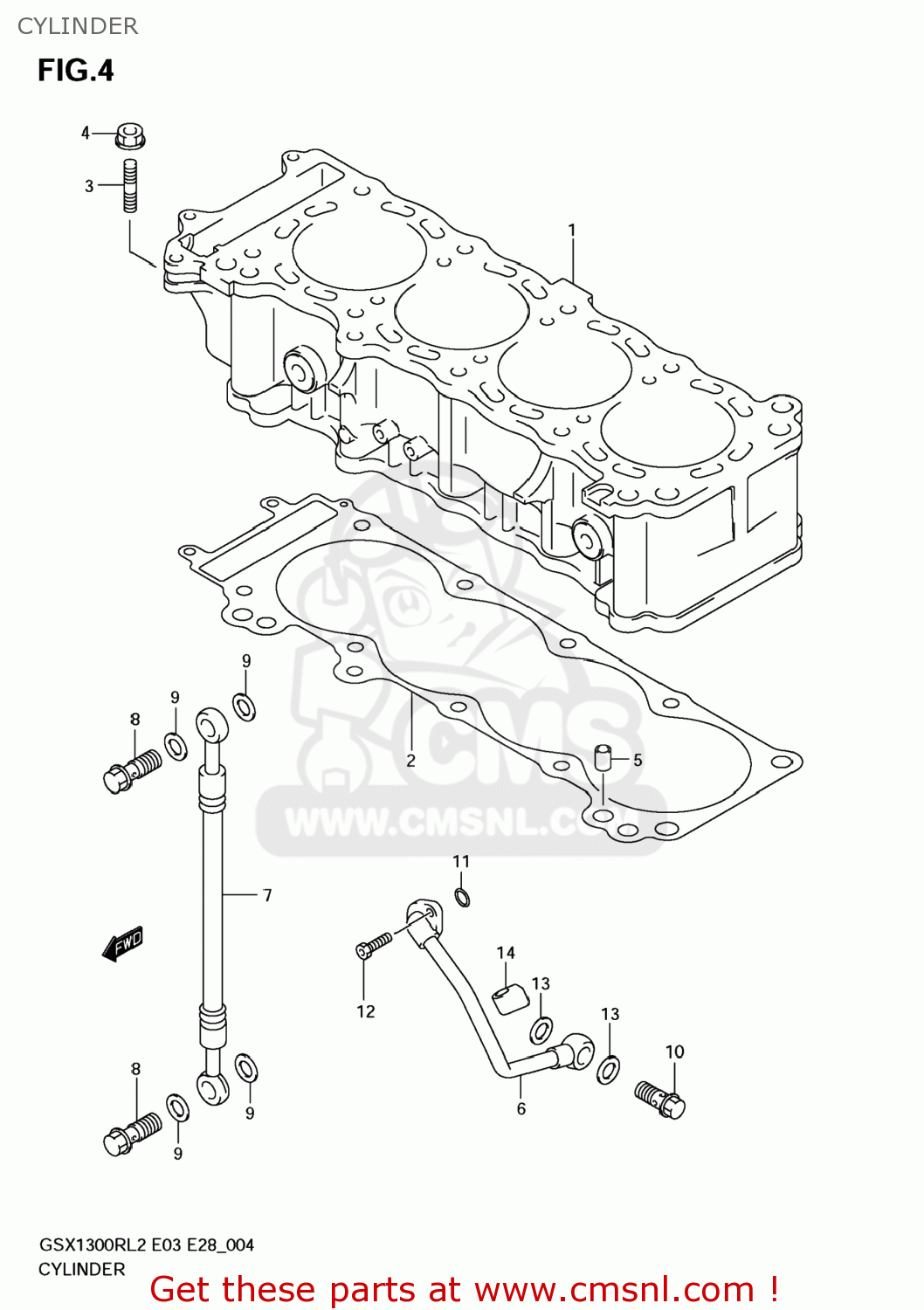

Cylinder diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)
CYLINDER GSX1300R HAYABUSA 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121015H000F0
ref: 1
CYLINDER
€ 1,202.50
2
1124115H00
ref: 2
GASKET,CYLINDER (NAS)
€ 45.50
3
014210625B
ref: 3
BOLT,STUD
€ 2.50
4
083161006B
ref: 4
NUT
€ 2.50
5
0421111169
ref: 5
PIN
€ 2.00
6
1128024F00
ref: 6
PIPE,CRANKCASE OIL
€ 45.00
7
1128224F00
ref: 7
HOSE,CYLINDER HEAD OIL
€ 70.50
8
0936010062
ref: 8
BOLT UNION
€ 5.00
9
0916810007
ref: 9
GASKET(10.1X16X1) (NAS)
€ 2.00
10
0936014012
ref: 10
BOLT UNION
€ 10.00
11
0928012012
ref: 11
O RING(D:2.4,ID:11.8)
€ 5.00
12
0910606073
ref: 12
BOLT(6X16)
€ 2.50
13
0916814015
ref: 13
GASKET(14X20X1.5) (NAS)
€ 1.50
14
1128324F00
ref: 14
CUSHION,CRANKCASE DIL PIPE
€ 4.50
